Tin Knocker 4 foot Box & Pan Brake, 16 gauge

Name: Tin Knocker 4 foot Box & Pan Brake, 16 gauge
Brand: Tin Knocker
SKU: TKBP1648
Price: 2250.00 USD
Availability: InStock

Part #: TKBP1648
Model: 1648
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,250.00

NEW

Easily adjusted
Removable apron insert
Includes apron stop
Heavy steel construction

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

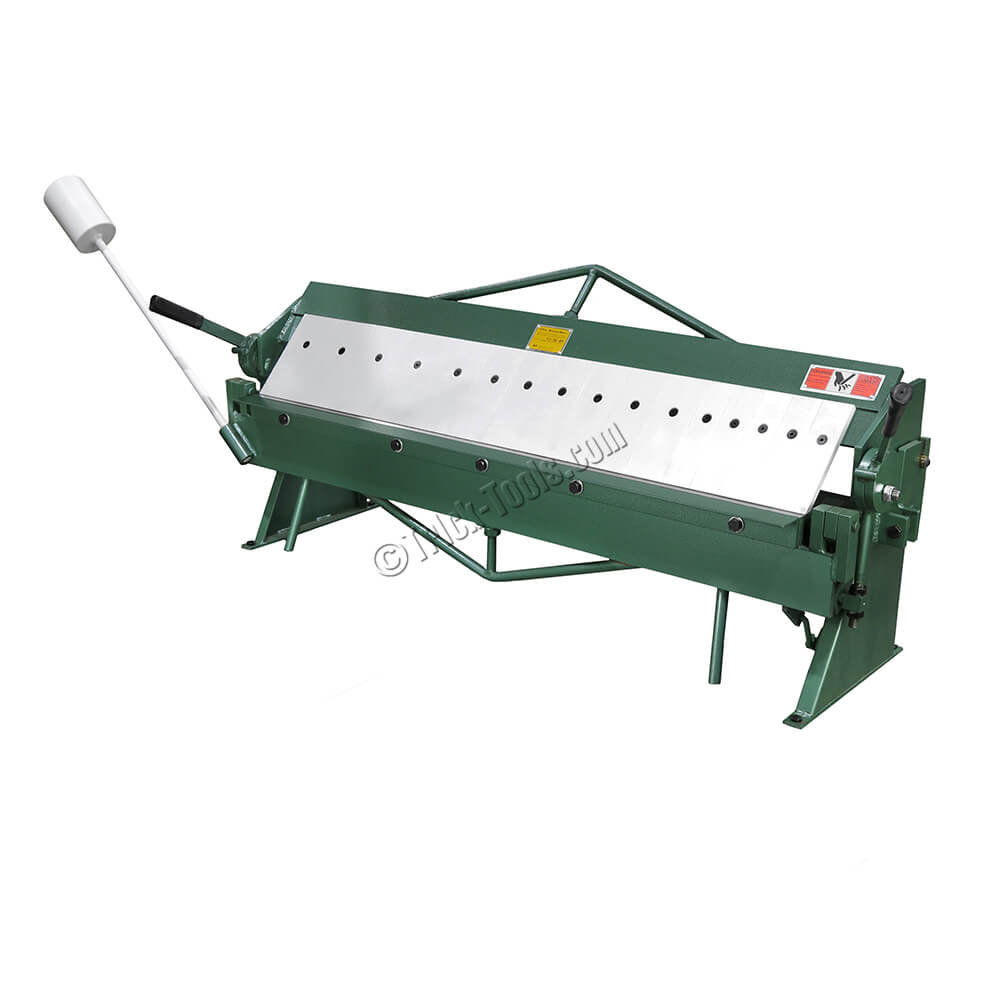

Box & Pan Brakes are an essential tool for any fabrication or HVAC shop. The Tin Knocker 4 foot bench top box and pan brake is a well made affordable option that can bend up to 16 gauge mild steel at 48 inches. It includes a mix of 2, 3, and 4 inch fingers for adjustability and can bend up to a 4 inch depth of box.

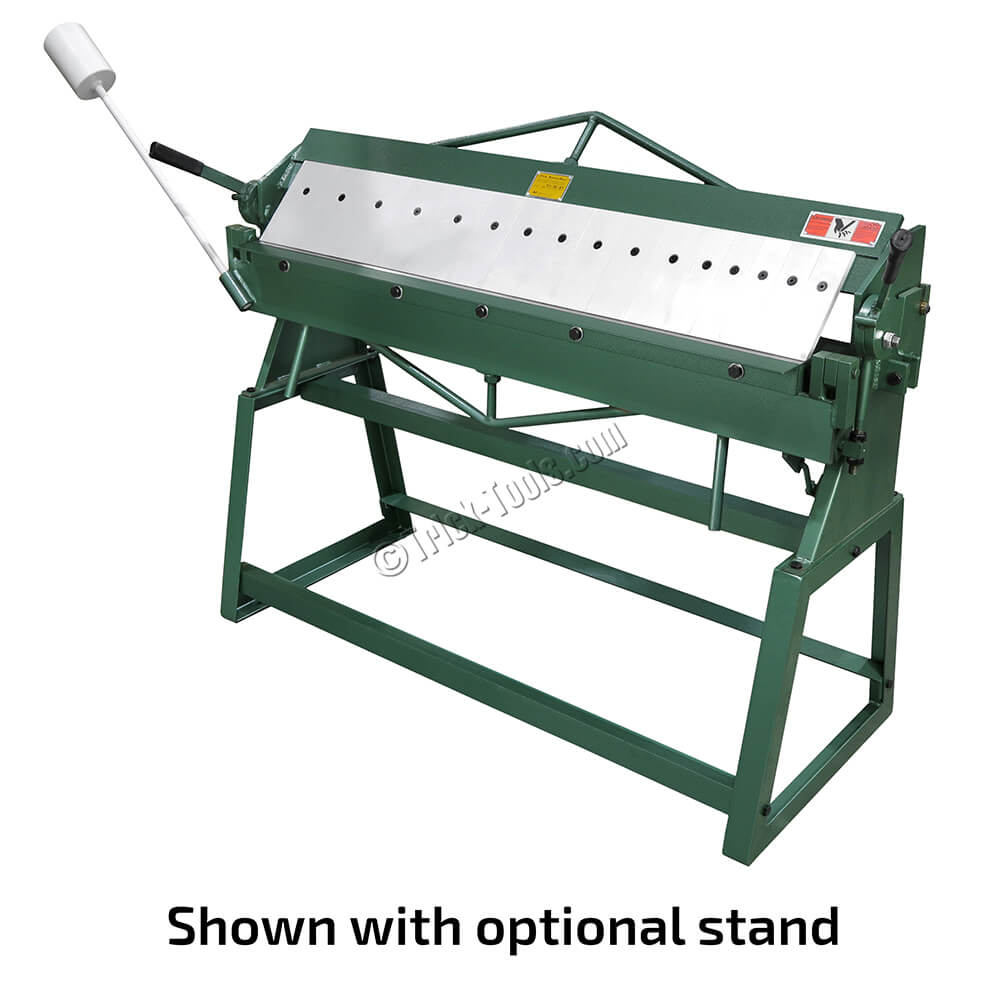

Included with this brake is a counterweight to assist when bending and and apron stop for making repeatable bends. The compact size makes it great for mounting on a workbench or pair it with the optional stand (available under the accessories tab) for a free standing brake at a comfortable work height.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 48
•Max Depth Of Box (inches): 4
•Max Lift Of Beam (inches): 1.25
•Front To Rear Adj (inches): .625
•Min Reverse Bend (inches): .25
•Minimum Flange Capacity (inches): 1
•Number/Width Of Fingers: 2, 3, 4 inch
•Max Forming Length (inches): 48-1/4
•Weight (pounds): 493
•Dimensions (LxWxH): 64 x 28 x 32
