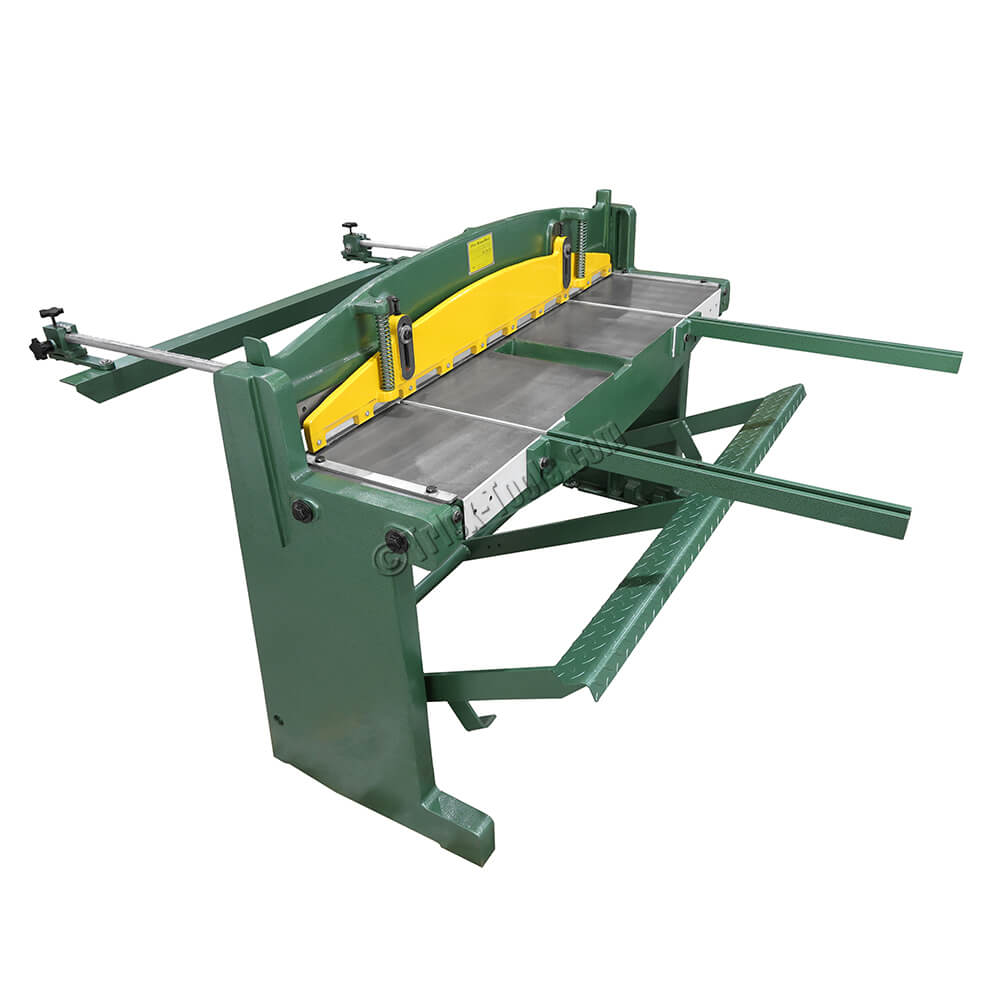

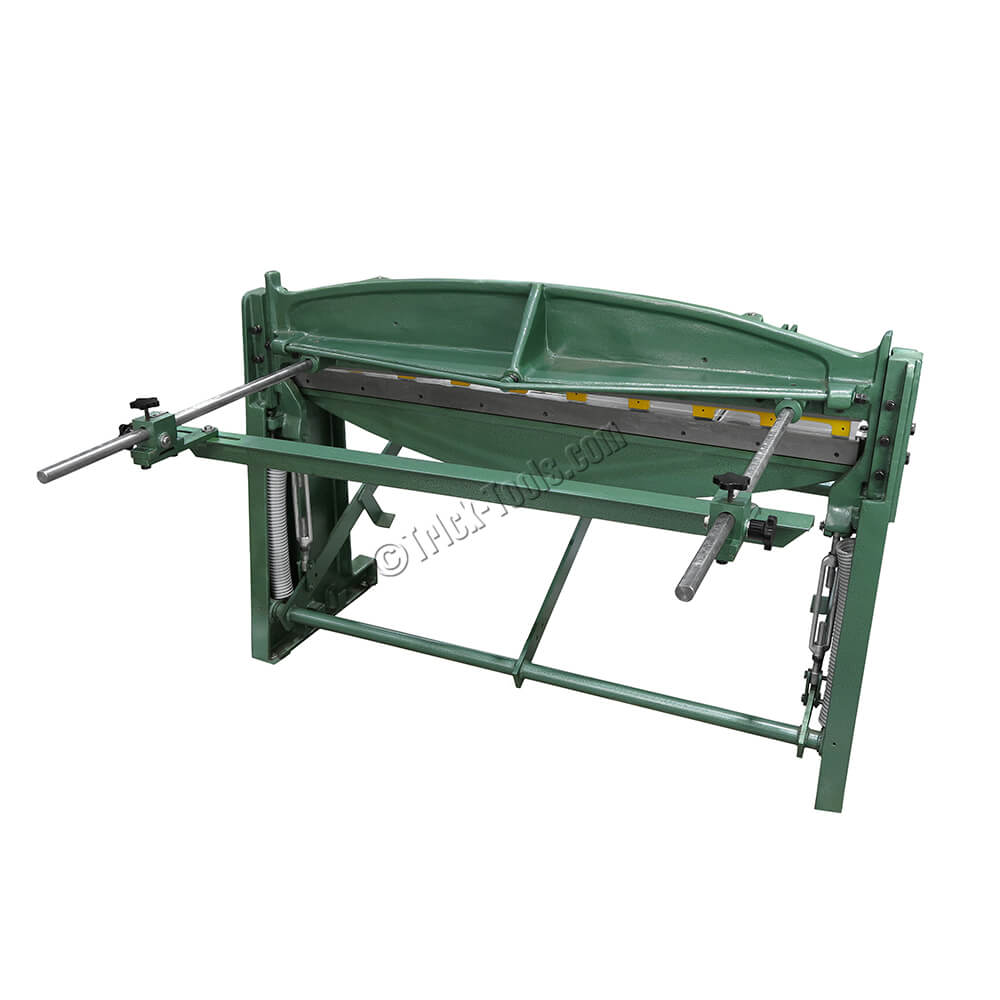

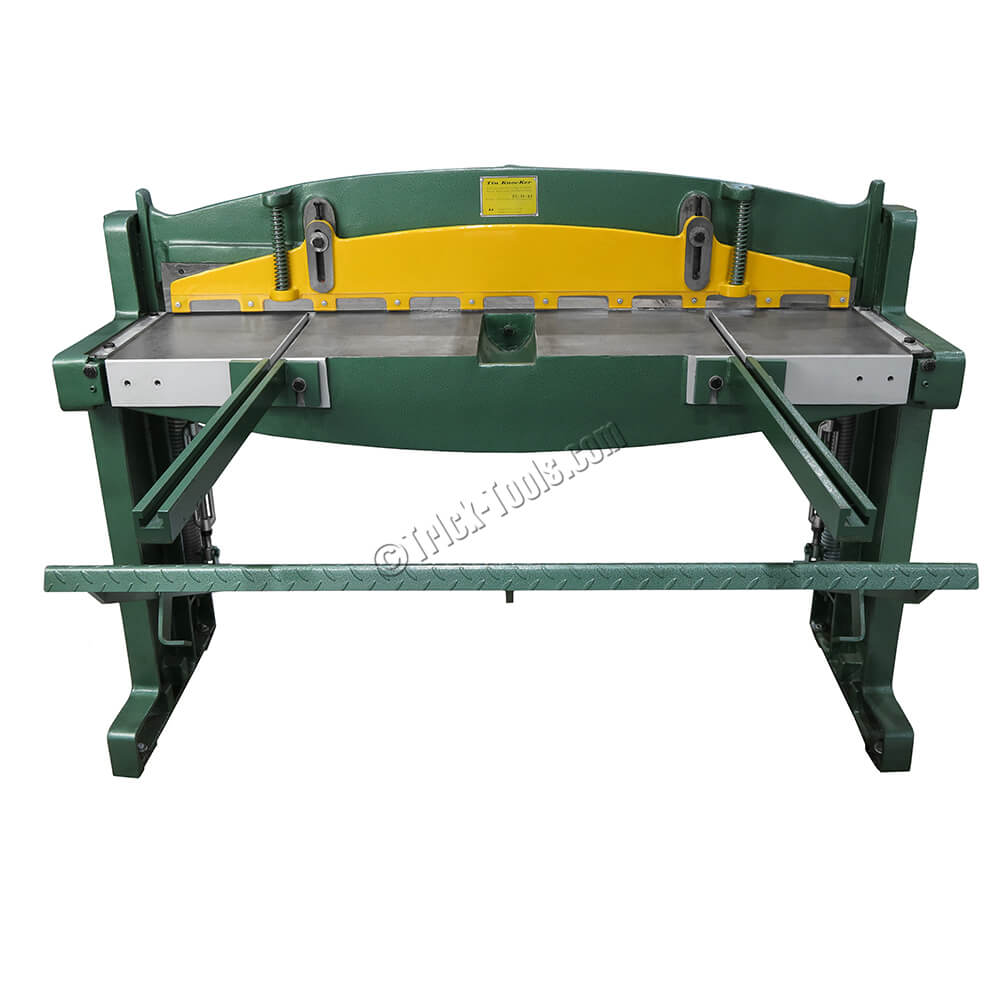

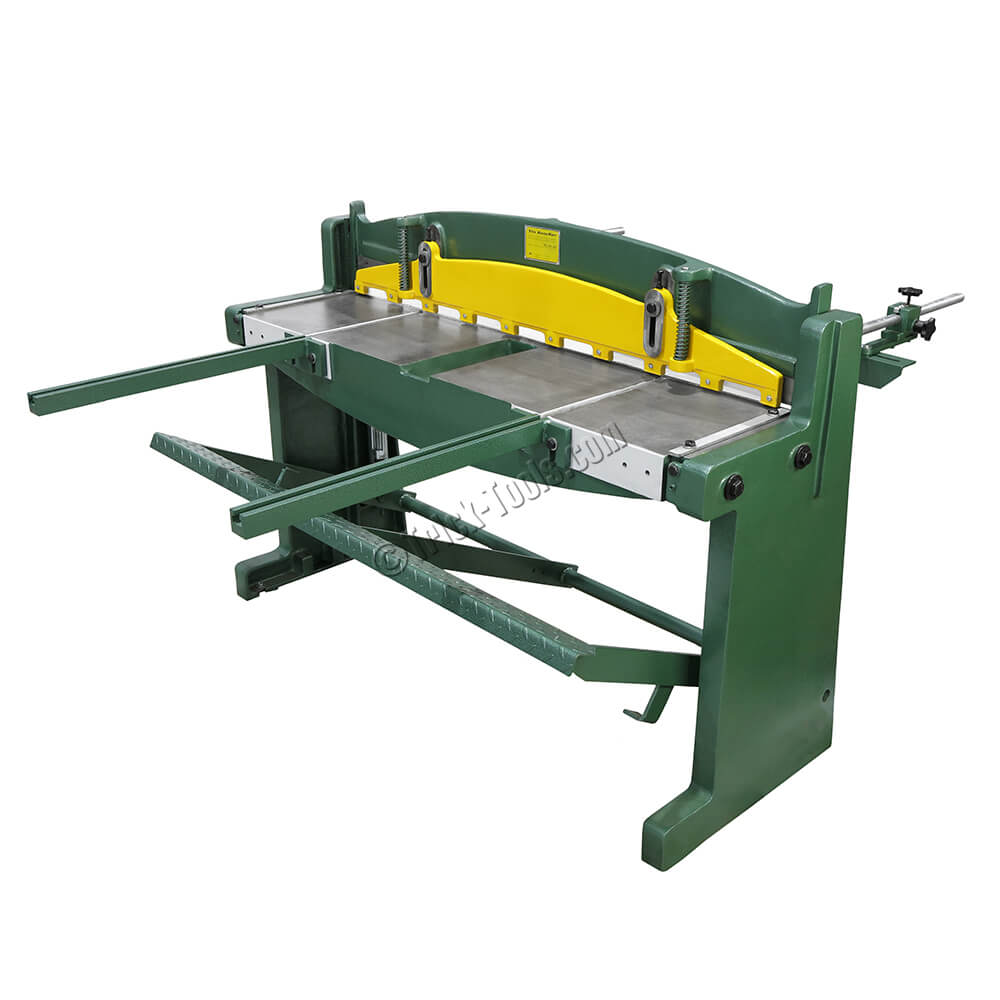

Tin Knocker 52 inch Foot Shear, 16 gauge

Name: Tin Knocker 52 inch Foot Shear, 16 gauge
Brand: Tin Knocker
SKU: TKSHEAR
Price: 3950.00 USD
Availability: InStock

Part #: TKSHEAR
Model: TK 1652
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,950.00

Heavy cast iron construction
Easily adjustable
Manual operation
Standard back gauge

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

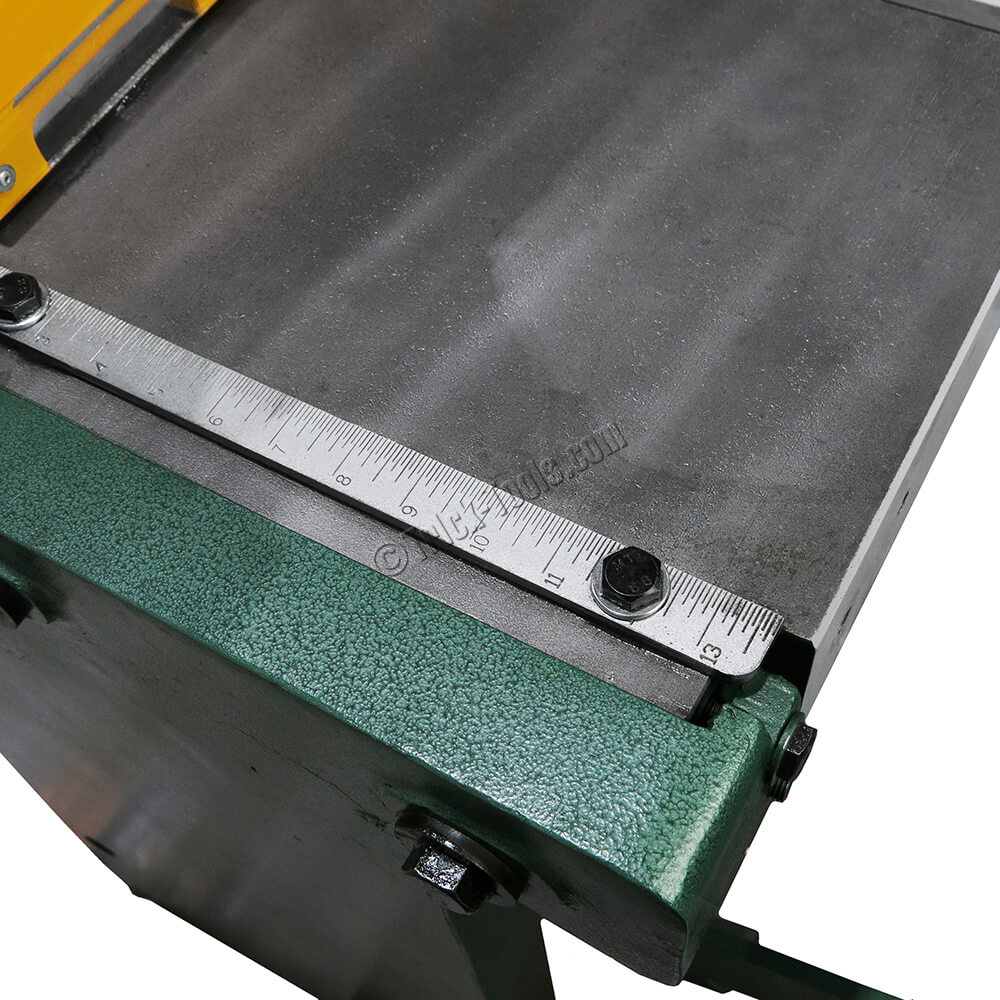

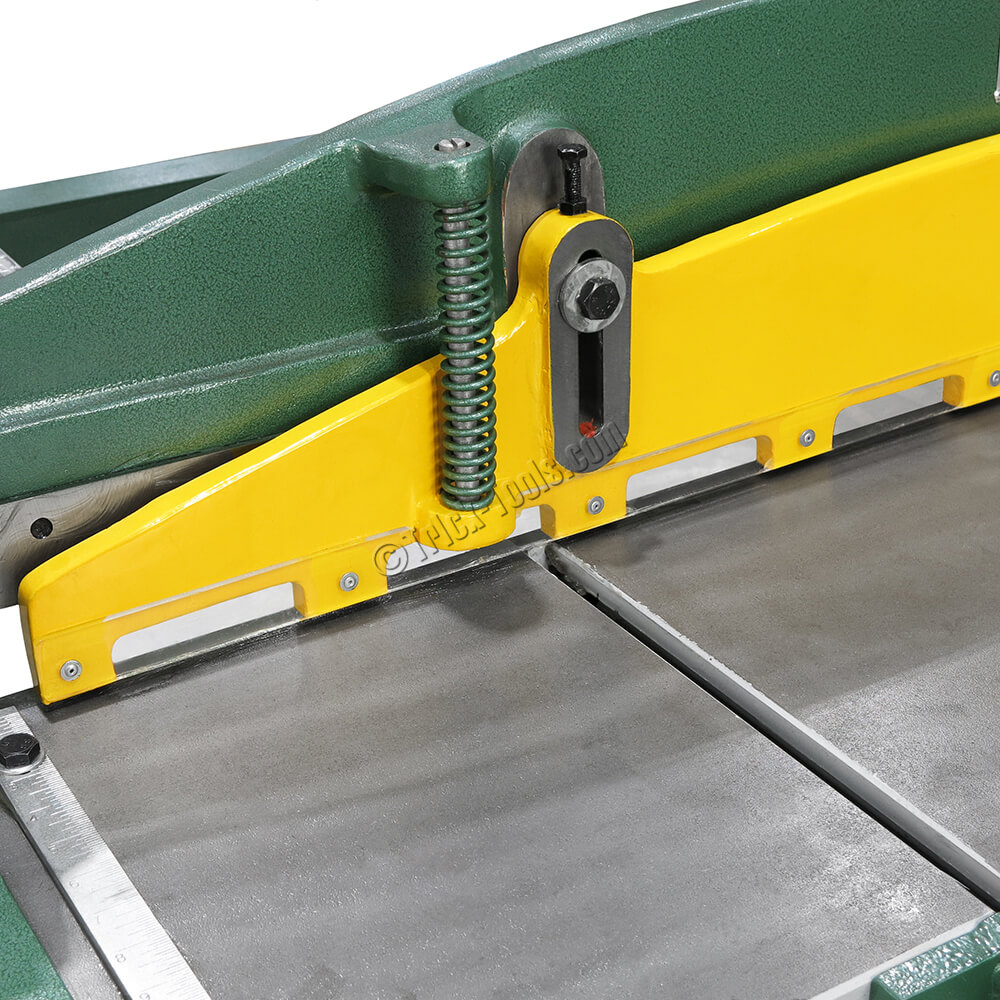

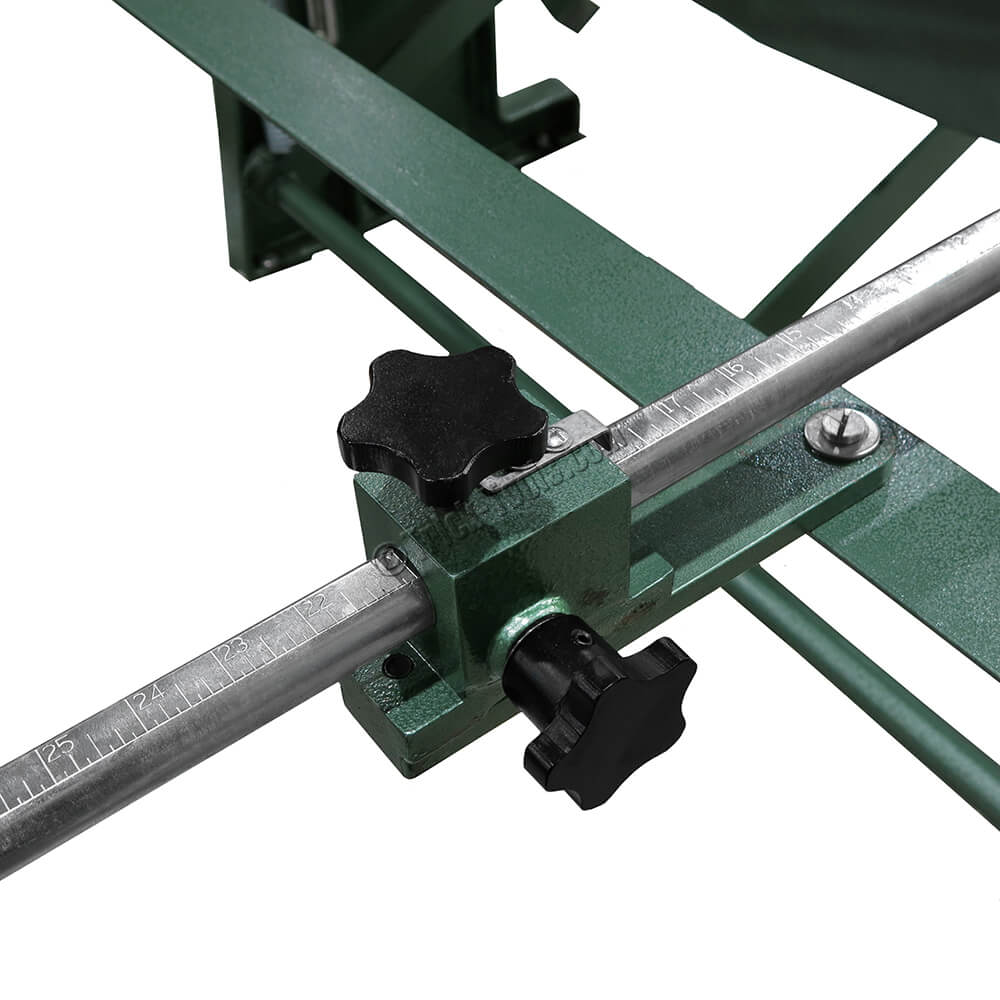

These Tin Knocker kick shears (sometimes called stomp shears or foot squaring shears) are activated manually by stepping on the foot pedal on the front of the machine. They feature ground-alloy tool steel blades machined with an edge relief for maximum material penetration with minimum effort. The lower shear blade is bed-adjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The upper blade can be flipped once to expose a new cutting surface before re-sharpening is needed. The spring-activated hold-down feet clamp the workpiece securely in place and are easily adjustable to compensate for holding pressure for light or heavy gauge material. There is ample clearance between the hold-down feet and shear blades to allow good operator vision for line-of-sight cutting. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives highly accurate readings.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Cutting Length (inches): 52
•Weight (pounds): 1215
•Dimensions (LxWxH): 60 x 36 x 43
