Siegmund Imperial 16 Welding Table Bundle, (2) 48 x 60 inch

Part #: US168135.X7.24
Ships From: Factory shipped
Lead Time: While supplies last - Closeout Item
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $15,993.00
Sale Price: $12,128.00
SALE
  • 117-Piece Bundle
  • Two 4x5 tables with 24 inch connecting squares
  • 1/2 inch thick work surface
  • 16mm holes spaced 2 inches apart
  • Nitride plasma finish for corrosion protection and anti-spatter
FREIGHT:
Freight
ORIGIN:
BRAND:
Siegmund logo
Options:
Quantity:

Configuration

DESCRIPTION

Siegmund System 16 tables utilize the engineering and accuracy of System 28 tables in a lighter duty version. The new Imperial tables feature an engraved inch scale and a 2-inch grid pattern to accelerate setup and eliminate the need to convert prints. These German constructed tables are built from hardened steel to begin with and then go through an additional plasma nitride process to harden the top work surface to a Vickers rating of more than 750.

The tables feature five fixturing surfaces constructed from 1/2 inch thick plate with additional reinforcement underneath the work surface. Fixture mounting holes are CNC machined to 16mm diameter, feature radiused edges, and are laid out in a square 2-inch grid. These tables feature a flatness rating of +/- .0025 inches per foot.

This kit includes a 117-piece fixture and layout bundle. Siegmund has a wide variety of additional clamps and fixturing components available to make these tables useful for virtually any welding project. See the Accessories tab for more information.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Capacity: Total static load based on even distribution per table
  • Standard Legs: 8,074 lbs
  • Caster Legs: 1034 lbs

Size: 60 x 60 inches
Flatness: +/- .0025 inches per foot
Finish: Nitrided
Hole diameter: 16mm
Hole spacing: 2 inch
Plate thickness: 1/2 inch
•Weight (pounds): 726 each

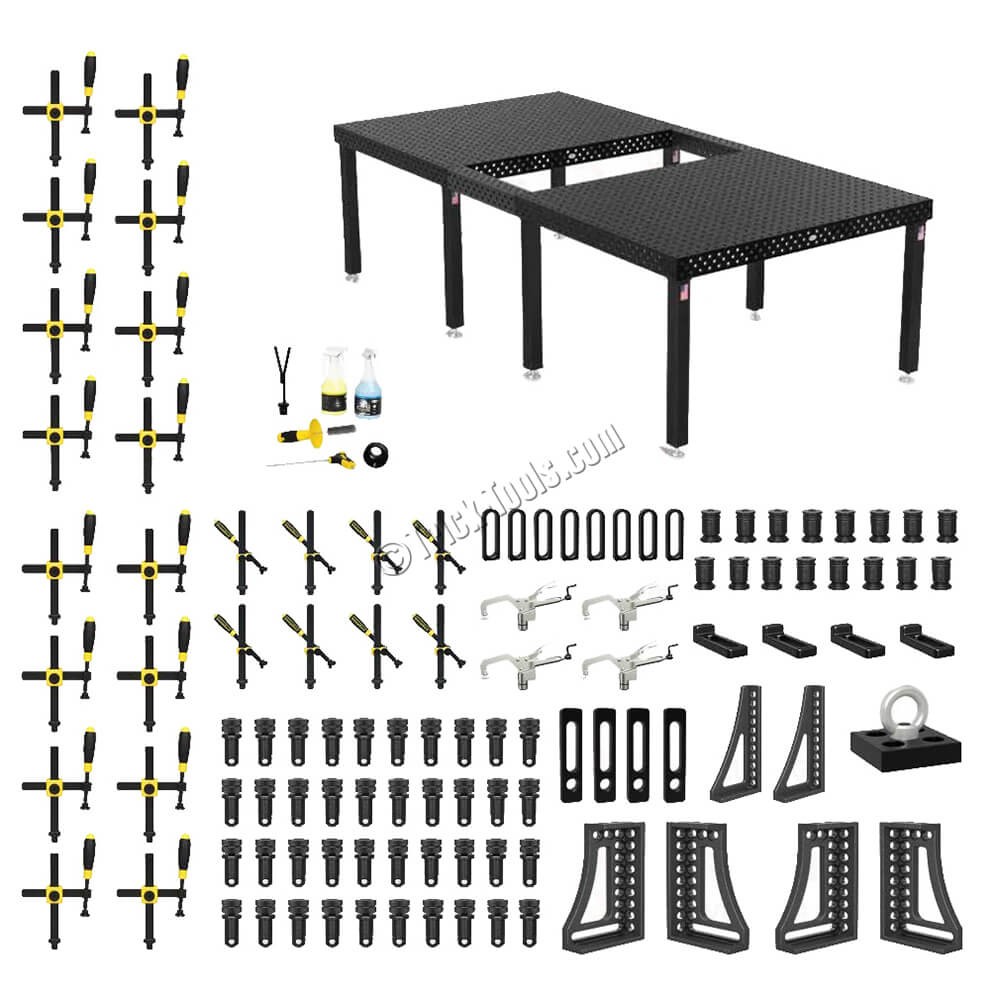

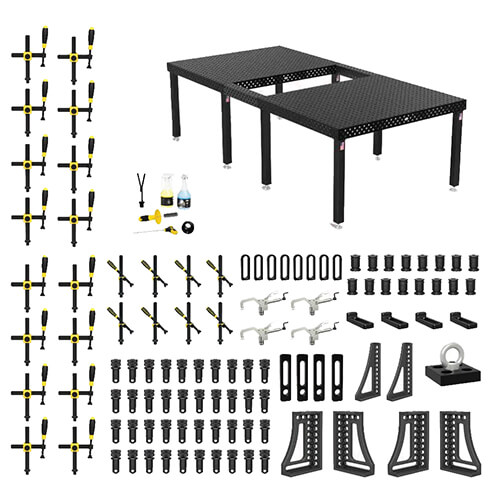

INCLUDES

  • (2) US160035.XD7 - 4x5 foot Fixture Table
  • (2) US160362.P - 24 inch Connecting Squares
  • (16) US160610.N - Professional Screw Clamps
  • (8) US160630.N - 45/90 degree Professional Screw Clamps
  • (16) US160560.N - Short Connecting Bolts
  • (40) US160511 - Short Fast Clamping Bolts
  • (4) US160108.N - 1 inch Stop and Clamping Square
  • (8) US160410.N - 3-3/16 inch Stop and Clamping Square
  • (4) US160420.N - 5 inch Universal Stop
  • (2) US160162.N - 12 inch Stop and Clamping Square
  • (2) US160124.N - 12 inch Stop and Clamping Square, Left
  • (2) US160126.N - 12 inch Stop and Clamping Square, Right
  • (4) US160707 - 6-5/16 inch Quick-Change Clamp
  • (1) US160830 - Lifting Bracket
  • (1) US163999 - Maintenance Set
