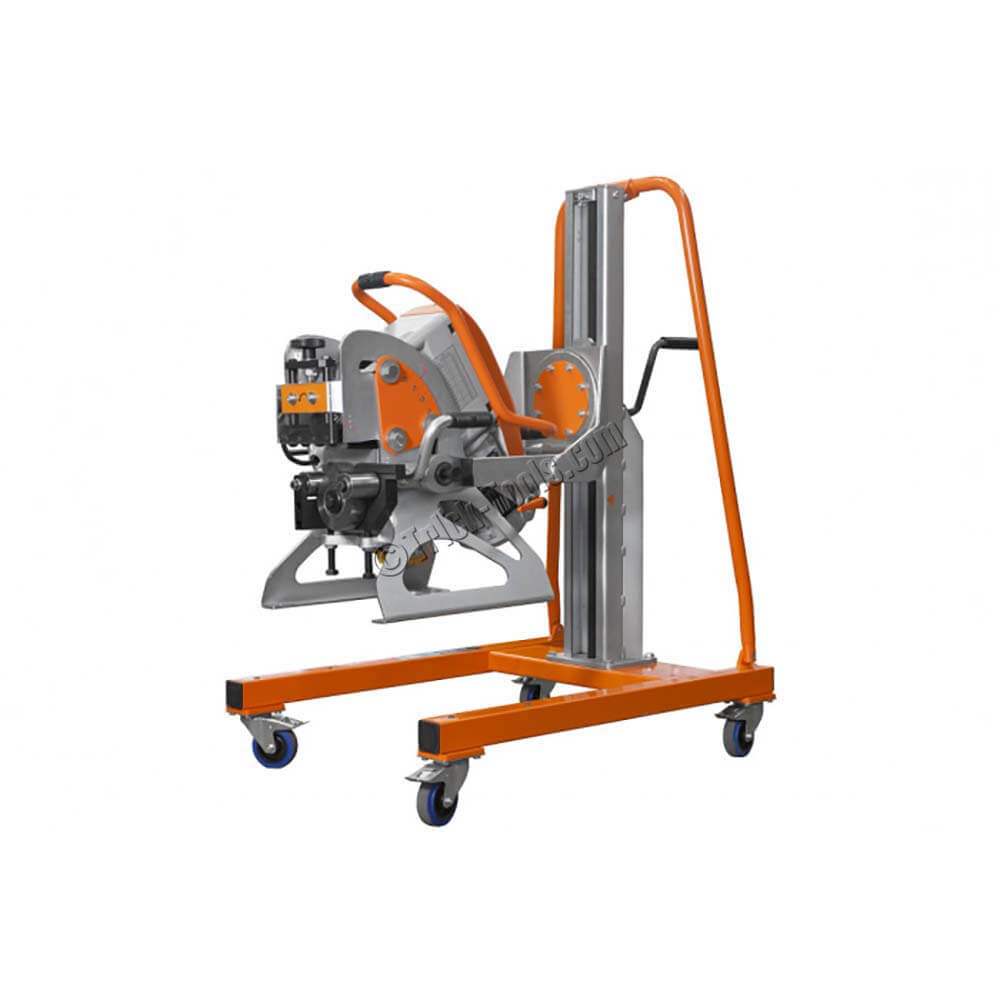

Beveler USA UZ18 HardWorker Beveler with Manipulator 3D

Name: Beveler USA UZ18 HardWorker Beveler with Manipulator 3D
Brand: Beveler USA
SKU: UZ18-M3D
Price: 14616.00 USD
Availability: InStock

Part #: UZ18-M3D
Model: 1984, 1985
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $15,617.00
Sale Price: $14,616.00

NEW

Adjustable from 15 to 50 degrees
Includes 3D Manipulator for self propelled work
Up to 18mm bevel widths
Feeds at 6.23 feet per minute

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

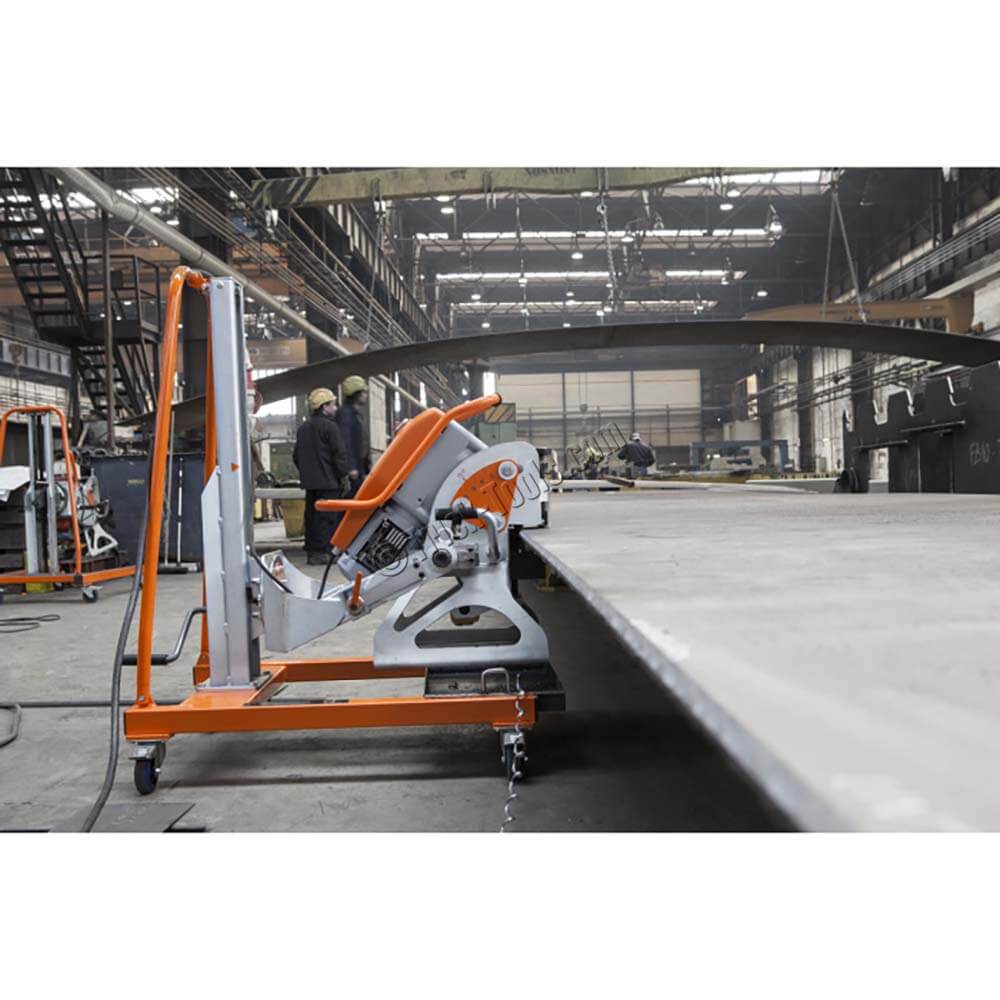

The UZ18 HardWorker is just like the name implies, a hard worker. This machine can bevel up to 18mm wide and operates at 6.23 feet per minute. It uses HSS steel shearing blades for long life and an ultra-quiet operation. The UZ18 can be used in the stationary position or paired with the Manipulator 3D for traveling along longer workpieces. Another feature of the UZ18 is the adjustable head allowing this unit to bevel anywhere from 15 to 50 degrees without tooling changes.

Additional Specs:

Power input: 220 volt 3 phase, 1hp (750 watt)
Bevel angle: Adjustable from 15° to 50°
Bevel width maximum: 0.71 inches (18 mm)
Material thickness: 0.23-1.57 inches (6-40mm)
Minimum material width: 2.75 inches (70mm)
Minimum material length: 5.9 inches (150mm)
Feed type: automatic
Feed rate: 6.23 ft/min (1.9 m/min)
UZ18 Weight: 242.5 lbs (110 kg)
Manipulator 3D Weight: 182 lbs (82.6 kg)(

Warranty:

1 year manufacturer's warranty
