20 inch Table Top Fixture Plate

Part #: TT-FP1
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $331.00

NEW

A fixture solution for any table top
20 x 6-1/4 inch plate
Multiple plates can be joined together
Nitrided finish for corrosion and weld spatter resistance

SHIPPING:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

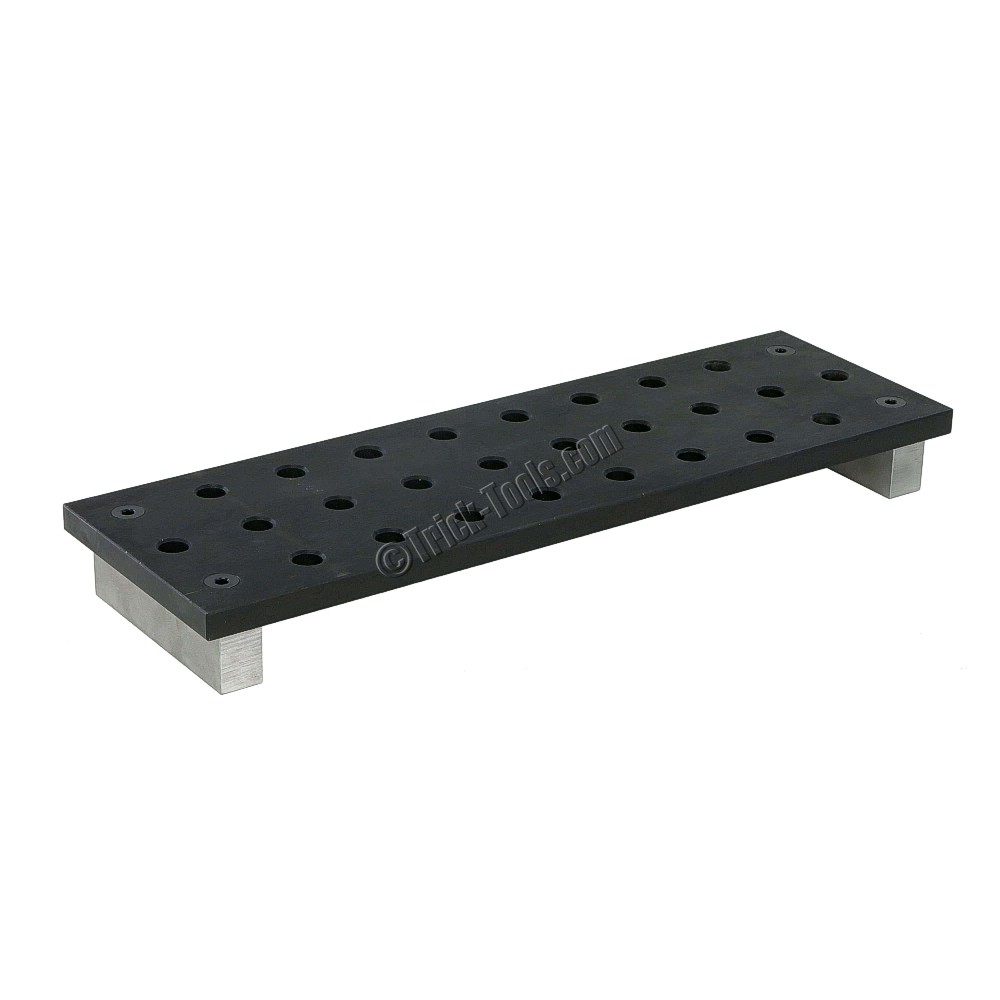

Use this fixture plate with the included riser blocks to fixture small parts where it is most convenient for you. Weighing a hefty 25 lbs and measuring 20 inches long x 6-1/4 inches wide, the 5/8 thick top plate features 30 fixturing holes in a 2 inch center to center pattern. These holes are compatible with all BuildPro clamps. The plate itself features a nitrided finish for corrosion and weld spatter resistance

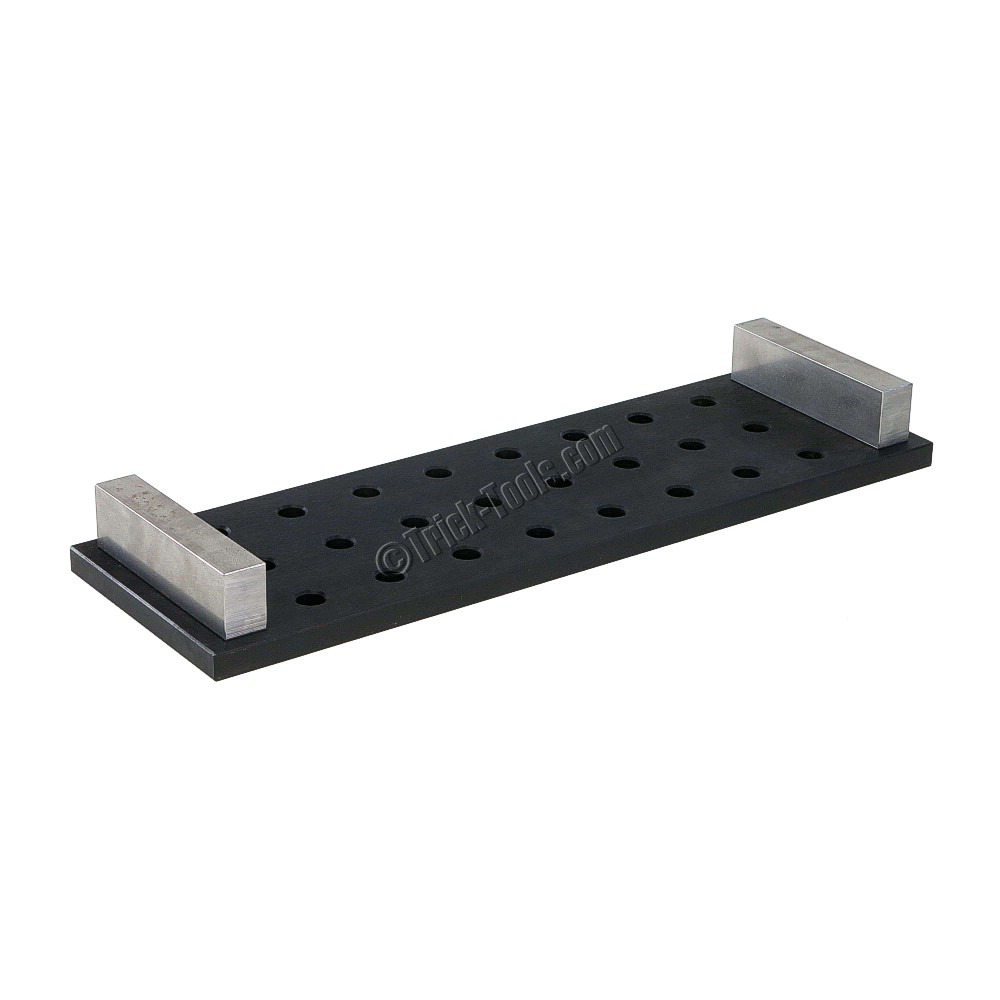

The included riser blocks and hardware raise the plate 1-1/2 inches above the table surface and also allow multiple plates to be linked together in any configuration to best suit the task at hand. The riser blocks also serve as a great way to secure the fixture plate in a bench vise. Additional plates and riser blocks can be found under the accessories tab.

SPECIFICATIONS

•Size: 20 x 6-1/4 inches
•Flatness: +/- .004 inches per foot
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 25
•Dimensions (LxWxH): 20 x 6-1/4 x 2-1/8 inches
