B2 AIR Deburring System

Part #: 24200
Model: B2 AIR
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $649.00
Sale Price: $427.00

SALE

Create 45-degree bevels
Radiused edging available with additional tooling
Ergonomic design fits comfortably in hand
Precise depth adjustment with scale

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

The B2 AIR from Beveler USA is a compact, lightweight, and ergonomic deburring solution that is the perfect tool for deburring and finishing plasma, laser, or waterjet cut parts. It includes blades for 45 degrees angles or it can be equipped with optional rounding blades to create a 1.5mm radius. The B2 AIR also features a quick-adjust depth stop with large, easy-to-read increments.

Additional Specs:

Motor: pneumatic
Bevel angle: 45°
Bevel width maximum: 0.08 inches (2 mm)
Rounding radius: 0.06 inches (1.5 mm)
Speed 23,000 rpm
Feed type: manual
Air consumption: 11.3 CFM (320 l/min)

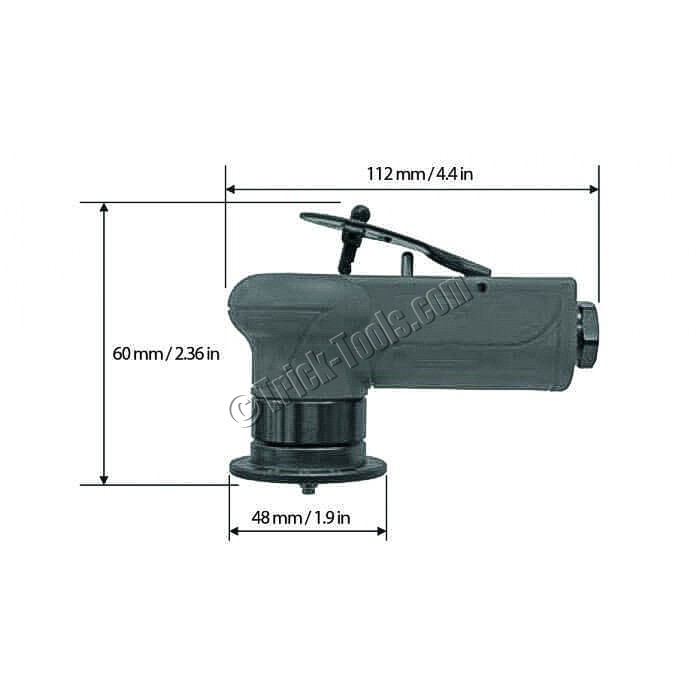

Dimensions: 4.4 x 2.36 x 1.9 in (112 x 60 x 48 mm)
Weight: 0.88 lb (400 g)
Number of cutting inserts: 3 pcs

Warranty:

1 year manufacturer's warranty
