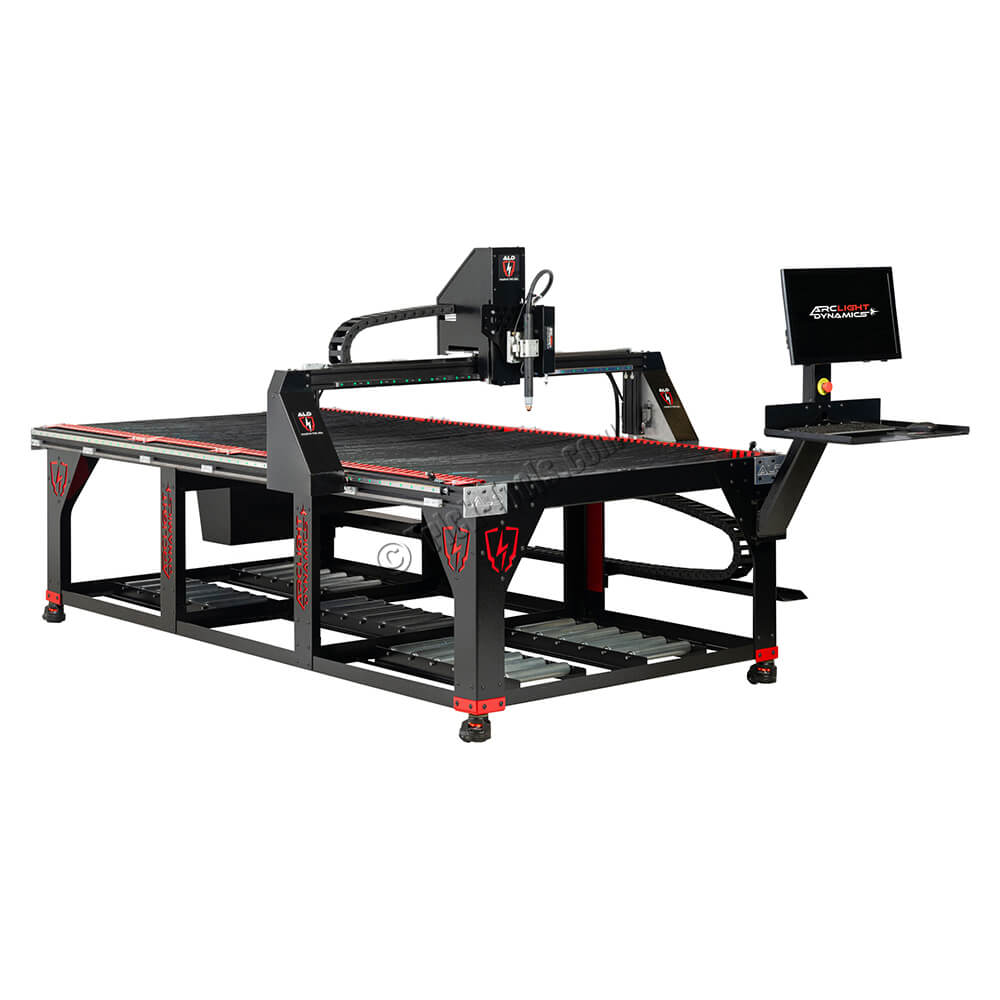

ArcLight Dynamics ArcPro 4x8 CNC Plasma Table

Part #: AP-4x8
Model: Ultra or Elite
Ships From: Factory shipped

Lead Time: Usually ships within 4-6 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $15,995.00

BEST SELLER

Cuts a full 4x8 sheet of metal
Perfect for small shops, manufacturing, and schools
Includes water table, torch height control, and computer with software
Ships fully assembled less plasma machine

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The ArcPro 4 x 8 CNC plasma table represents the very best in small shop plasma tables at an affordable price. The control system is one of the most feature-rich on the market and comes with a three-year warranty, plus support. From the high speed dual drive gantry on linear rails to the magnetic release torch mount, one would expect to pay thousands more for standard equipment like this. 4 foot ArcPro Series Tables also offer the ability for the table to grow as your business grows from 4x2 to 4x4 to 4x8 with a simple upgrade kit.

ArcPro tables are now available in two options, the Ultra or Elite. The Ultra standard with a Linux based computer loaded with standard software. You can also upgrade to the Elite package which includes a Windows based computer and FlashCut CNC which is the industry leader in CNC cutting software. Other upgrades withe the Elite package include larger stepper motors for faster operation.

All ArcLight Dynamics Plasma Tables ship fully assembled and tested less plasma torch. If a plasma torch is purchased along with your table it can be complete and ready to run! See Accessories tab for plasma machine options.

Standard features include:

Automatic torch height control

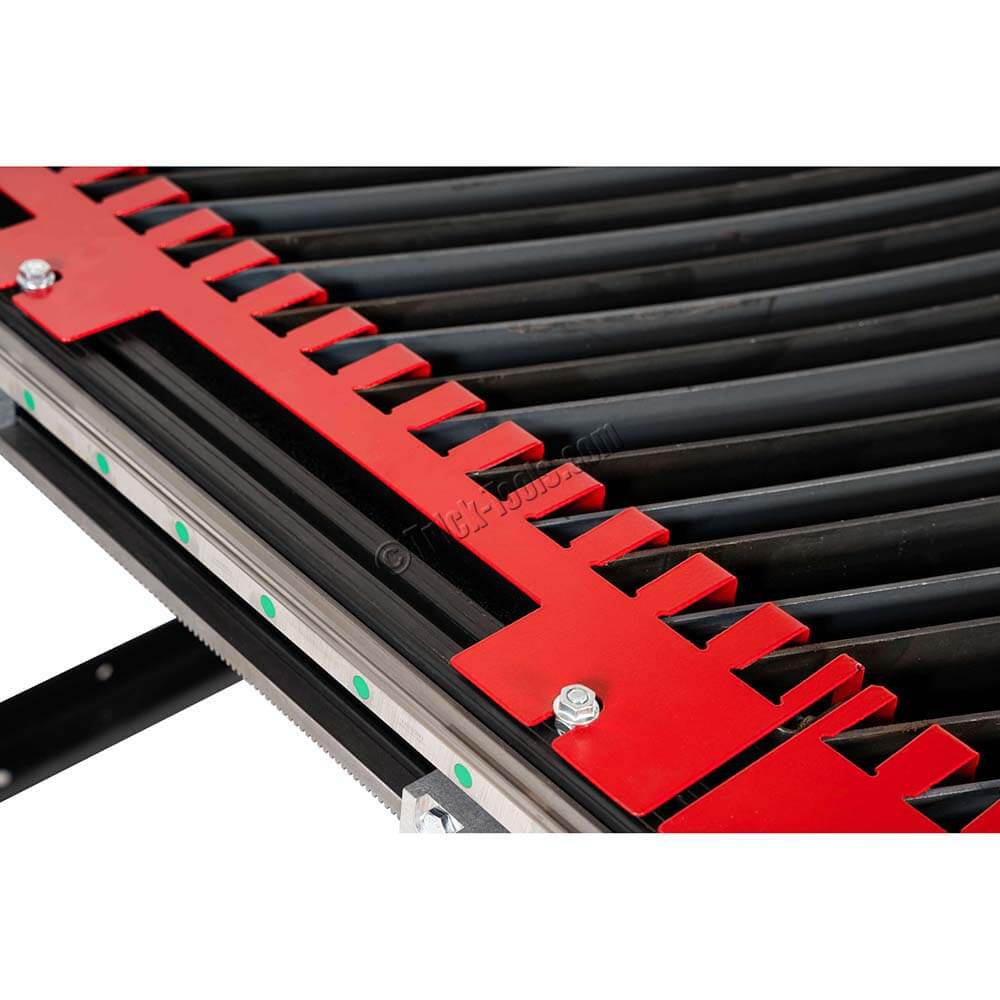

107 gallon water table to eliminate dust and smoke
Precision steel frame
Computer with flat screen monitor

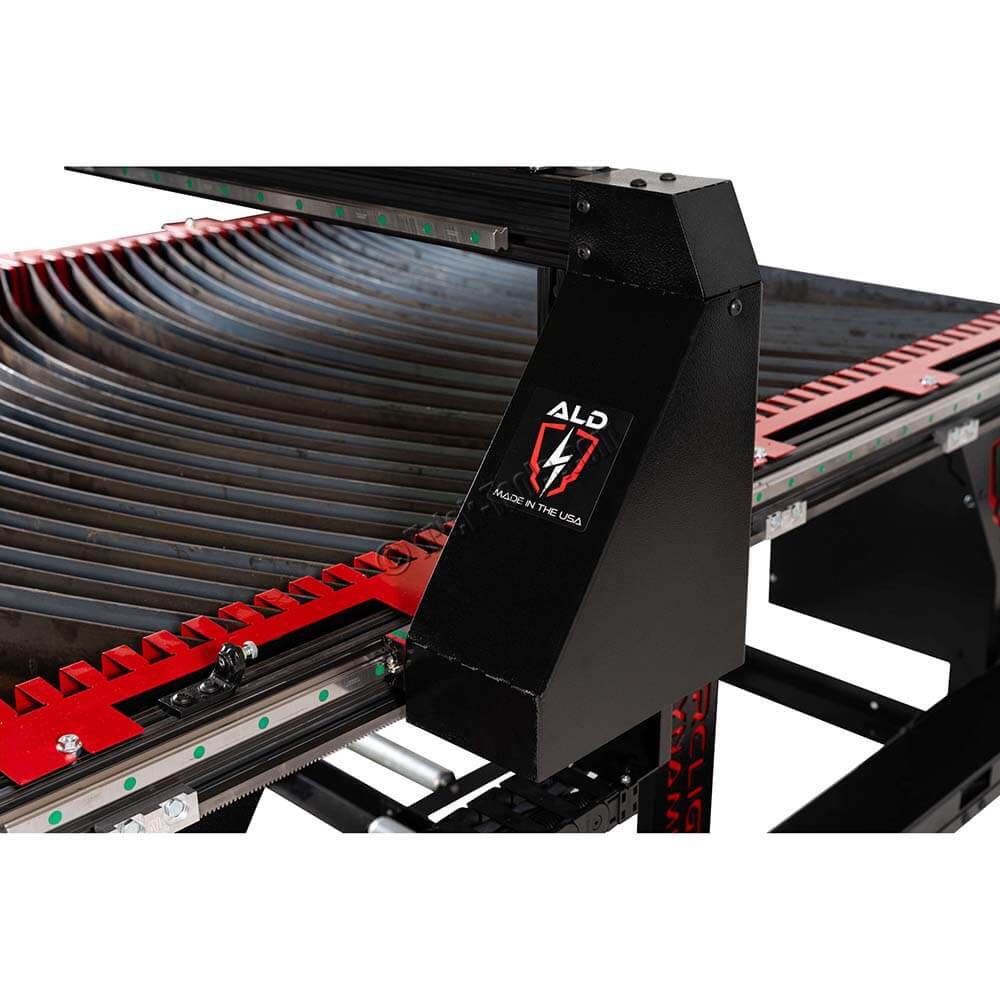

Precision rack and pinion dual drive gantry

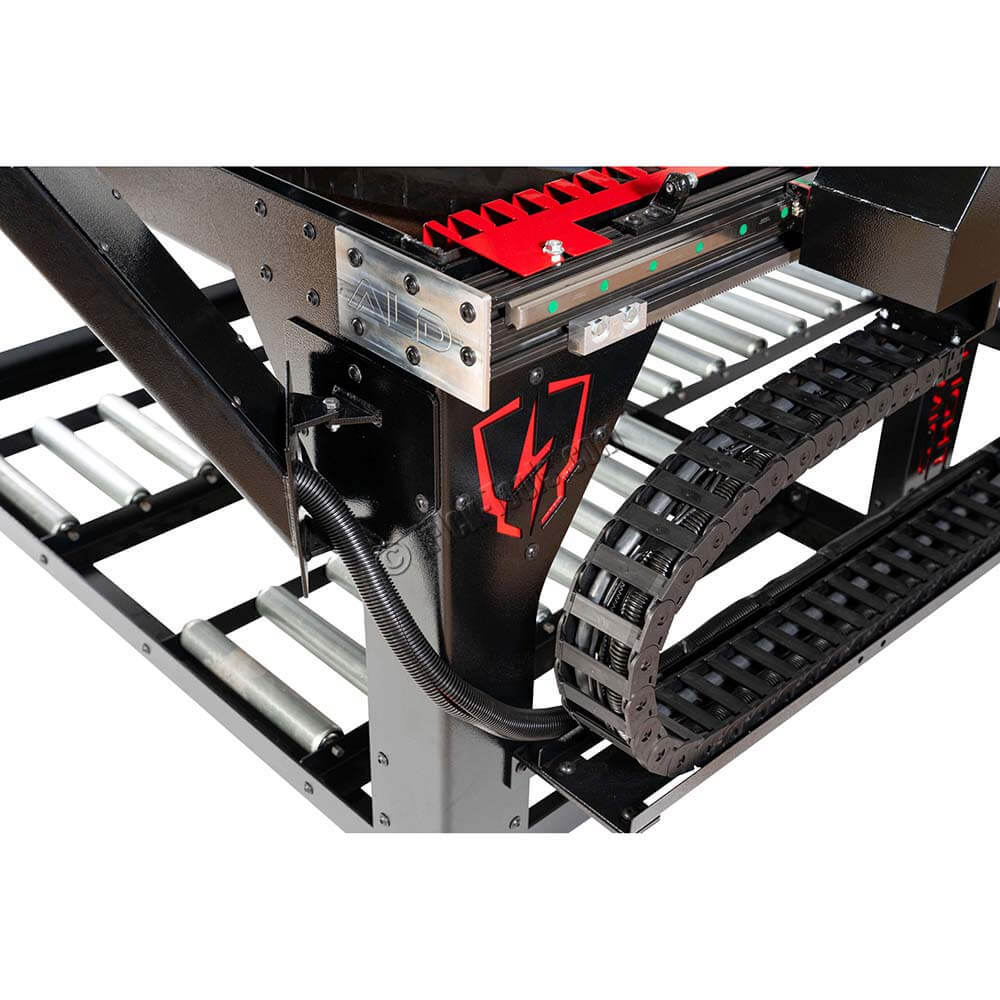

Cable management on both axis

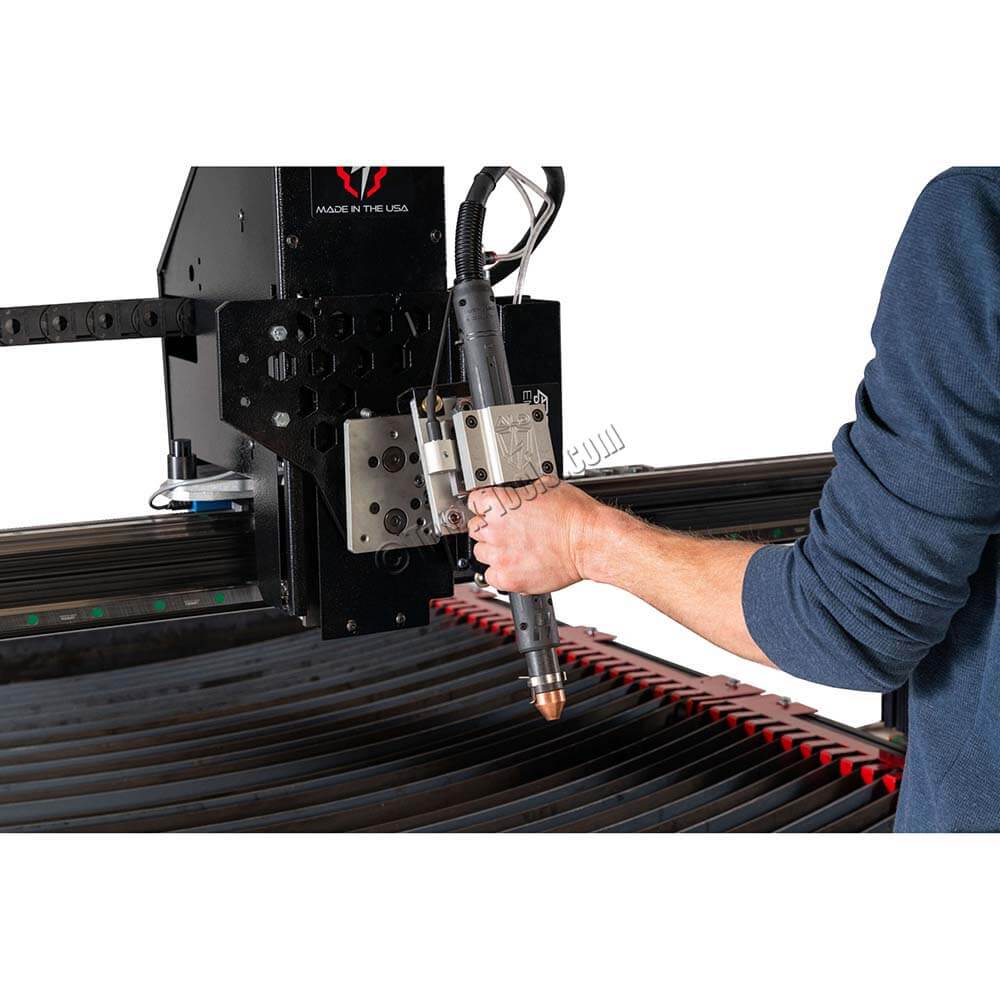

Magnetic release torch holder
3 year warranty

Software included:

Ultra Option:

Operating System: Linux
ArclightCNC Controller & Operating Software
- Preloaded settings for mild steel, aluminum, and stainless
Sheetcam CAM Software- nesting, duplicate, rotate, flip, array
QCAD 2D Drafting Software
Inkscape Drawing - Quickly turn images into files for artwork and signs

Elite Option:

Operating System: Windows
FlashCut Pro Integrated CAD/CAM/CNC
- Smart 360 hole cutting technology
- Automated CAM w/ True-Shape Nesting
- Real-time amperage & pressure control
- Cut wizard automatically sets cut parameters
- Intuitive CAD with easy image import
- Comprehensive drawing tools with simple text bridging

Shipping Note: Flatbed shipping is recommended for this table. Please call or email for a quote.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Motors: Ultra Option: four 420oz NEMA 23 | Elite Option: four 940oz NEMA 34
•Motor Type: stepper
•Voltage: 110 volt
•Cutting Area: 104 x 51.5 inches
•Cutting Depth: 6 inches
•Cutting Speed: Ultra Option: 700 inches per minute | Elite Option: 700 inches per minute
•Resolution: position accuracy: .001 inch | part repeatability: .003 inch
•Construction: steel
•Weight (pounds): 1,000
•Dimensions (LxWxH): 114 x 75-1/2
