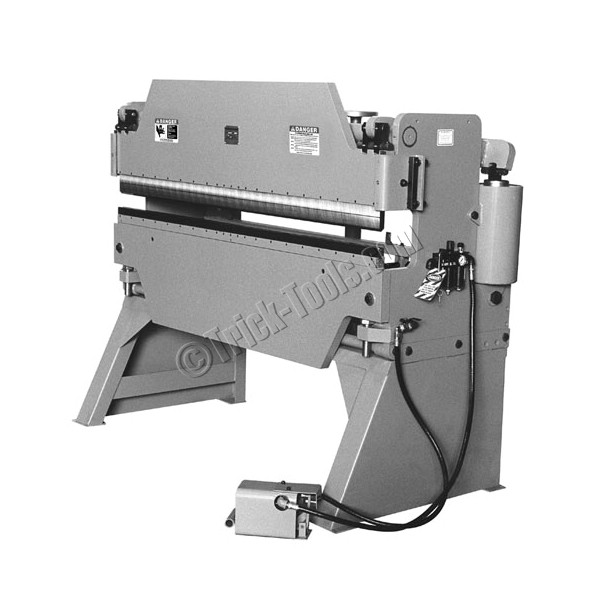

Atek Bantam 8 foot Press Brake, 24 ton

Part #: B824
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $31,250.00

Pneumatically powered
Adjustable stroke depth control
Variable tonnage control
Uses standard American style press brake tooling

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

Atek's press brakes offer versatility and economy. This machine is an 8-foot 24 ton model. They perform numerous prototyping and production press brake functions including bending, flanging, hemming, flattening, staking, box forming, and more. Each machine uses standard American-style, 4150 steel alloy press brake tooling. A 90 degree top punch and 3/4 inch bottom vee die included.

Additional features include adjustable stroke depth control, adjustable die spacing, a tamper-proof speed control valve, complete modular FRL unit with OSHA lockout, and a variable tonnage control. No need to worry about wiring, simply connect an air line. The conditioned air supply, standard, gives years of trouble-free service. Buy a press brake Made in America by experienced craftsmen.

Note: This brake must ship via flat-bed semi. Please call us for a shipping quote.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: pneumatic
•Capacity: 24 ton
•Working Length (inches): 96
•Strokes: 20 strokes per minute
•Air Pressure (psi): 90
•Weight (pounds): 5100
•Dimensions (LxWxH): 36 x 108 x 45
