Baileigh MPB-275 Universal Bender

Part #: MPB-275
Ships From: Factory shipped
Availability: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $15,695.00
NEW
  • 1 inch solid stock capacity
  • Electric planetary gear drive
  • Create scrolls, brackets, and bend tubing
  • Foot pedal controls
FREIGHT:
Freight
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

The Baileigh MPB-275 Universal Bender is great for doing scroll work, making brackets or hangers, and even being able to do some rotary draw bending up to 1-1/4 inch schedule 40 pipe. Bend 180 degrees in about 5 seconds or up to 9999 degrees in either direction. The MPB-275 will bend solid stock in 1 inch by 1 inch square, 1 inch round, or 1/2 inch by 2 inch rectangle the easy way.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Nominal PIPE Capacity: 1-1/4 schedule 40
Square Mild Steel Capacity (inches): 1 x 1
Solid Bar Mild Steel Capacity (inches): 1
Max Bending Speed: 6 RPM, 5 seconds to 180 degrees
Bending Style: Universal
Max Degree of Bend: 9999 bi-directional
Motor: 2 hp, 220 volt, 1 phase

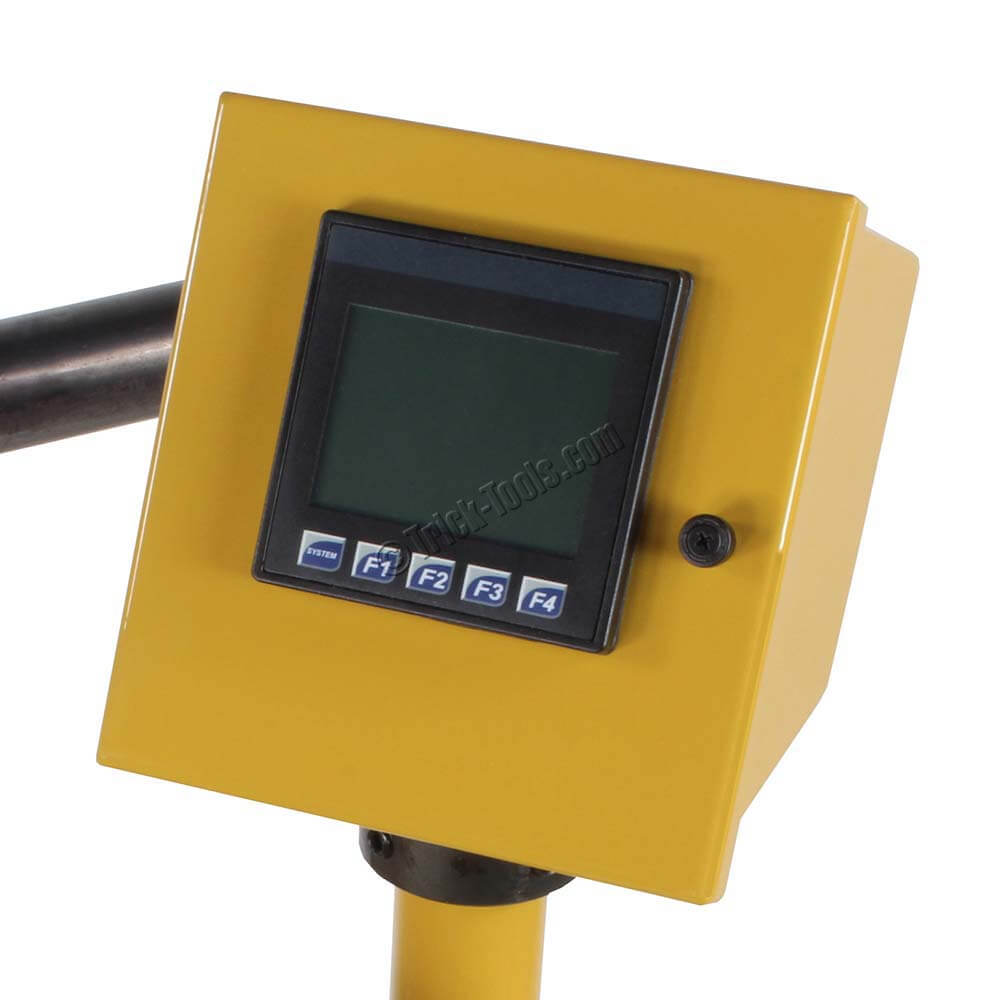

Control Method: programmable on board computer
Weight (pounds): 750

INCLUDES

  • MPB-275 bender

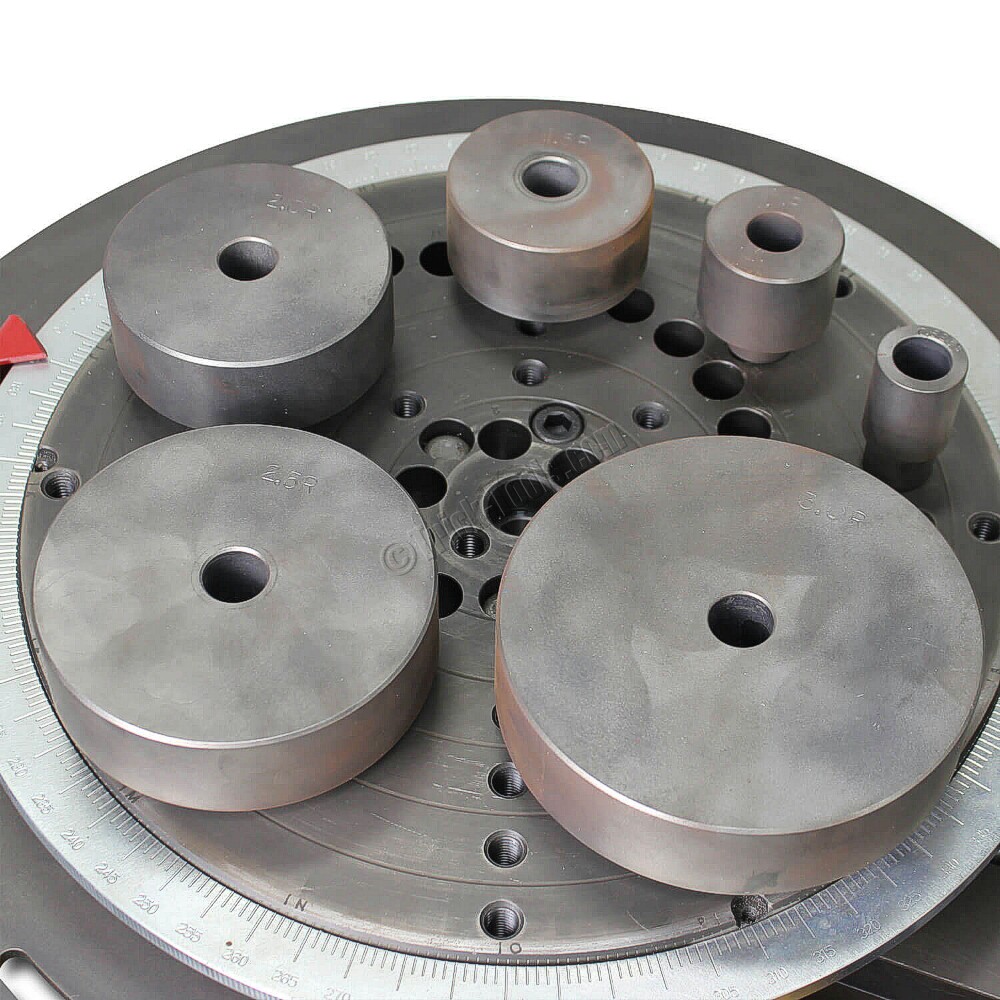

  • 2 inch tall bend pins with 3, 2.5, 2, 1.5, 1.25, 1.0, and 0.625 radius

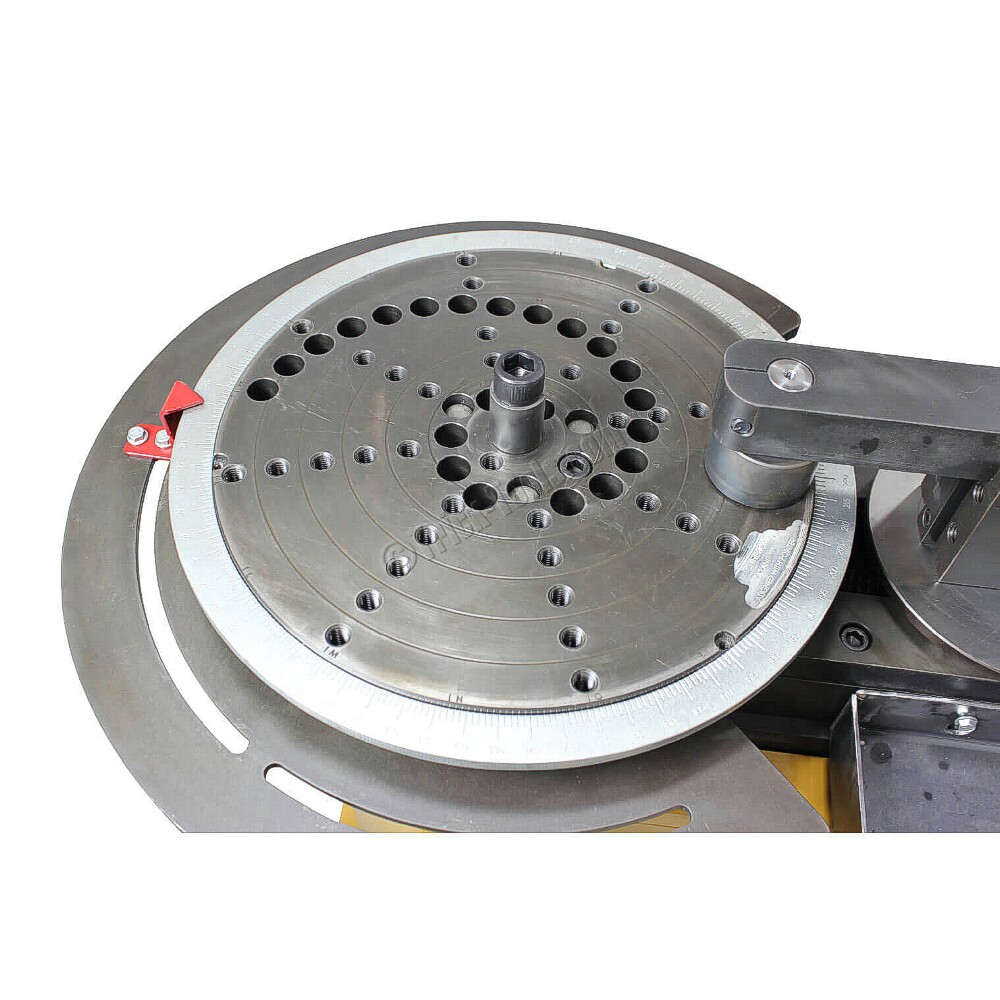

  • Universal bending plate

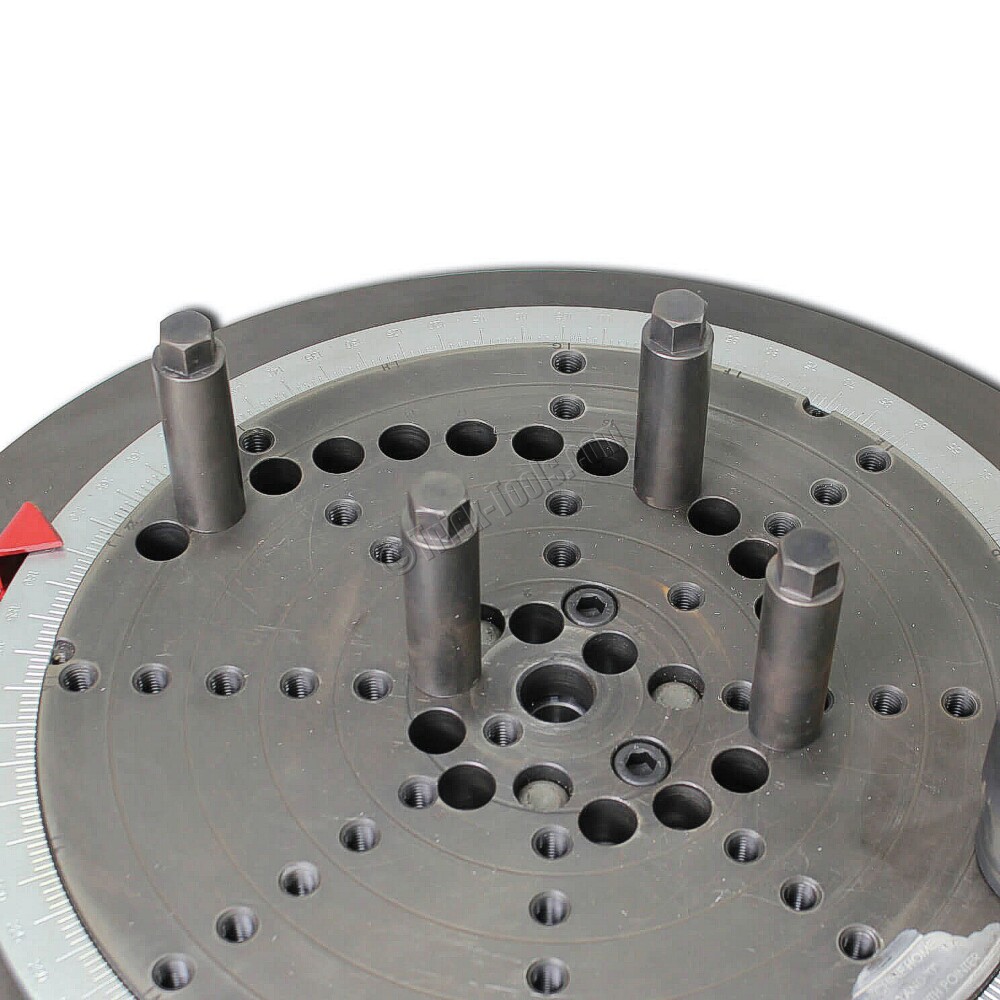

  • 4 hardened lock pins
  • Tight nose bending tool
  • Roller bending tool
  • 1 rotating stop
  • 1 fixed stop
  • Adapter to run standard tube and pipe dies.
  • 4 shear pins

DOCUMENTATION

VIDEO
