Baileigh TN-300 Hole Saw Tube Notcher

Part #: 1008056
Model: BA9-TN300
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $4,054.29
Sale Price: $3,299.99

FREE SHIPPING

Capacity of 5/8 to 3 inch OD
Angles up to 220 degrees
Offset coping
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

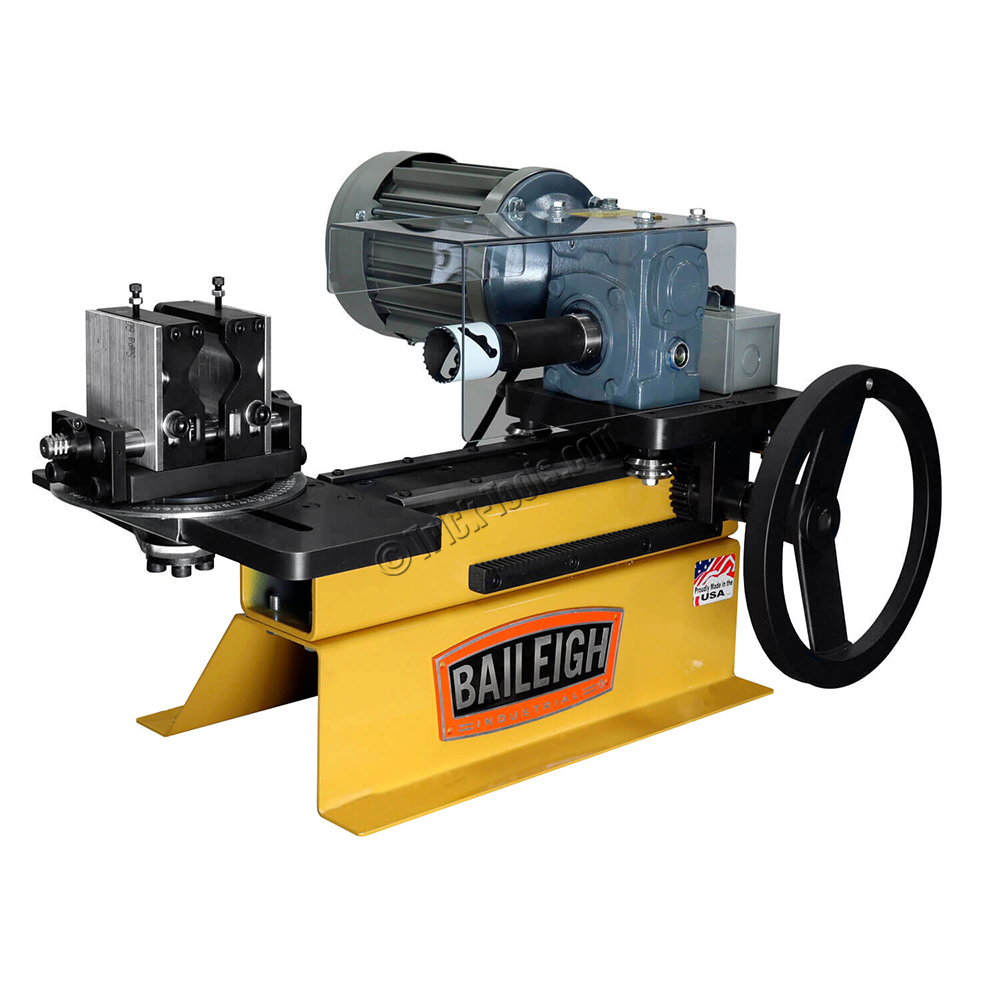

The Baileigh TN-300 tubing notcher is an industrial-quality hole saw coping machine. Capable of notching 5/8 inch through 3 inch tubing, most tough applications demanding up to 60 degree copes can be handled with one machine.

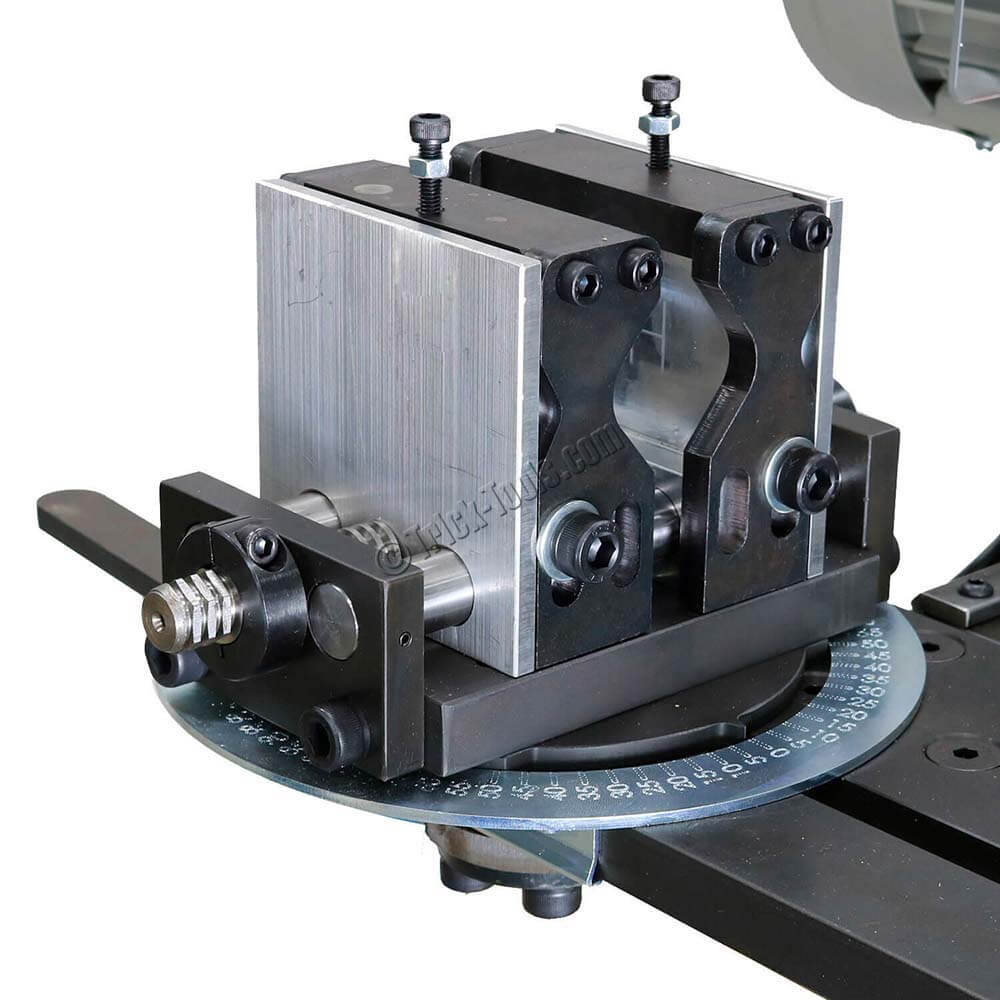

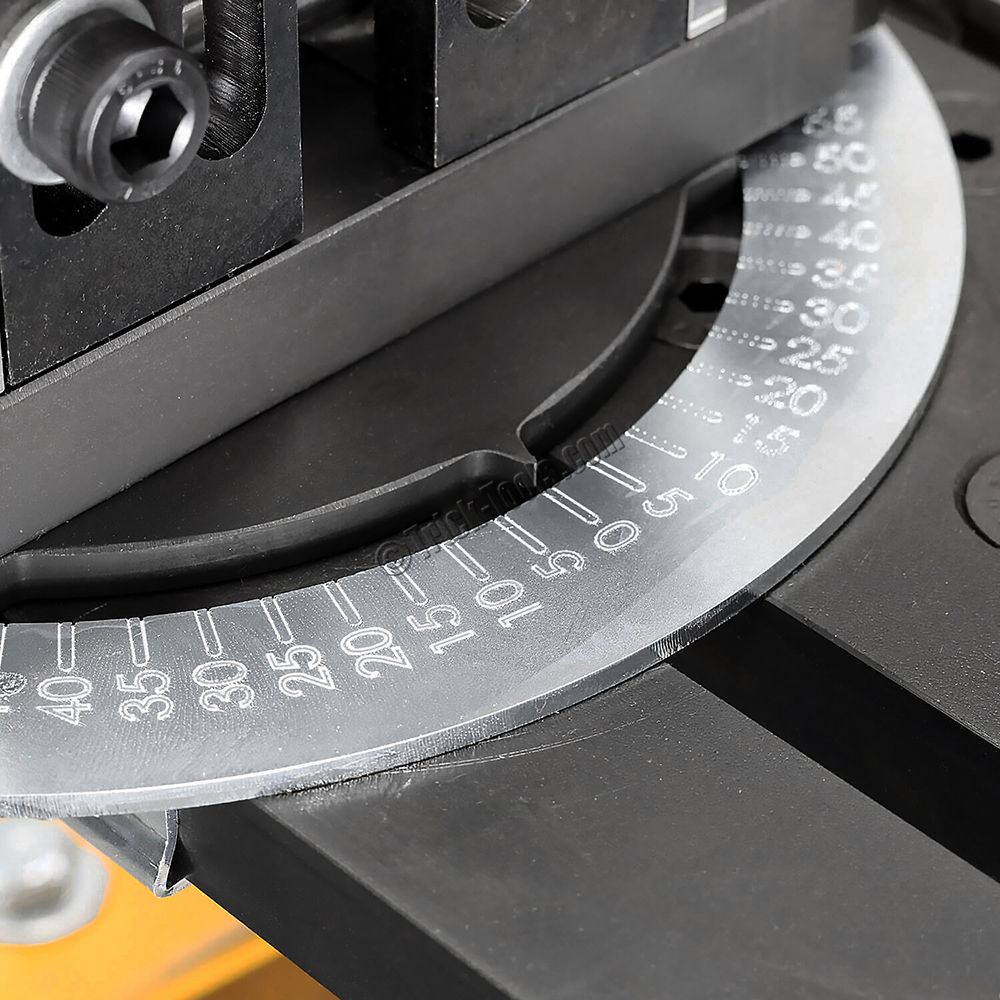

The standard vise allows for offset coping, and features a quick release taper lock system for easy adjustment of the angle of the cut and proximity of the material to the cutter. With a 110 volt, .5 hp motor and oil filled gearbox, this rugged combo is built for years of use. The cutter assembly moves on a precision track with V-Bearings.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: .5 hp, 110 volt
•RPM: 177
•Max Notch Angle: 220 degrees
•Max Diameter: 3 inch
•Min Diameter: 5/8 inch
•Max Offset (inches): 1-1/2
•Dimensions (LxWxH): 30 x 24 x 22
