Bend-Tech MSP Plate Templates - Motorsports Edition

Part #: BTMSP
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $295.00

Choose from dozens of tabs, brackets, gussets, etc
Set your own dimensions
Export via .dxf to your plasma cutter

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

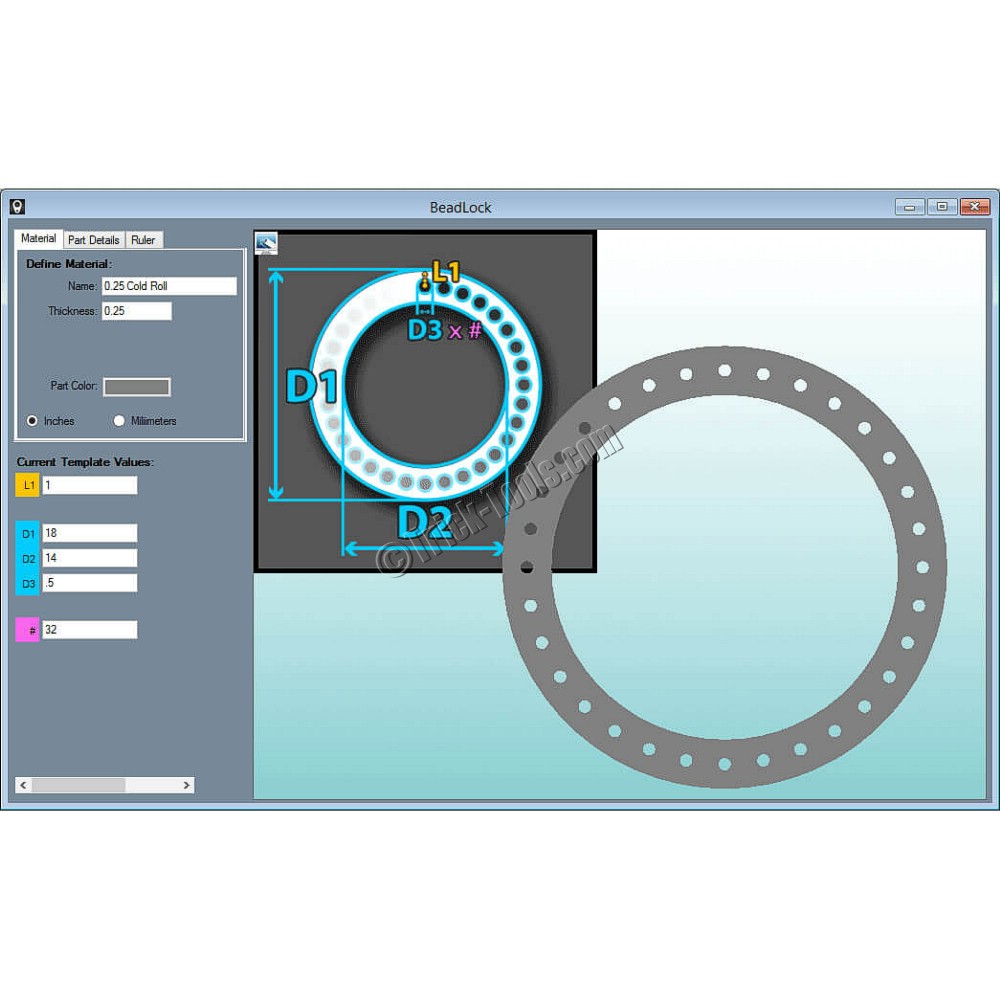

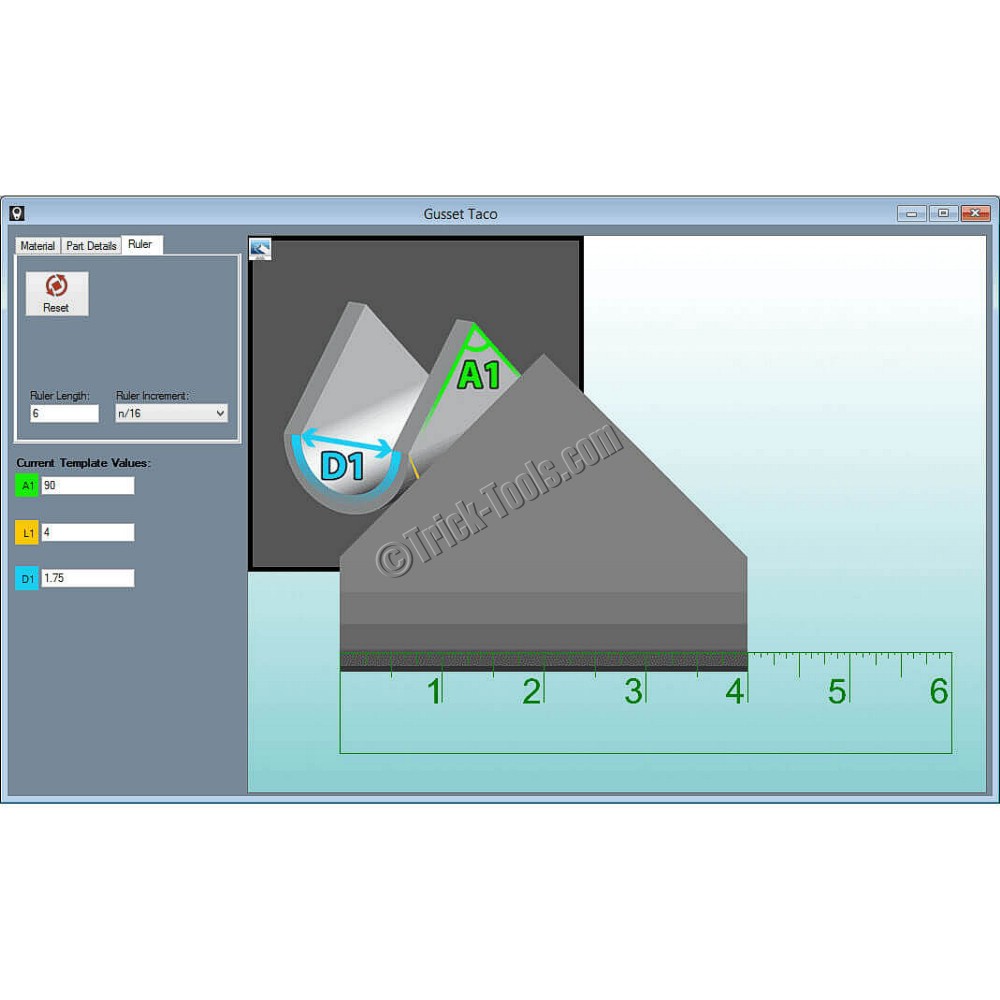

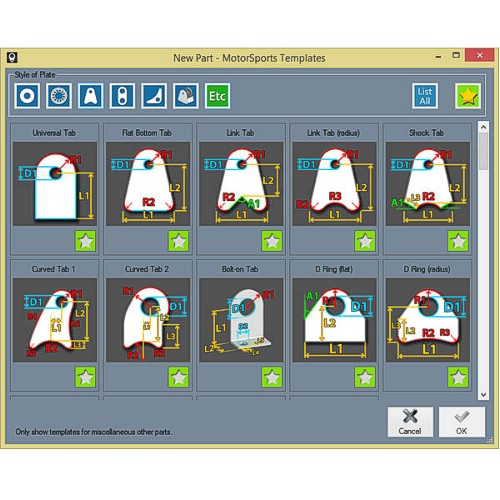

Bend-Tech Plate Templates Motorsports Edition (MSP) is a software library of templates designed for the Motorsports industry which includes common washers, tabs, gussets, beadlocks, and mounts. With customizable dimensioning, you can pick the style of bracket or tab you are looking for from the ever-expanding library and make it the perfect fit for your unique fabrication project. Once you've created your plate, MSP can export a .dxf file of your part to be sent to your plasma CAM software for easy cutting and manufacturing.

Users do not need any CAD or sophisticated software experience. Designed to make the user feel comfortable with it in minutes, it will start saving you time and money immediately.

This is standalone software but can also be purchased as an accessory to be used inside of Bend-Tech Pro or SE. This allows the addition of gussets and tabs on your tubular assemblies. See those products for more information.

SPECIFICATIONS

•Format: PC software, version 7.x
•System Requirements:

Minimum Requirements

Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11)
1 GHz Processor
2 GB RAM (Memory)
1 GB Hard Drive Space
1024 x 768 Screen Resolution
OpenGL 1.3 Compatible Graphics Card
.NET Framework 3.5 Installed
Active Internet Connection (Internet connection is needed during the first activation and then every 6 month, software can run offline in between).

Recommended Requirements
Windows Operating System (XP, Vista, 7, 8, 8.1, 10, 11)
1GHz Dual-Core Processor
4GB Ram (Memory)
1 GB Hard Drive Space
1280 x 800 Screen Resolution or greater
OpenGL 1.3 Compatible Graphics Card
.NET Framework 3.5 SP1 Installed
PDF Reader Installed (for Help Guides)
Full Keyboard and Mouse
CD Drive (for install from CD)
High-Speed Internet
MacOS Requirements
Windows OS running on Emulator/Parallels.
Same requirements as above.
Bend-Tech does NOT run directly on MacOS.
