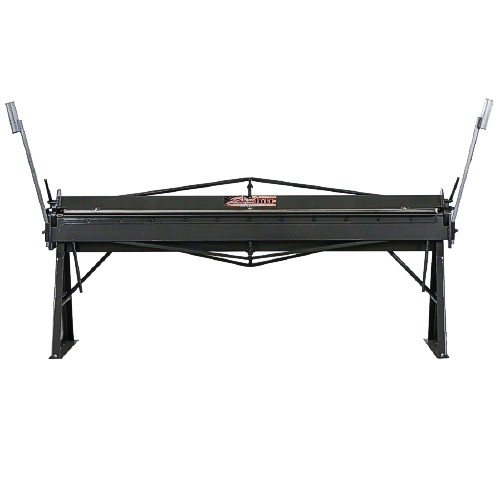

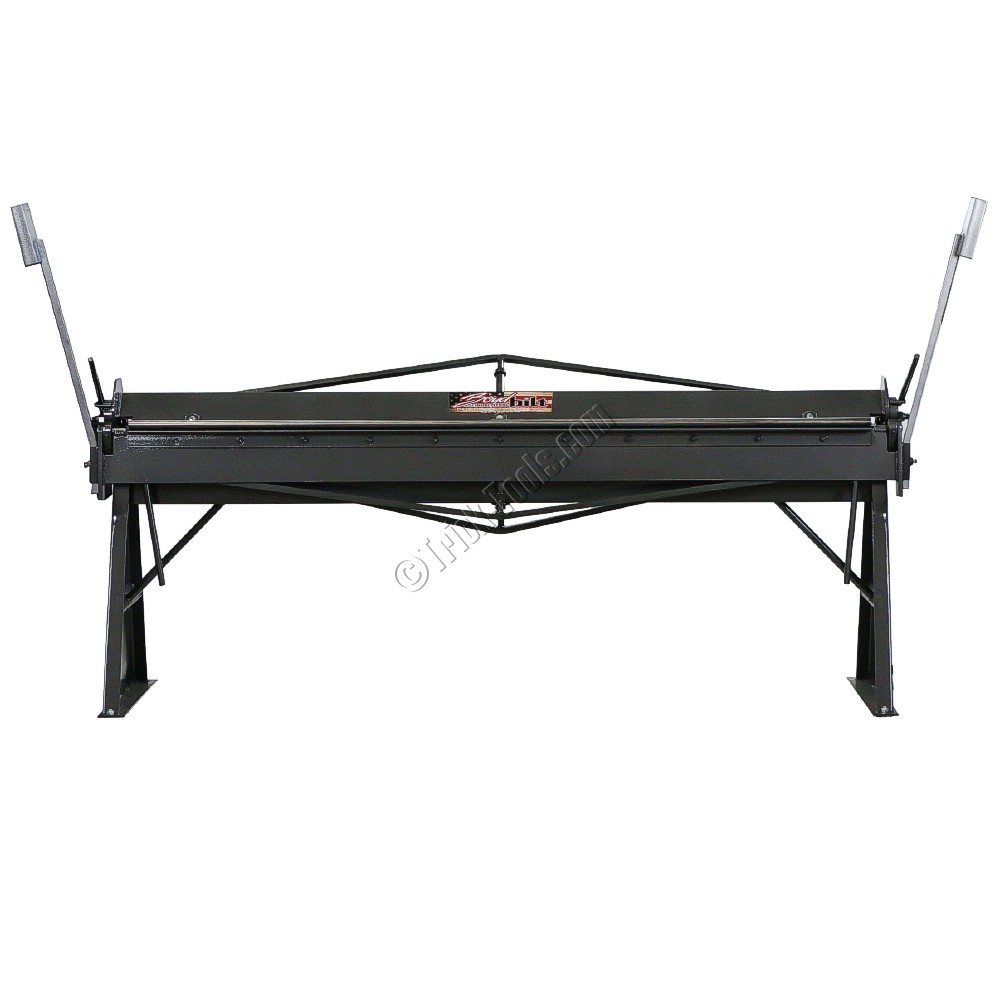

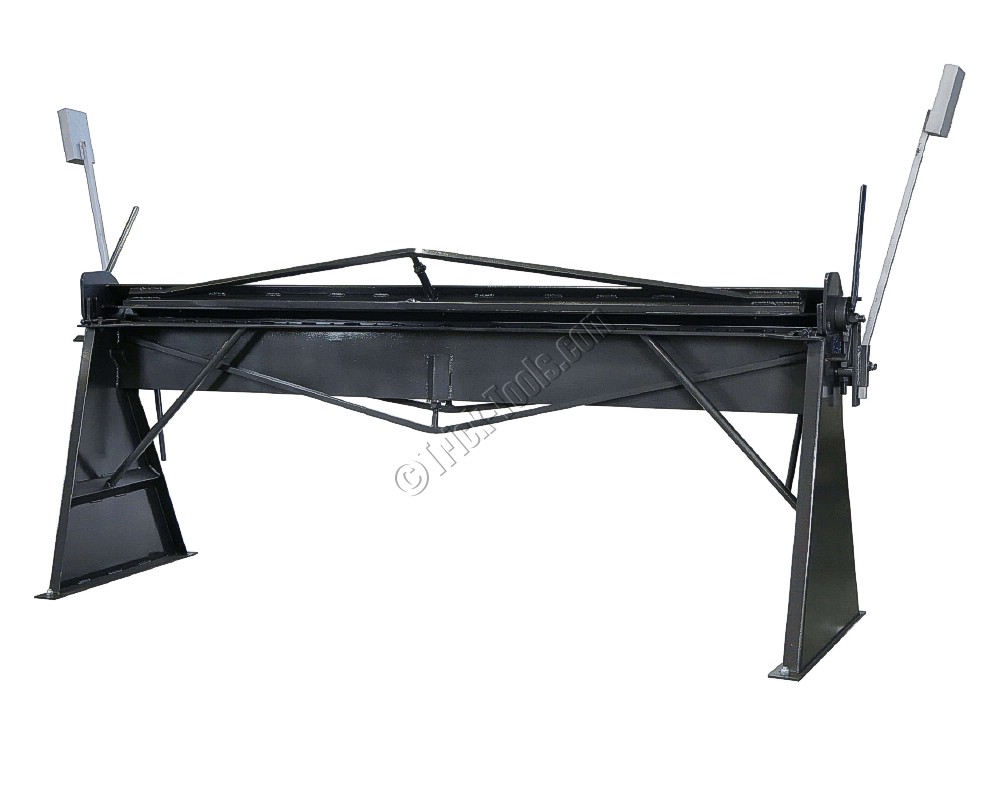

Boyd-Bilt 7 foot Racer Brake with Radius Bar, 20 gauge

Part #: Boyd7-R
Ships From: Factory shipped
Availability: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $1,960.00
  • 7 foot length
  • 20 gauge steel capacity
  • Bronze hinge bushings
  • Adjustable counterweights
  • Plate steel construction

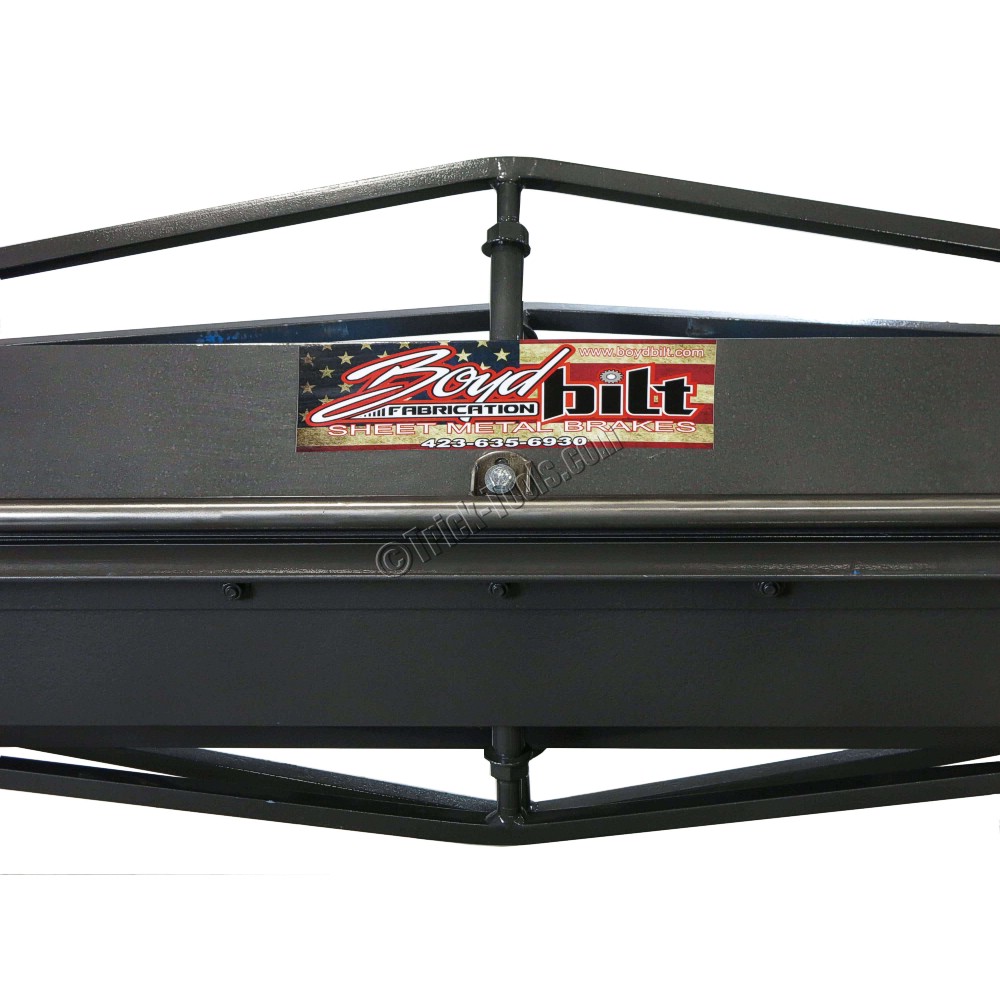

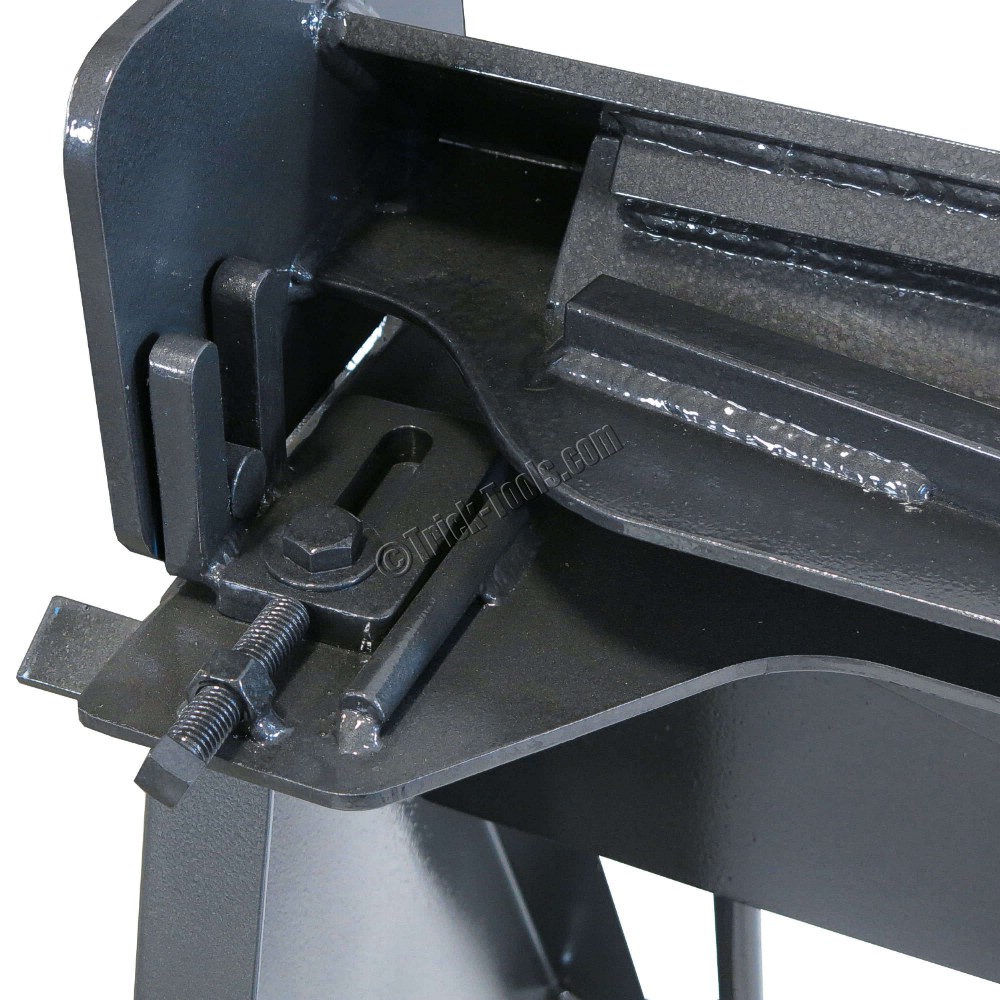

This Boyd-Bilt 7 foot racer sheet metal brake is ideal for race car bodies, HVAC work, and more. With features such as a 1 inch radius bar, cam-lock design, bronze hinge bushings, adjustable tension bars, adjustable counterweights, and plate steel construction, Boyd-Bilt brakes are among the highest quality fabricated sheet metal brakes on the market.

Note: Liftgate delivery is not available for this item.


1 year manufacturer's warranty


Type: manual
Mild Steel Capacity: 20 gauge (.9mm)
Aluminum Capacity: .060
Stainless Capacity: 24 gauge (.6mm)
Working Length (inches): 84
Max Lift Of Beam (inches): 1.875
Front To Rear Adj (inches): 2
Min Reverse Bend (inches): .5
Minimum Flange Capacity (inches): .625
Weight (pounds): 495
Dimensions (LxWxH): 96 x 40 x 62


  • 1 inch radius bar
