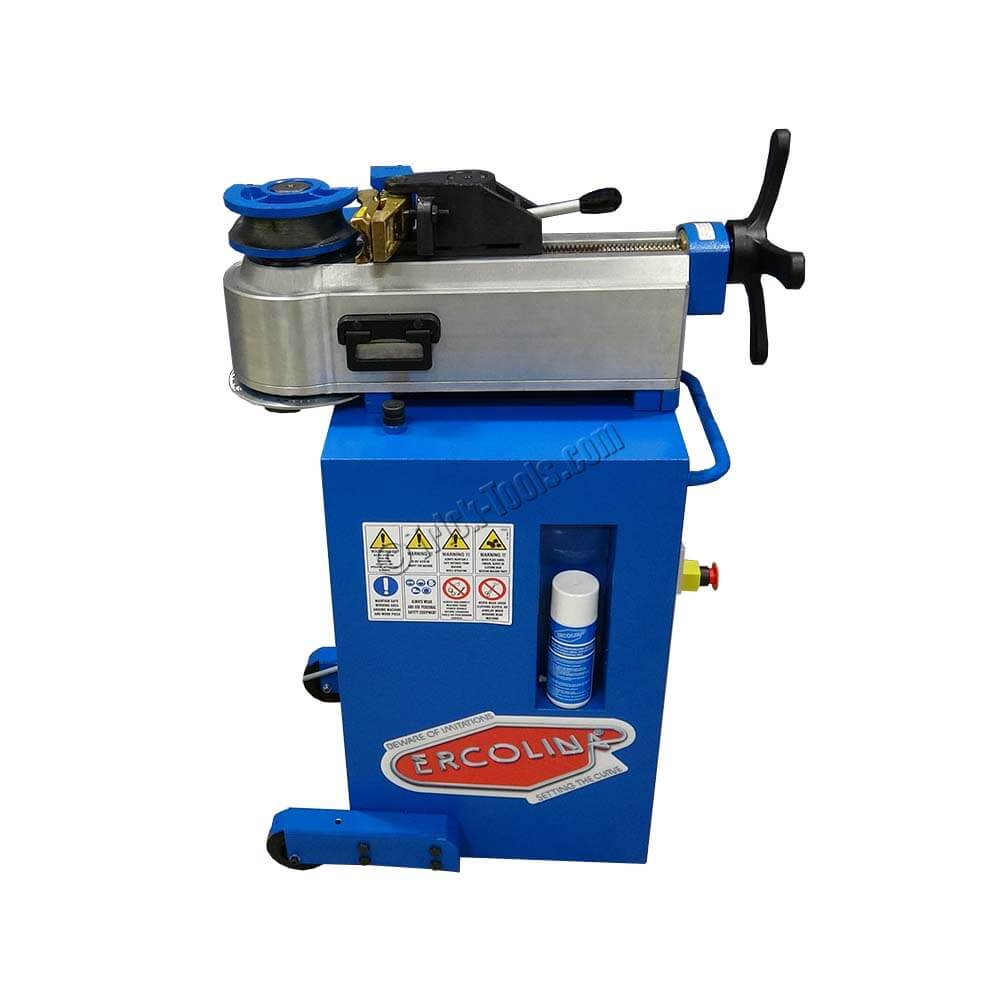

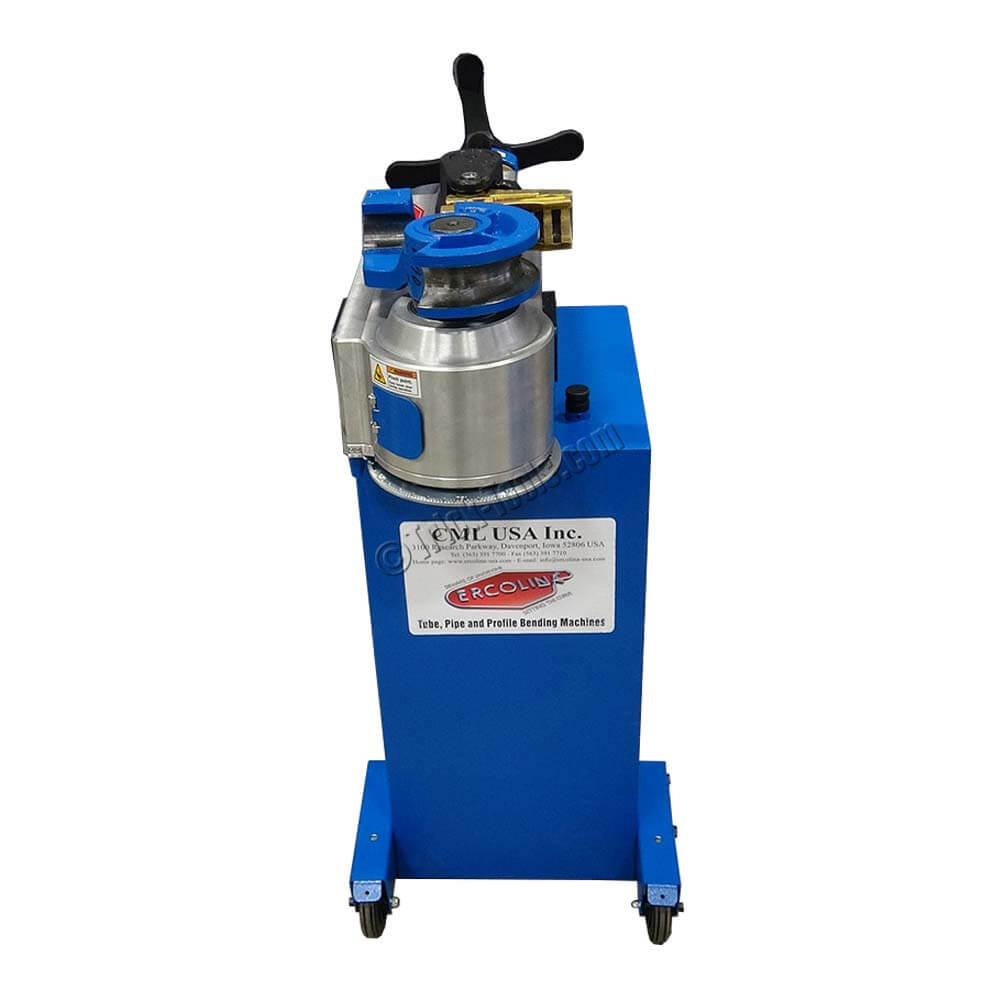

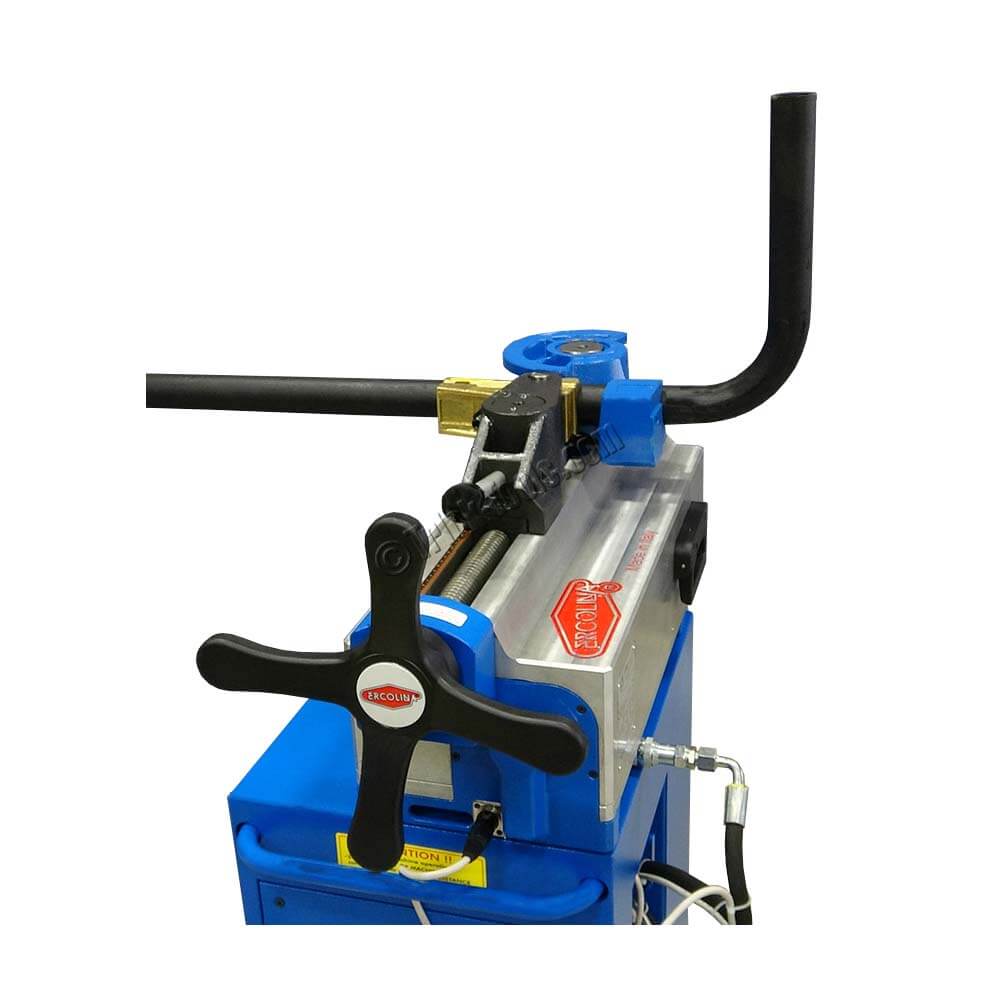

Ercolina HB60 Hot Shot Tubing Bender

Part #: HB60
Model: HB60-M1, HB60-M2
Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $9,900.00
NEW
  • 2 inch OD capacity
  • Electric/hydraulic power
  • Auto-stop
  • 180 degree bends in one shot
  • Foot pedal controls
FREIGHT:
Freight
ORIGIN:
BRAND:
Ercolina logo
Voltage:
Quantity:

Configuration

DESCRIPTION

The Ercolina HB60 Hot Shot bender is a great choice for any fabricator needing to make consistent, repeatable bends. The HB60 features an easy to read degree wheel with a built in stop and is able to bend from 1/4 inch up to 2 inch OD tubing or 1-1/2 inch schedule 40 pipe.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Mild Steel Capacity (inches): 2 x .120
Round Aluminum Capacity (inches): 2 x .156
Nominal PIPE Capacity: 1-1/2 inch Sch 40
Minimum OD (inches): 1/4
Degrees Per Stroke: 180
Max Bending Speed: 20 seconds to 180 degrees
Bending Style: rotary draw
Min Center Line Radius (inches): 1/2
Max Center Line Radius (inches): 10-1/2
Max Degree of Bend: 180
Motor: 110v or 440v options
Control Method: hand control
Repeatability Control: yes
Maximum OD (inches): 2
Weight (pounds): 290
Dimensions (LxWxH): 27 x 15 x 39 inches

INCLUDES

  • HB60 Super Bender
  • Die sets sold separately. (Please see accessories tab)
