Huth 1673 Portable Expander/Swager

Part #: 1673
Ships From: Factory shipped

Lead Time: Usually ships within 2-4 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $7,455.50
Sale Price: $7,082.73

FREE SHIPPING

Save 10% on select Huth Bending and End Forming Tooling for a limited time!
Powerful 5 hp 220 volt motor
Expanding capacity from 1 inch to 5-1/2 inch

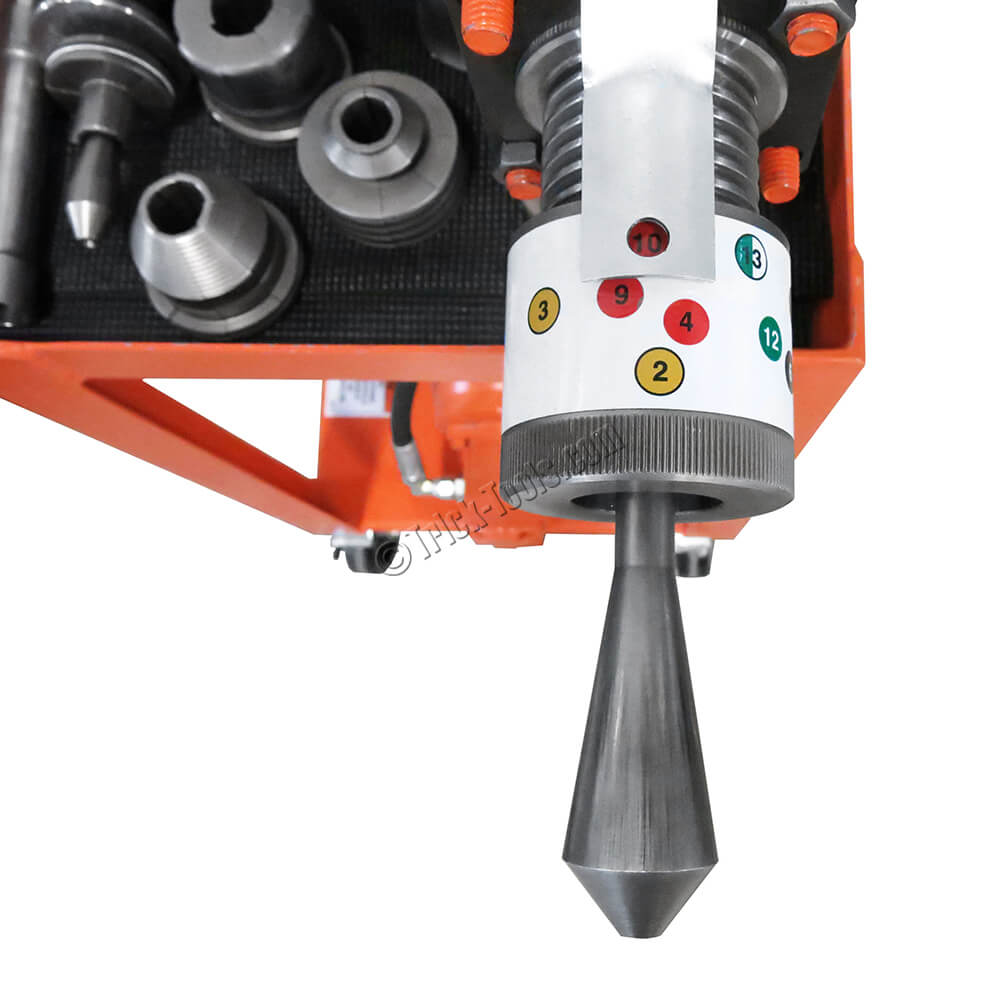

Features Huth's Accu-Sizer for quick, precise expanding
Swaging capacity from 1 inch to 3 inch

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

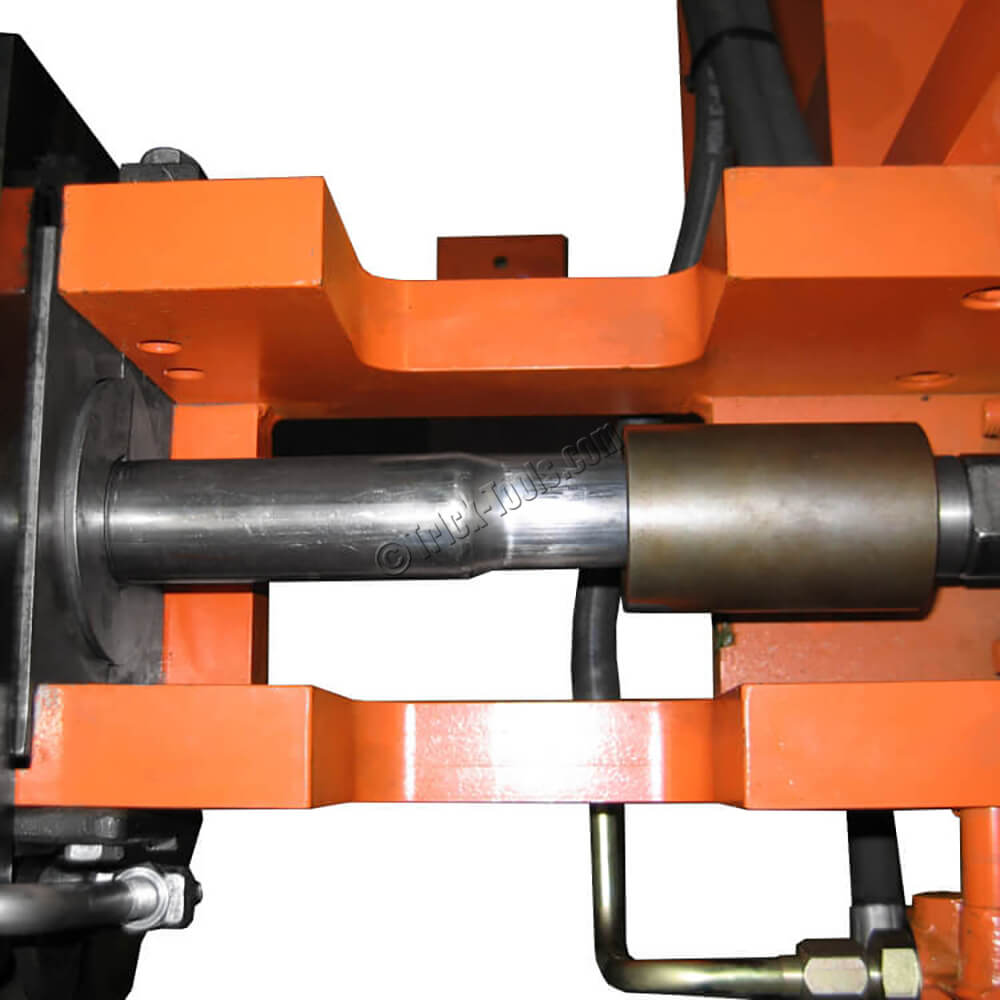

Huth's Model 1673 Portable Swager/Expander equips you to form ball joints, slip joints, flares and flanges and perform doming and reducing anywhere in your shop. This tubing expander and reducer has 25,000 lbs of power provided by 5 hp electric/hydraulic pump. It is also equipped with the Huth Accu-Sizer system which is an automatic preset expanding system that allows precise expanding every time.

Expanding and beading capacity ranges from 1 inch to 5-1/2 inch (additional tooling required), and tube swaging, reducing, and flaring capacity up to 3 inch OD.

Mounted on its own easy-wheeling cart with heavy duty casters and a 15 foot power cord, this machine is great for end forming mild steel, aluminum, stainless steel, black pipe, and tubing.

Save 10% on select Huth Bending and End Forming Tooling for a limited time! Customers can save 20% on tooling when purchased with a machine. Please contact our sales staff to take advantage of this limited time offer! This sale excludes Tooling Packages. Sale ends 8/31/25.

Warranty:

1 year manufacturer's warranty
