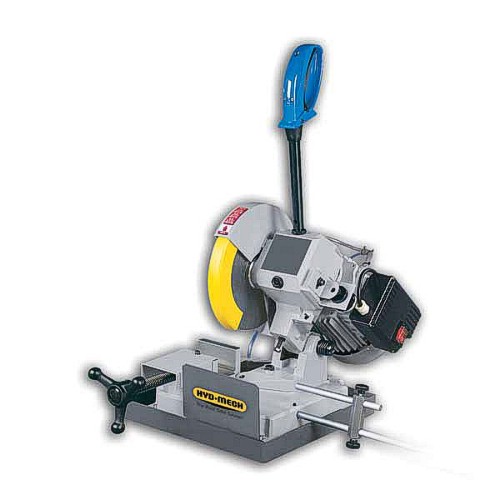

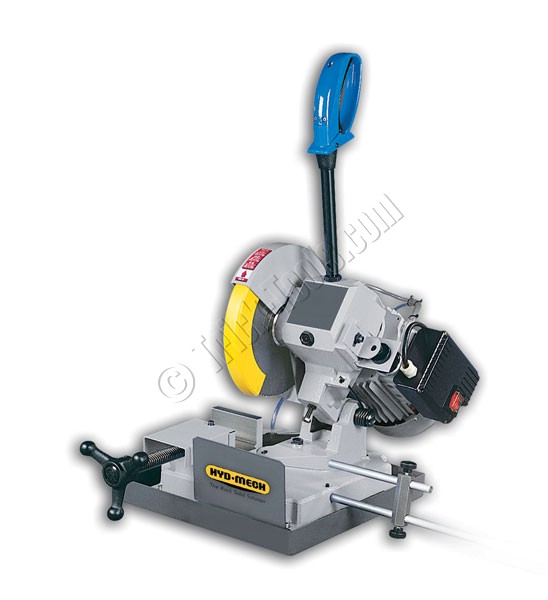

Hyd-Mech P225 Bench Model Manual Cold Saw

Part #: P225-HM

Lead Time: Discontinued

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,300.00

Miters 45 degrees left
1 hp motor
110 volt

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The Hyd-Mech P225 Cold Saw is a lightweight bench model that can be easily moved to various workstations to complete cutting operations throughout the shop or on the job site. Durable cast iron construction means that the P225 can cut solids, tubing and structural shapes quickly, with a smooth, mill-like finish. Miter cuts are easily achieved with a head that moves 45 degrees left. High quality saw construction utilizes a bronze worm gear and hardened ground worm screw gear box in an oil bath. Lubrication is provided to the blade and material by the integral coolant system during the cutting process.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: benchtop
•Motor: 1.0 hp, 110 volt
•Blade Size (inches): 9 (225mm)
•Number of Speeds: 1
•Speed(s): 50 rpm
•Mitering Range: 45 degrees left
•Round Solid Capacity 90 Deg (inches): 1
•Round Solid Capacity 45 Deg (inches): 1/2
•Round Tube Capacity 90 Deg (inches): 2-1/2
•Round Tube Capacity 45 Deg (inches): 2
•Square Tube Capacity 90 Deg (inches): 2-1/4
•Square Tube Capacity 45 Deg (inches): 1-3/4
•Rectangle Tube Capacity 90 Deg (inches): 2 x 2-1/2
•Rectangle Tube Capacity 45 Deg (inches): 1 x 1-1/2
•Weight (pounds): 83
•Dimensions (LxWxH): 16 x 20 x 60
