JET GH-1440 Geared Head Lathe, 220v 3ph

Part #: GH-1440-3
Ships From: Factory shipped
Lead Time: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $23,097.09
Sale Price: $18,799.99
  • Multiple configuration options available
  • 3hp 230v, 3 phase motor
  • 14 x 40 inch capacity
  • Electronic Chuck Key Docking Station
FREIGHT:
Freight
WARRANTY:
Jet Red Assurance
ORIGIN:
BRAND:
JET logo
Options:
Quantity:

Configuration

DESCRIPTION

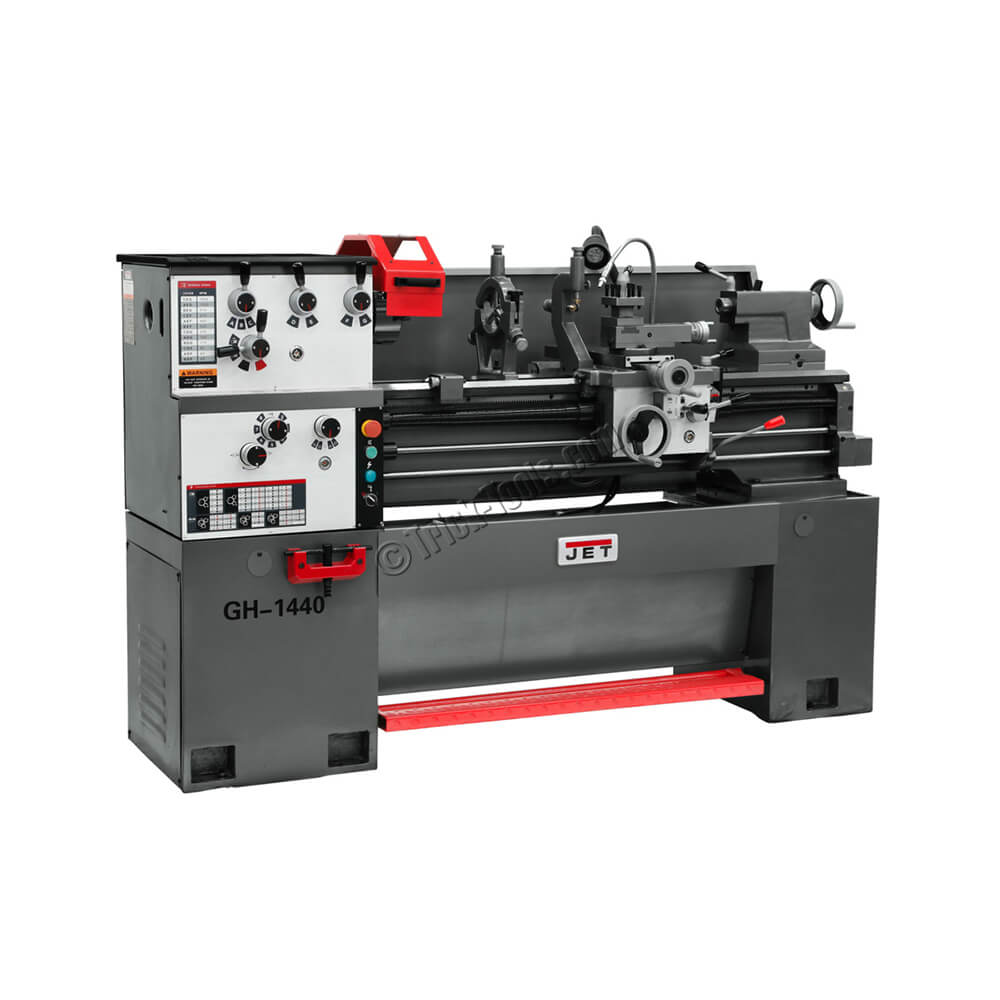

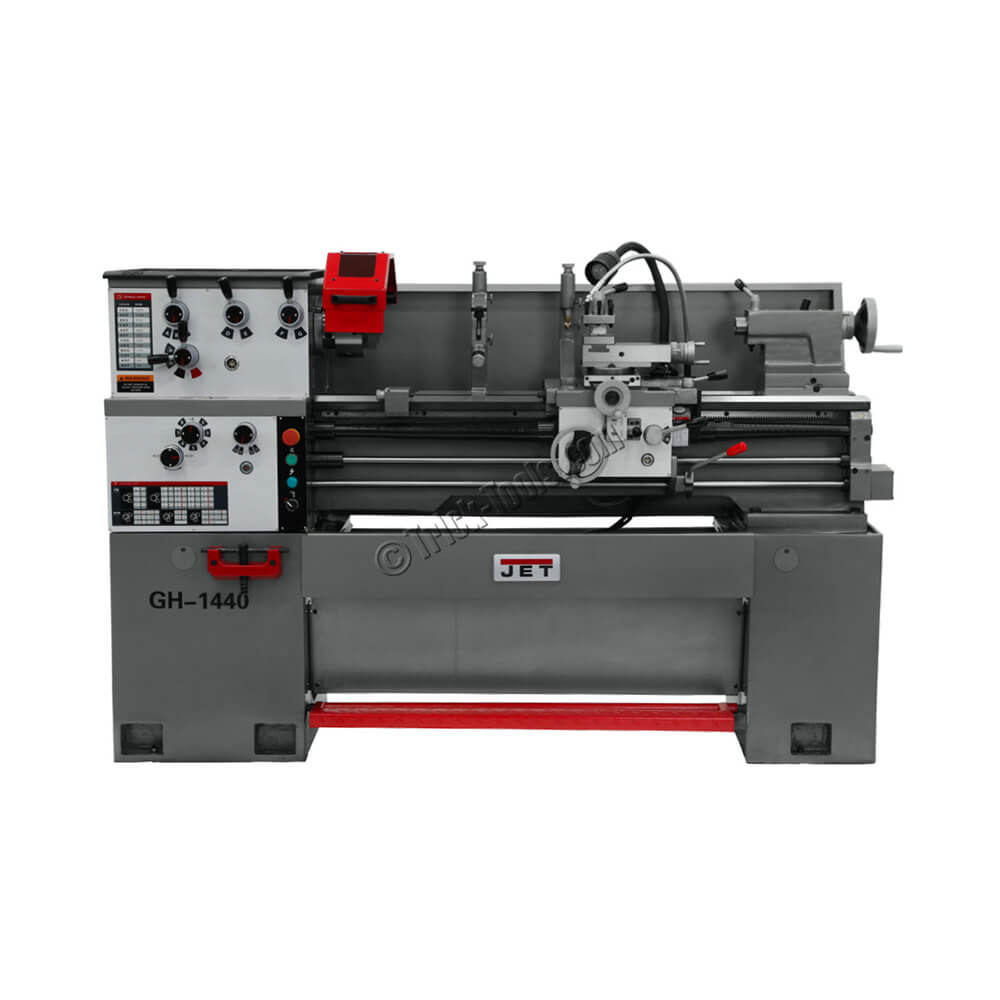

The 14 x 40 lathe is a staple machine in most job shops and the JET GH-1440 Geared Head Lathe is ready for yours. It features an enclosed gearbox that ensures smooth and quiet operation and its precision roller bearings support a hardened and ground spindle, allowing for tight tolerances essential in high-quality machining.

The headstock is continuously oiled during operation, minimizing maintenance needs, and all JET lathes come with the industry-leading JET Red Assurance Two-Year Warranty. Additional features include an independent lead screw and feed rod, apron-mounted spindle actuation control, and option to offset the tailstock for taper turning, ensuring versatility and precision in various machining tasks.

This lathe is equipped with a 6 inch 3-jaw direct mount chuck with a top reversing jaws, 8 inch 4-jaw check with top reversing jaws, 12 inch face plate, a steady rest, follow rest, and LED work light. Optional accessories can be found in the options drop down or on the accessories page and include ACU-RITE or Newall digital read out options, taper attachment, collect closer, and more.

Safety is always a top priority and the GH-1440-1 is one of a few machines that offer an Electronic Chuck Key Docking Station. This ensures the machine will not active without the chuck being seated in the docking station. Another important safety feature on this machine is the foot pedal e-brake to quickly stop the machine in case of an emergency.

Not seeing the configuration or voltage you need or have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

    Capacities:
  • Swing Over Bed: 14 inches
  • Swing Over Cross Slide: 8.19 inches
  • Swing Through Gap: 20 inches
  • Length of Gap: 9.37 inches
  • Distance Between Centers: 40 inches

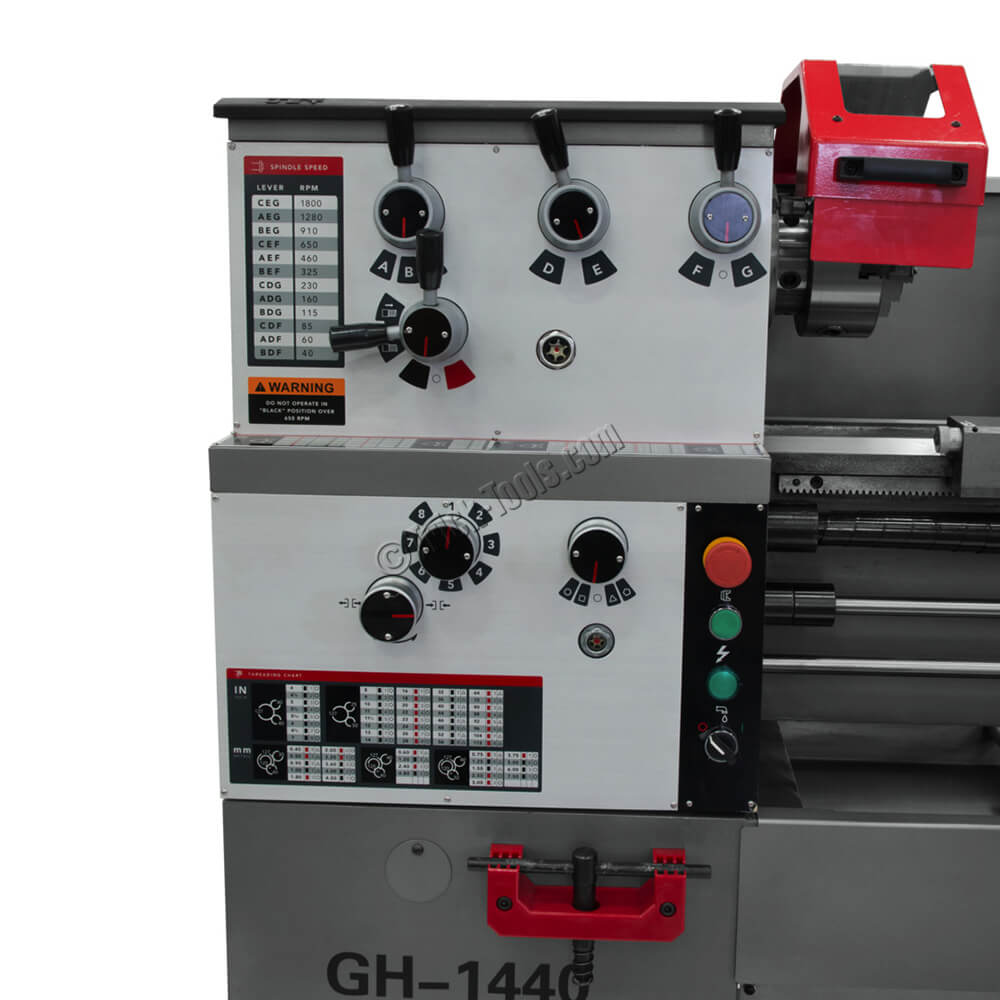

    Headstock:
  • Hole Through Spindle: 1.5 inch
  • Spindle Nose: D1-4
  • Taper in Spindle Nose: MT-5
  • Spindle Taper Adapter: MT-3
  • Spindle Bearing Type: Taper Roller Bearing
  • Number of Spindle Speeds: 12
  • Range of Spindle Speeds: 40-1800 RPM

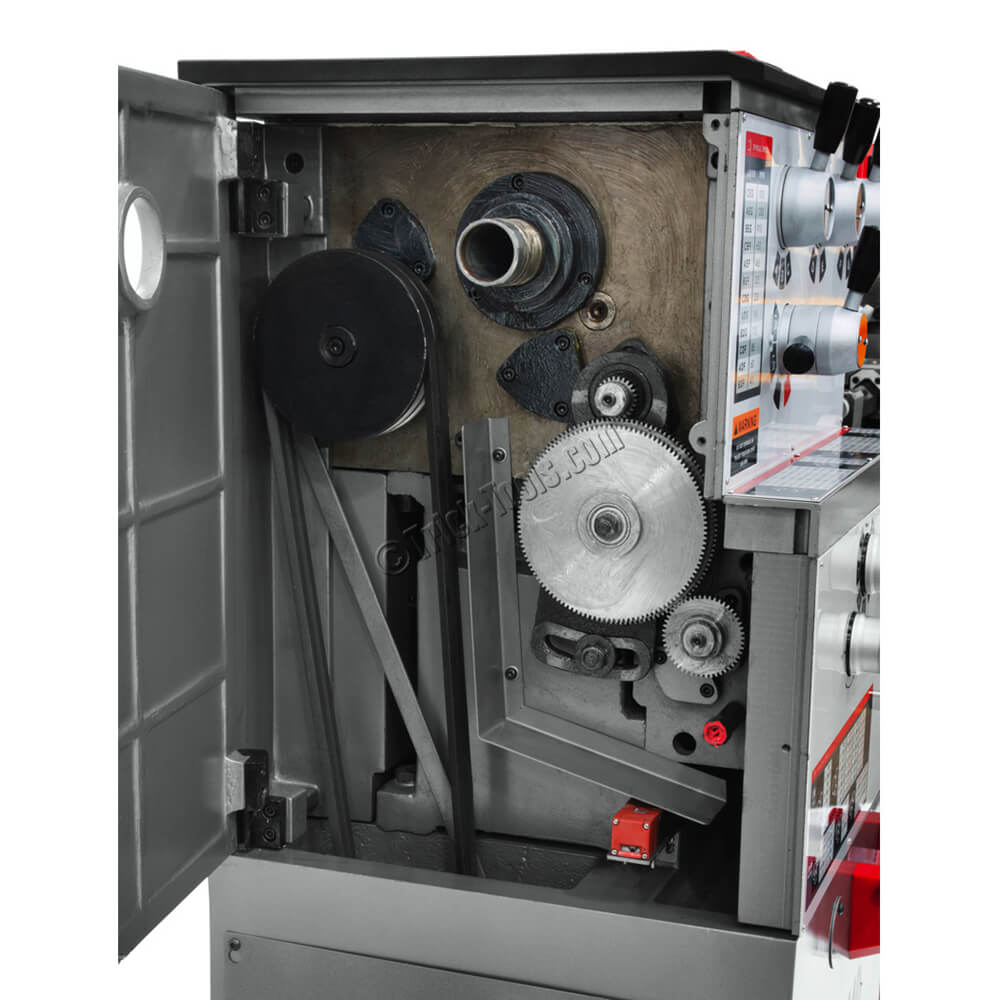

    Gearbox:
  • Number of Longitudinal and Cross Feed Rates: 44
  • Range of Longitudinal Feeds (inch/rev): 0.0012 – 0.0294
  • Range of Cross Feeds (inch/rev): 0.0004 – 0.0103
  • Number of Inch Threads: 40
  • Range of Inch Threads: 4 – 112 TPI
  • Number of Metric Threads: 23
  • Range of Metric Threads: 0.45 - 7.5mm
  • Leadscrew: 7/8 × 49-1/2 in. 8 TPI
  • Feed Rod Diameter: 3/4 inch

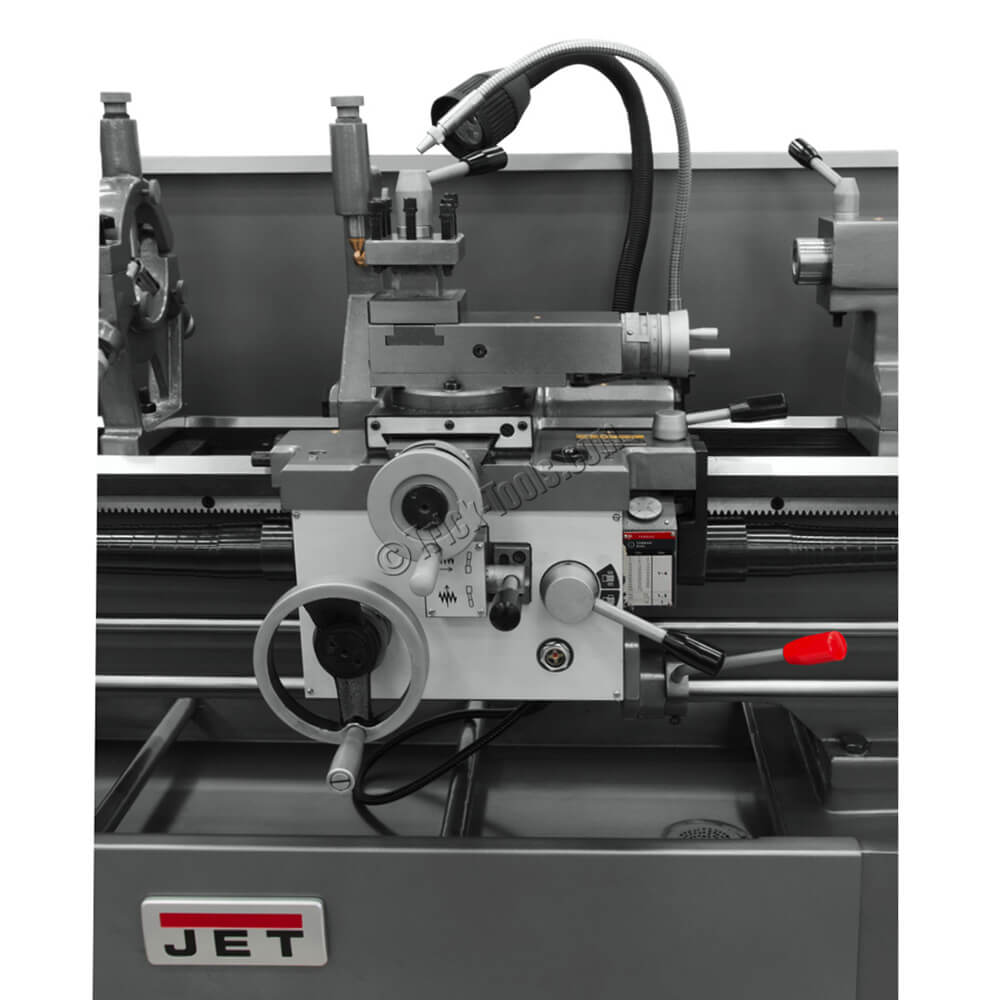

    Compound and Carriage:
  • Toolpost Type: 4-Way
  • Maximum Tool Size: 5/8 x 5/8 inch
  • Maximum Compound Slide Travel: 3-1/2 inches
  • Maximum Cross Slide Travel: 6.375 inches
  • Maximum Carriage Travel: 37.5 inches

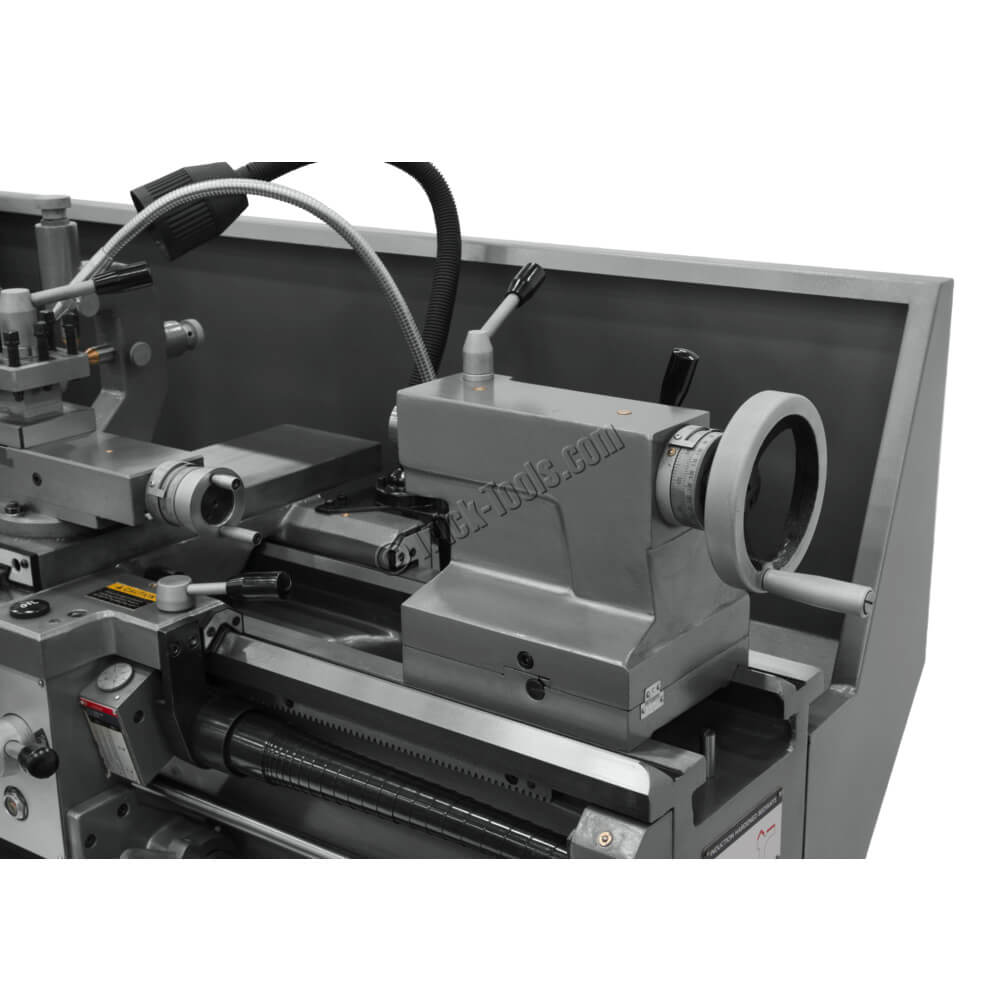

    Tailstock:
  • Tailstock Spindle Travel: 4-3/4 inches
  • Diameter of Tailstock Spindle: 1-3/4 inches
  • Taper in Tailstock Spindle: MT-3

    Miscellaneous:

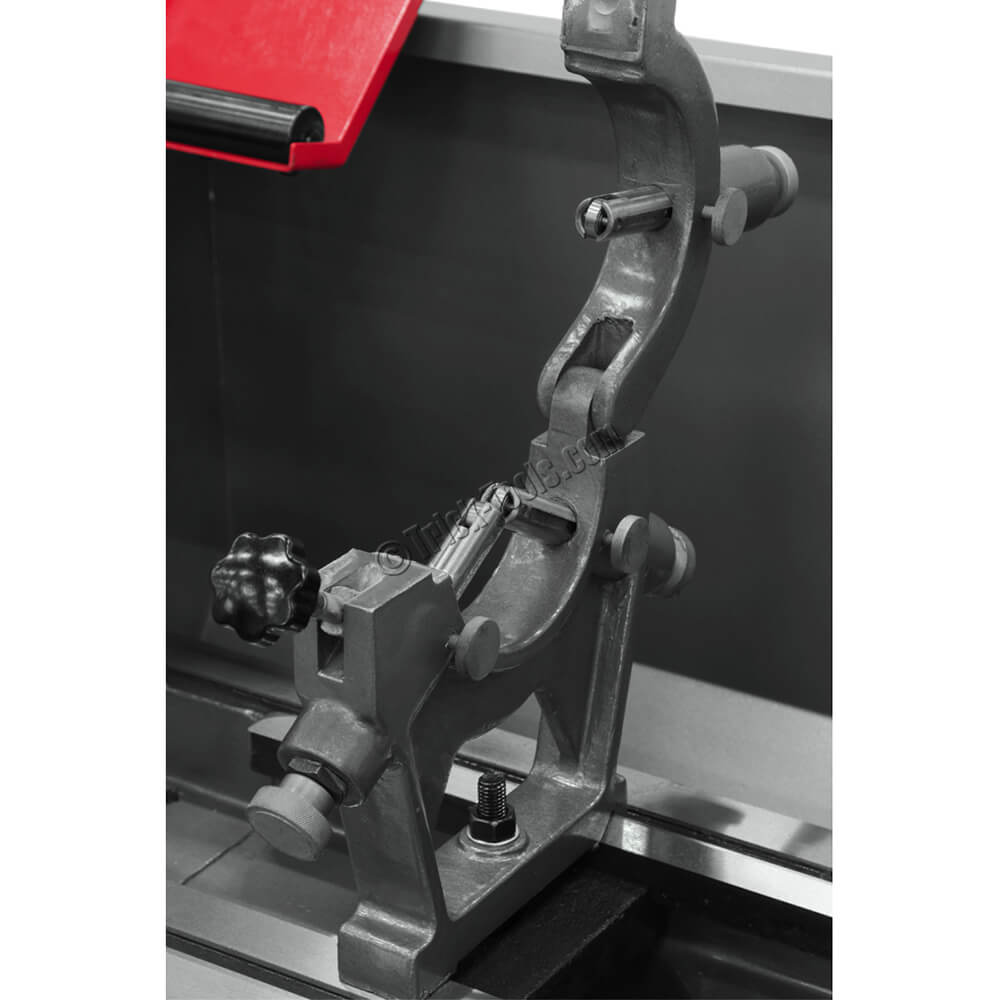

  • Steady Rest Capacity: 1/4 – 3-1/2 inches
  • Follow Rest Capacity: 1/4 – 2-5/8 inches
  • Length of Bed: 54-1/2 inches
  • Width of Bed: 10-3/16 inches
  • Height of Bed: 12-3/4 inches
  • Overall Dimensions: 74.8 x 28 x 46 inches (LxWxH)
  • Main Motor: 3HP, 3PH, 230V (440v 3ph available by request)
  • Net Weight (approx.): 2,116 lbs
  • Shipping Weight (approx.): 2,336 lbs


Warranty:

2 year manufacturer's warranty

INCLUDES

  • JET GH-1440 Geared Head Lathe
  • 6 inch 3 Jaw Chuck
  • 8 inch 4 Jaw Chuck
  • 12 inch Face Plate
  • Steady Rest
  • Follow Rest
  • Tool Box


Additional options:
  • ACU-RITE or Newall DRO (Digital Read Out)
  • Taper Attachment
  • Collect Closer
