JMR TB-1000 Electric/Hydraulic Tubing Bender

Part #: TB-1000
Ships From: Factory shipped

Lead Time: Usually ships within 4-6 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $1,995.00

2-1/2 inch OD capacity
110v electric/hydraulic power
Optional long stroke cylinder
Available with optional die package

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The JMR TB-1000 Tube Bender is a professional quality tube bender for the fabricator who wants an electric bender but needs to work within a budget. Dies are available for round and square tubing as well as nominal pipe sizes (NPS).

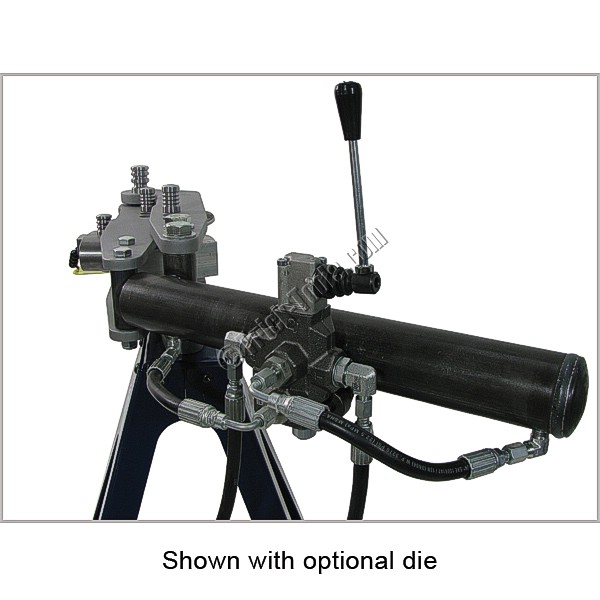

This unit features electric/hydraulic power with a control valve mounted on the bender which will operate the bender at approximately 3 times the speed of air/hydraulic powered machines. All JMR hydraulic benders feature a powered cylinder return for faster cycle times and more consistent zero point. Optional, is a longer cylinder which can perform a 90 degree bend in one stroke!

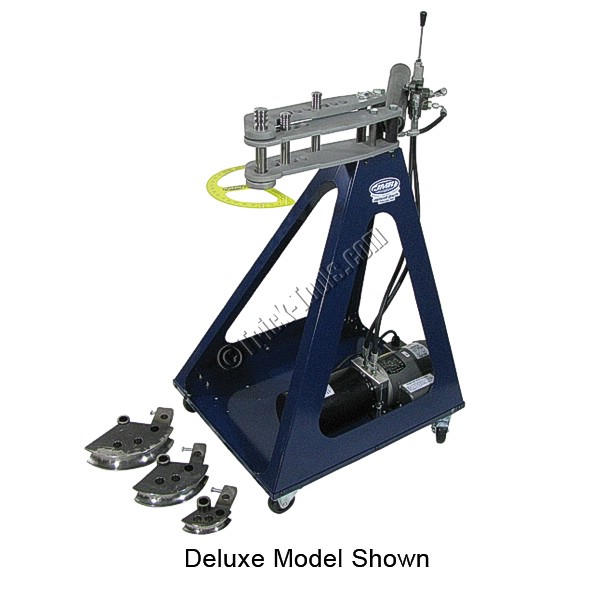

Save! with optional Deluxe Tooling Package:

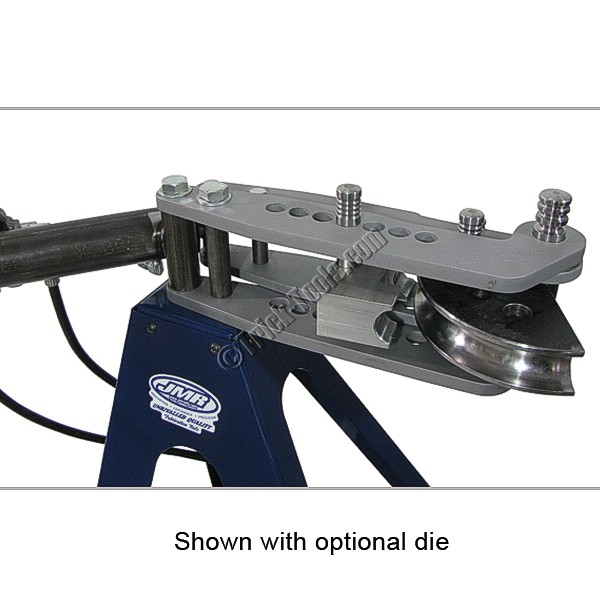

1 inch OD x 3 inch radius, 120 degree RaceLine die set
1-1/2 inch OD x 5 inch radius, 120 degree RaceLine die set
1-3/4 inch OD x 6 inch radius, 120 degree RaceLine die set
Steel degree ring and pointer

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Chrome Moly Capacity (inches): 2 x .188
•Round Aluminum Capacity (inches): 2-1/2 x .120
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .120
•Minimum OD (inches): 1/2
•Bending Style: rotary draw
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 8
•Max Degree of Bend: 180
•Motor: 110 volt
•Control Method: hydraulic valve control
•Maximum OD (inches): 2-1/2
