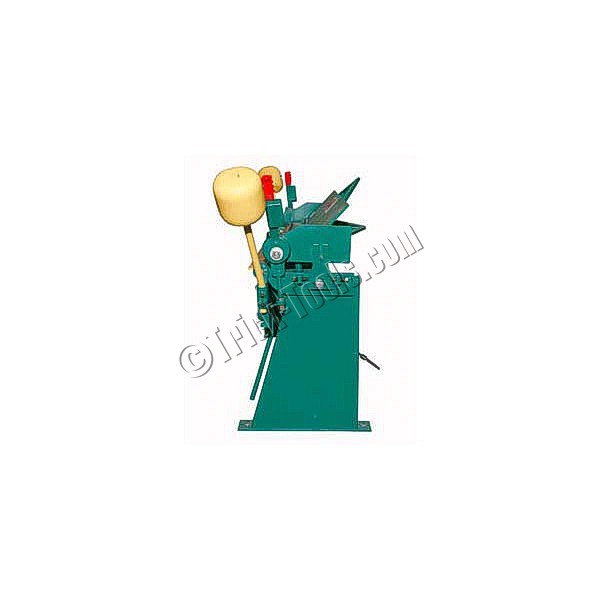

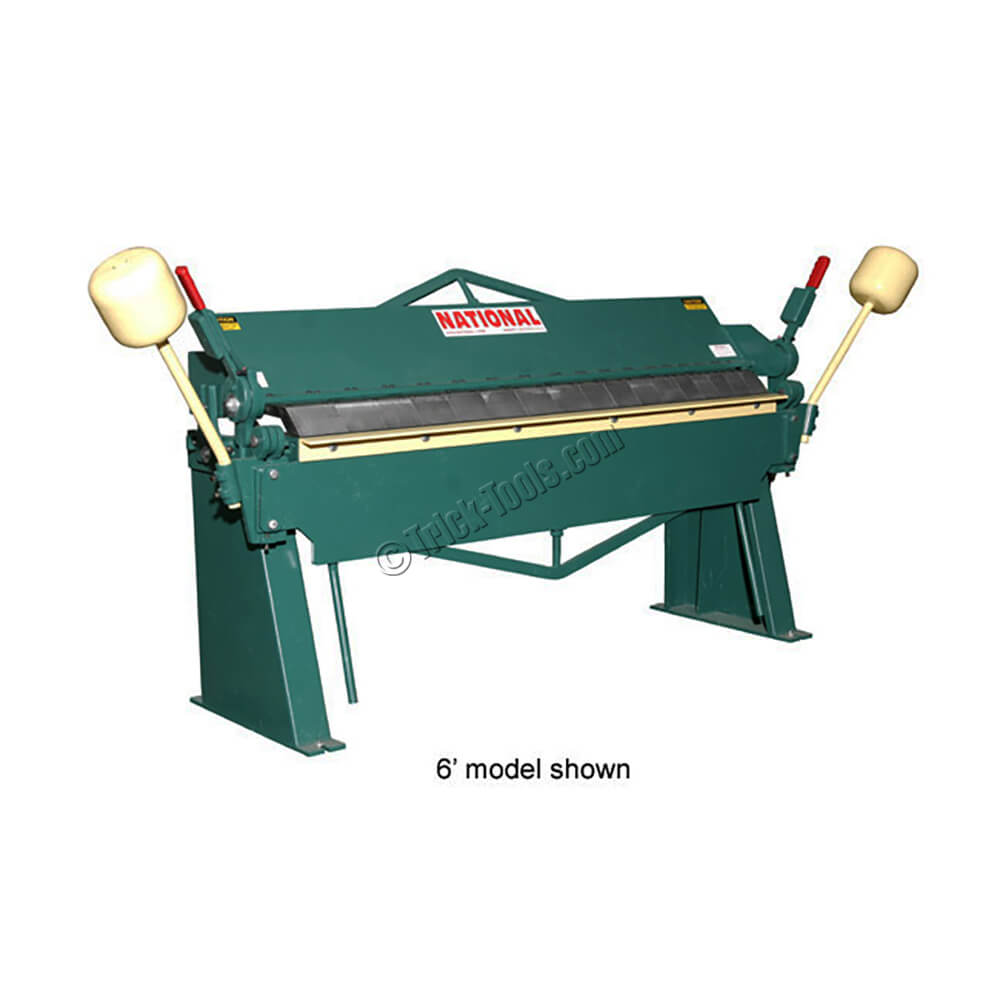

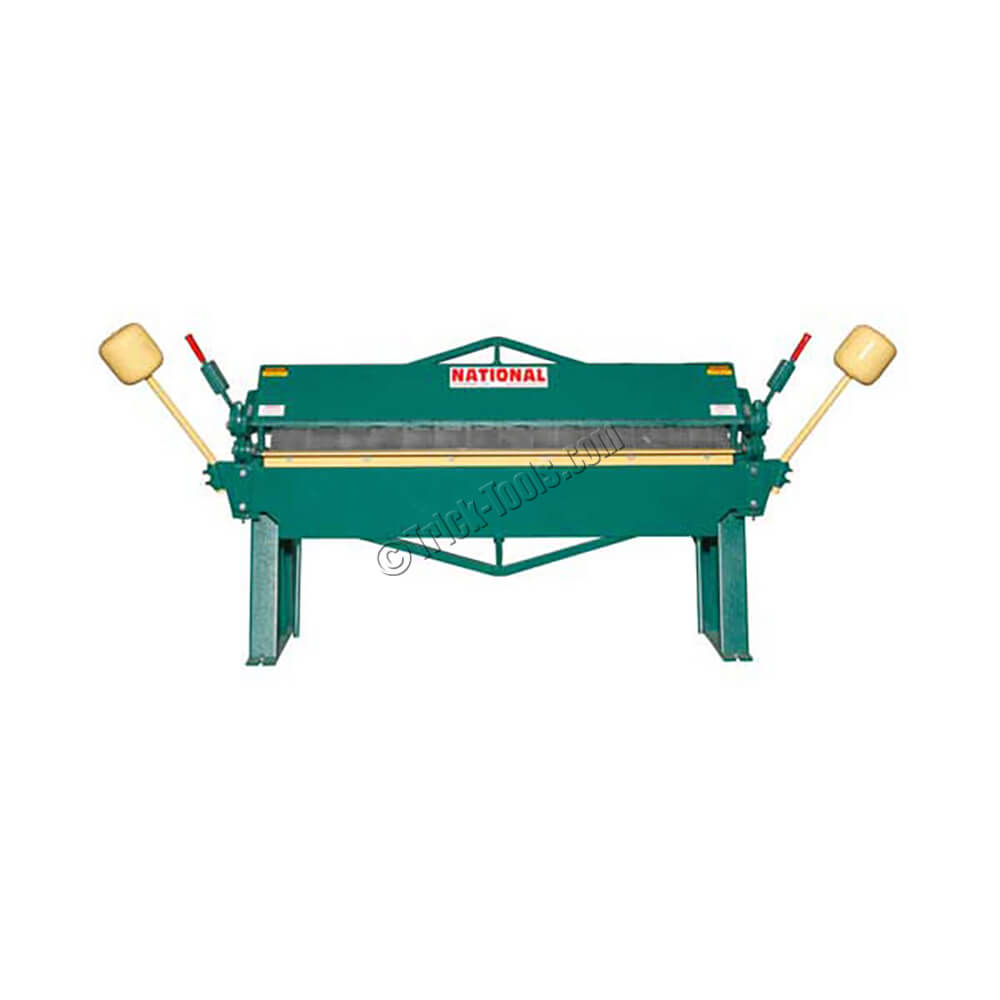

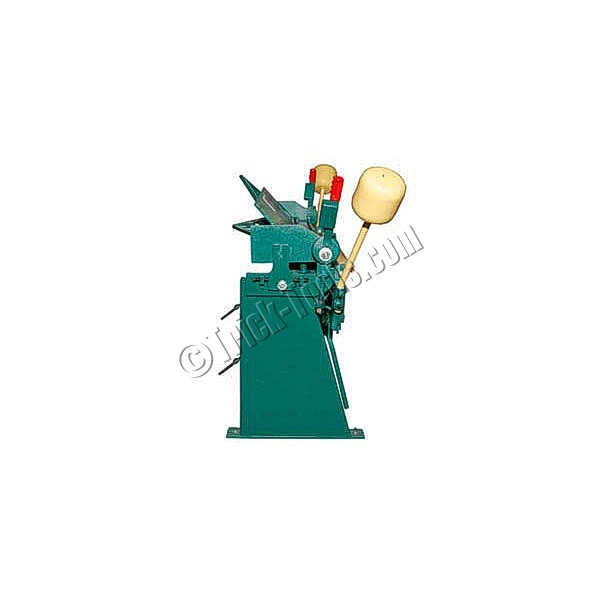

National 6 foot Heavy Duty Box & Pan Brake, 12 gauge

Part #: U6-7212
Ships From: Factory shipped
Lead Time: Lead times vary - Call for availability
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $7,730.00
  • 6 inch maximum depth of box
  • Apron stop for repeat bends
  • Heavy duty steel construction
  • Quick finger adjustment
FREIGHT:
Freight
ORIGIN:
BRAND:
National logo
Quantity:

DESCRIPTION

This National 72 inch 12 gauge box and pan brake features a unique 6 inch depth of box compared to 4 inch of depth on standard models. Heavy body construction, precision bearings on the apron, two large cast iron counterweights and an apron stop for repeat bends make this box and pan brake a great value.

Section fingers are precision machined from rolled steel bar stock for maximum strength, and can be quickly adjusted or removed by loosening a thumb screw. Heavy tension bars are also included for minimum deflection.

Note: Liftgate delivery is not available for this item.

Warranty:

5 year manufacturer's warranty

SPECIFICATIONS

Type: manual
Mild Steel Capacity: 12 gauge (2.6mm)
Stainless Capacity: 16 gauge (1.6mm)
Working Length (inches): 72
Max Depth Of Box (inches): 6
Minimum Flange Capacity (inches): 1
Number/Width Of Fingers: (5) 3 inch, (4) 4 inch, (7) 5 inch, (1) 6 inch
Max Forming Length (inches): 73
Weight (pounds): 2530
Dimensions (LxWxH): 127 x 29 x 59
