Roper Whitney No. 134 Hydraulic Punch Press

Part #: 133310134
Model: No. 134
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $14,575.00

8 tons of punching power
230v 3 phase motor
24 inch throat depth
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

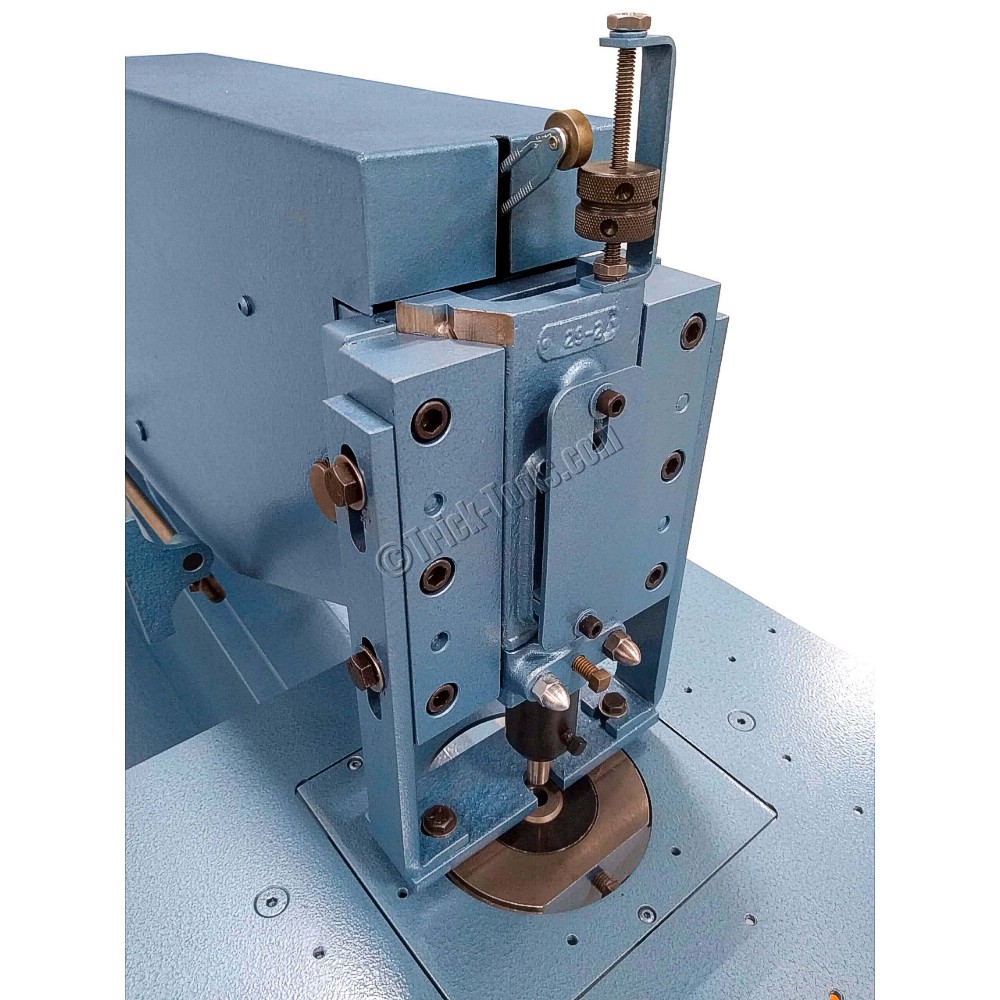

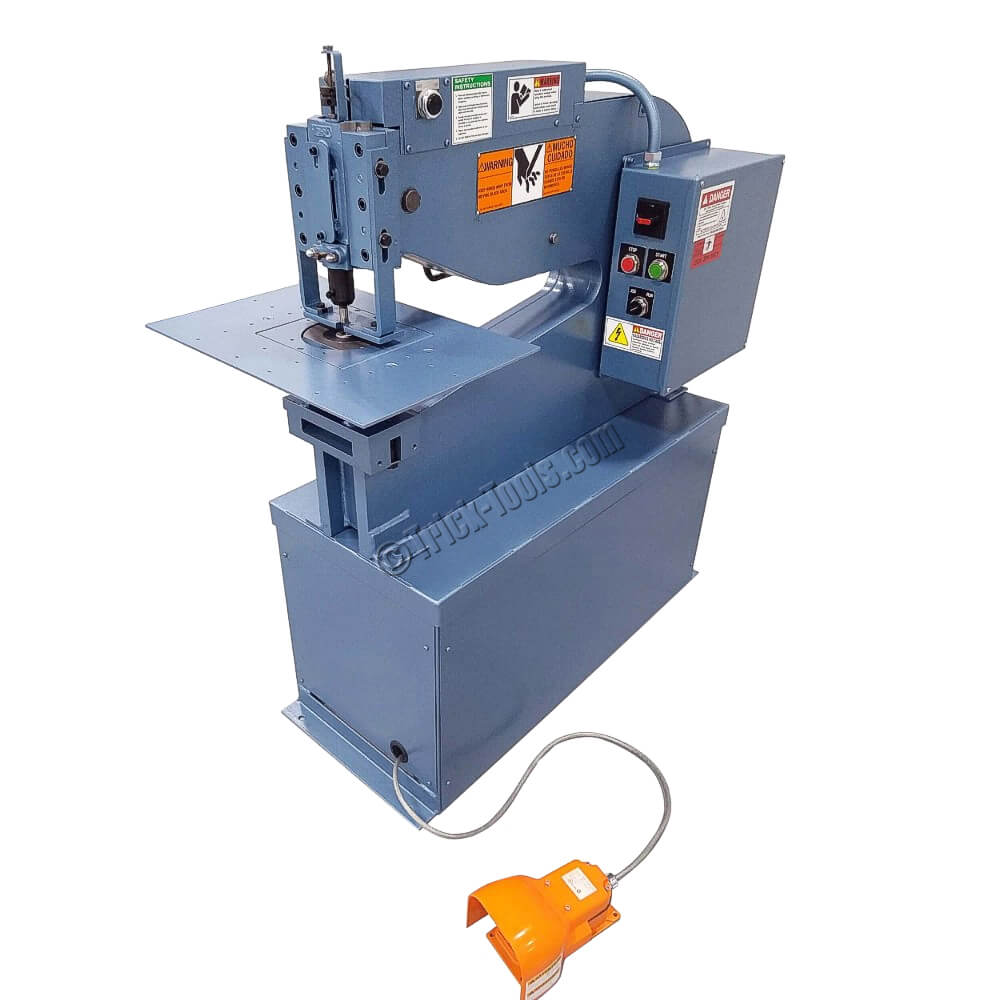

The No. 134 hydraulic punch upgrades your production capabilities with a large 24-inch throat depth and fast punching speeds. This punch has a control system that allows the operator to choose jog (for set-up) or run (for production) simply and conveniently. It also has adjustable stroke length and full override capability. Includes standard equipment: Side gauge, depth gauge, one F8 and F28 punch holder, one No. 20 and N. 40 die adapter, H2 3/4 die shoe, one 1/2 round punch and die set, one set of stripper arms, A7 stripper plate, and a gauge work table.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 8 tons
•Tool Opening (inches): 1
•Stroke (inches): 1
•Throat Depth (inches): 24
•Throat Height (inches): 10 (at ram)
•Voltage: 220/440 volt, 3 phase
•Weight (pounds): 1100
•Dimensions (LxWxH): 44 x 18 x 51
