Roper Whitney No. 20 Heavy Duty Portable Punch

Part #: 130030200
Model: No. 20
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $711.00

20 tons of punching power

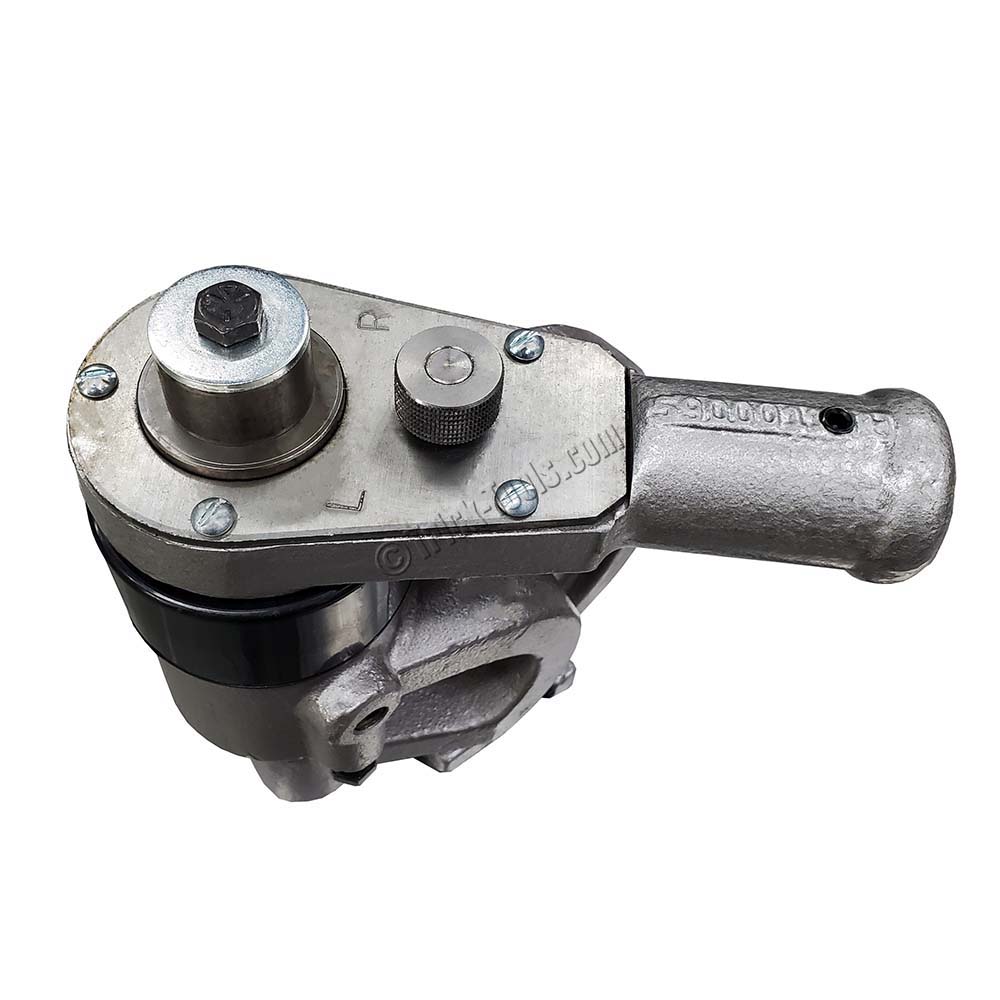

Rotary style operation
Punch moves 1/2 inch with one rotation of handle
Max punch size 13/16

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

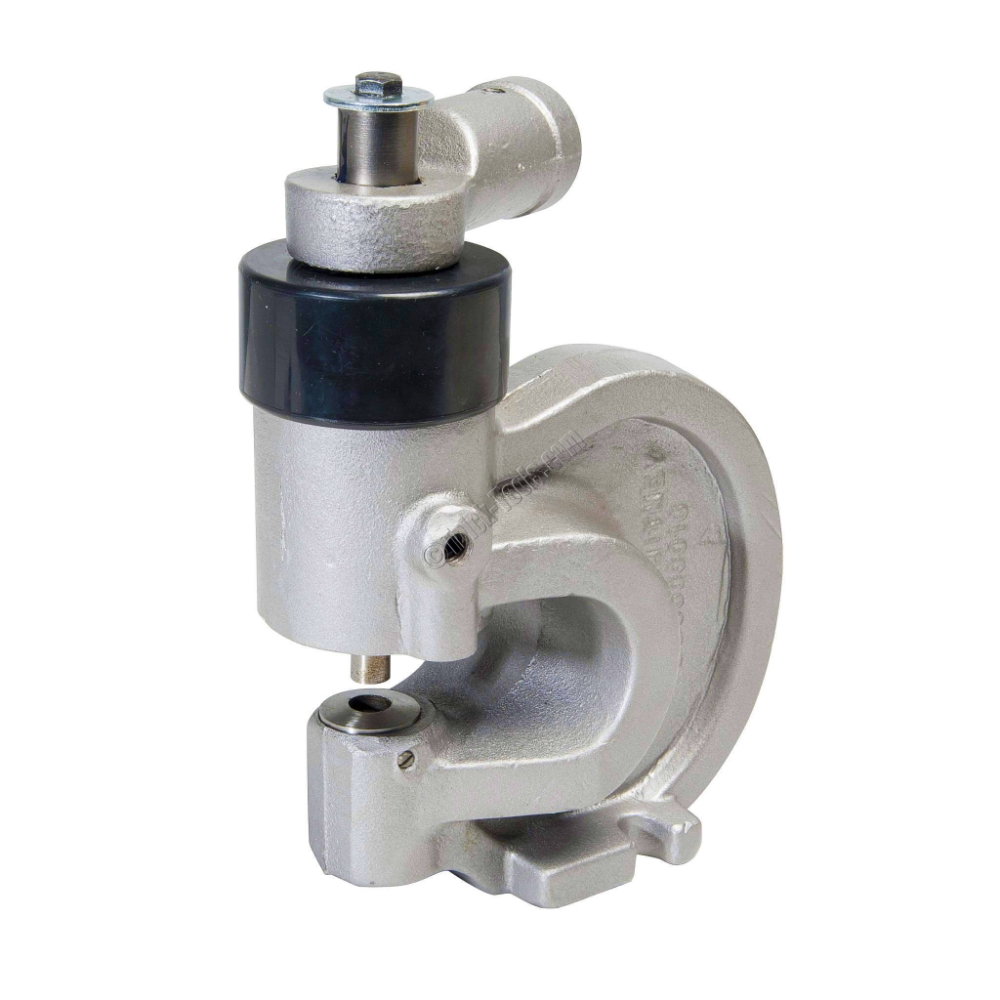

The Roper Whitney No. 20 Heavy-Duty punch delivers 20 tons of punching power and can be mounted to a bench or taken into the field for work on the job site. This rotary-style punch generates enough power to punch a 1/2 inch hole through 1/2 inch mild steel plate. The throat of the punch allows for punching holes up to 2-1/4 inches from the edge of the material.

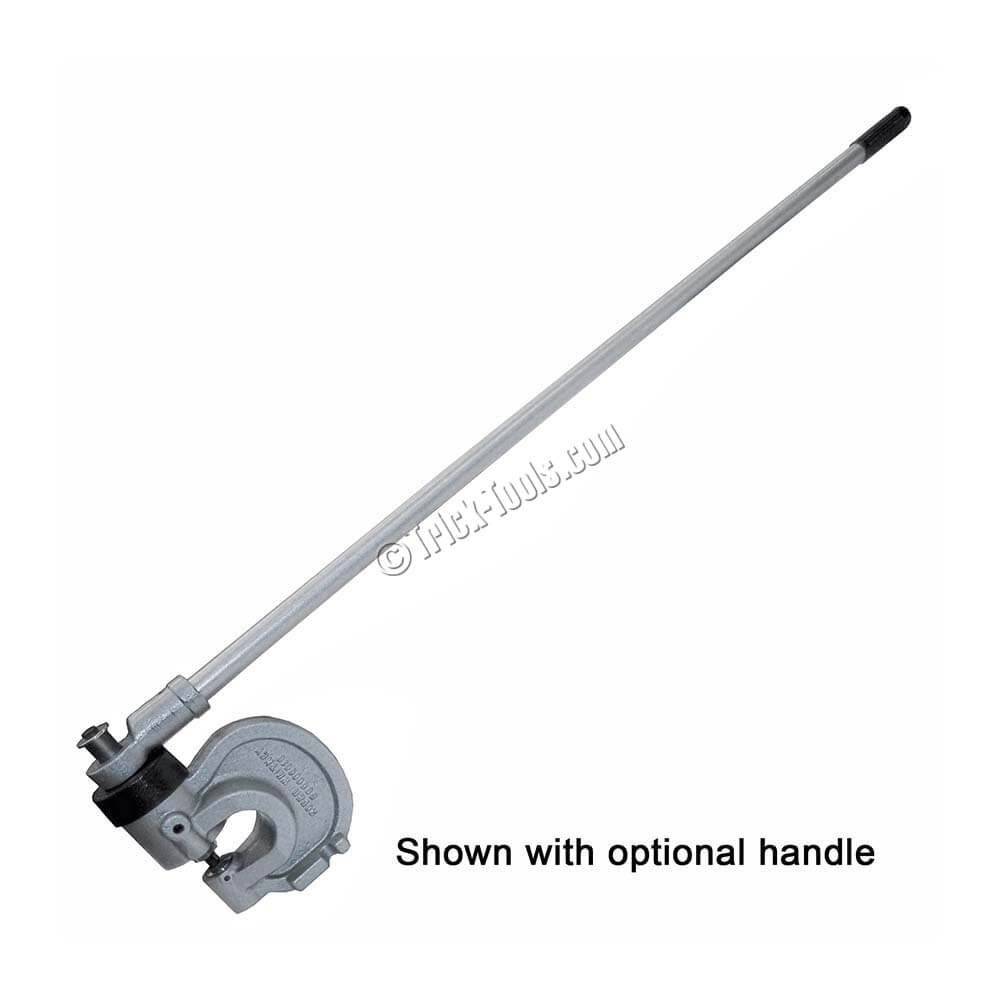

3/4 inch pipe (1.050 in OD) up to 4 ft long can be used for a handle. A 4 ft section of handle material with a grip is available for purchase. An optional ratchet handle is also available to operate the punch in close quarters. See the Accessories tab.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 20 tons
•Tool Opening (inches): .75
•Throat Depth (inches): 2.25
•Throat Height (inches): 1.625
•Weight (pounds): 25
•Dimensions (LxWxH): 7 x 11.5 x 6 (less handle)
