Scotchman Heavy Duty 4 inch Abrasive Tube Notcher

Part #: AL100U-01
Ships From: Factory shipped

Lead Time: Usually ships within 2-4 days

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,795.00

Hand lever feed vise
Heavy duty frame and base construction
Top-mounted grinding surface
Notches 3/4 to 3 inch OD
Includes 2 pipe mandrels and 2 belts

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

Scotchman Abrasive Tube Notchers are fast and cost effective methods to fit tubes together prior to welding. The high speed grinding belt provides a smooth polished surface at any angle from 0 to 60 degrees in tubing from 3/4 inch up to 3 inch OD. The guarded belt surface on top is ideal for grinding or deburring. Belt life is generally around 100-200 copes per belt depending on material. Two pipe mandrels and two belts are included and change out in seconds with no tools required.

Other features include:

Hand lever feed and manual vise adjustment left and right
Heavy duty frame and base construction
Mandrel center-line adjustment
One vise holds all pipe and tube sizes
Top-mounted grinding surface
Vise graduated in degrees for easy set up
Notches 3/4 inch to 3 inch diameter
Choose from 13 mandrel diameters to ensure correct gap-free fit
Mandrels can be changed quickly for different notch sizes
Tool free belt and mandrel change over
Quiet operation below 80 decibels
Smooth operation with minimal vibration
Solid aluminum drive wheel.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Motor: 4 hp
•RPM: 3420

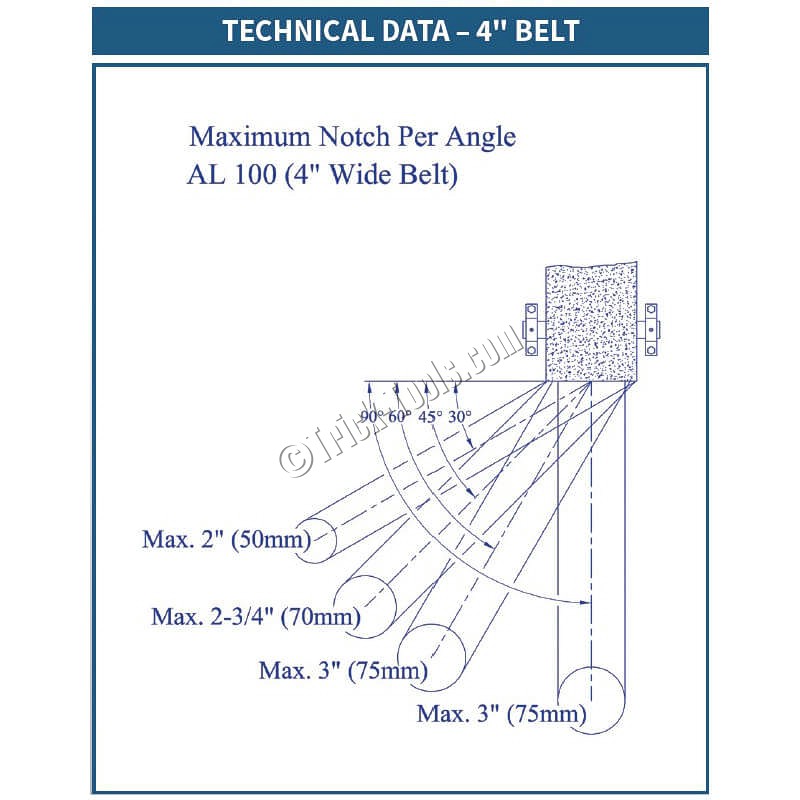

•Max Notch Angle: 60 degrees
•Max Diameter: 3 inch
•Min Diameter: 3/4 inch
•Belt Width (inches): 4
•Speed: 98.4 feet per second
•Weight (pounds): 419
•Dimensions (LxWxH): 59 x 47 x 19.5
