Ercolina TB130 Tubing Bender

Part #: TB130
Model: TB130, TB130P, TB130TLR, TB130TSR
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $63,800.00

NEW

5 inch OD capacity
Electric gear drive
One touch simple programming

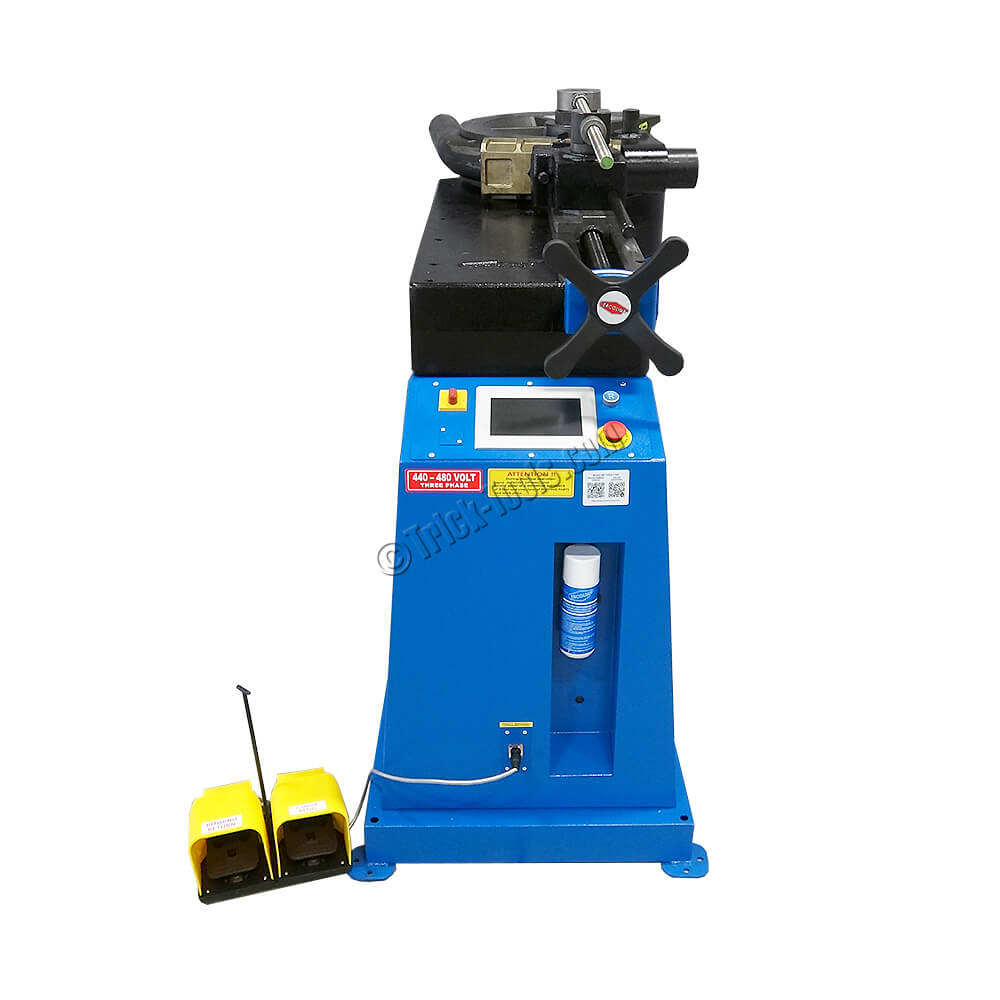

Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

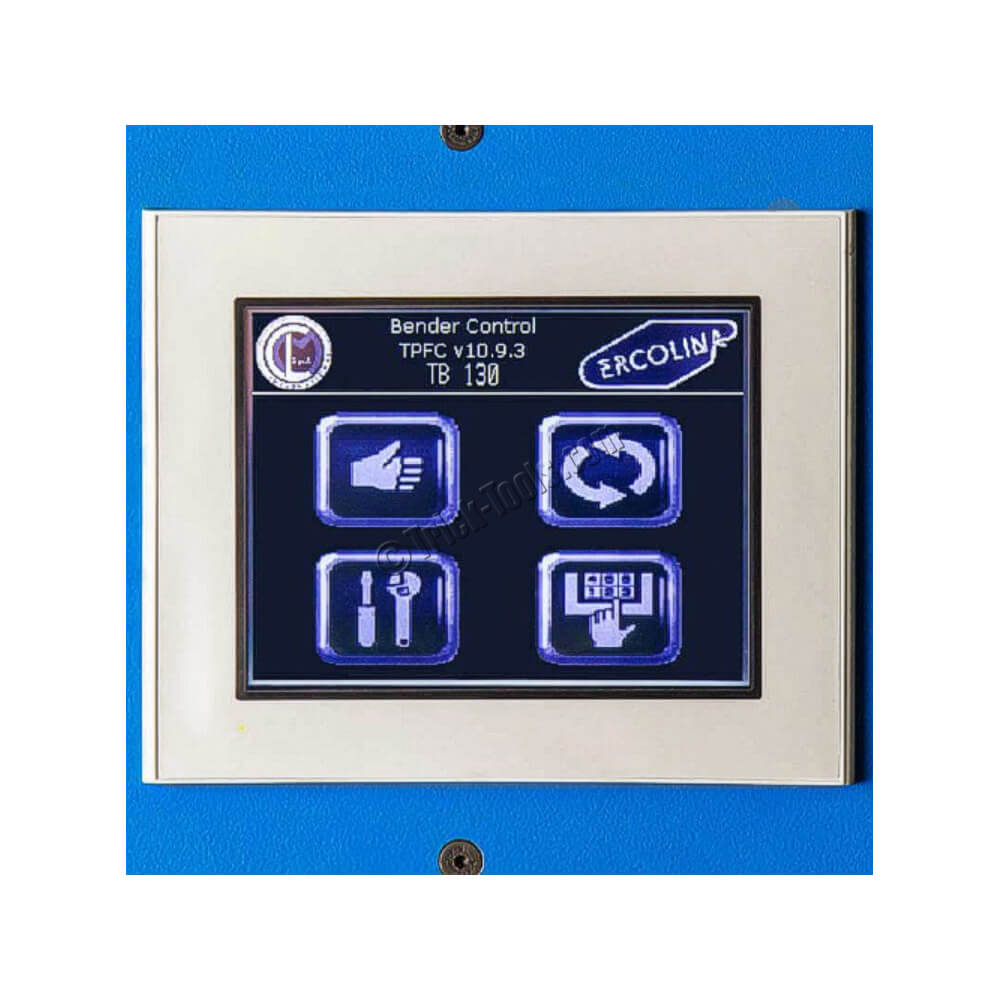

Ecrolina offers a large variety of high-quality benders and toward the larger end is the TB130 Top Bender which has an impressive 5 inch round tubing or 4 inch Schedule 40 pipe capacity and centerline radii up to 27-1/2 inches. The programmable touch screen can handle up to 12 bends per program and an unlimited number of programs when used with a removable USB drive.

Select a tooling package when purchasing this bender and SAVE!

PIPEKIT4 (5 piece kit)

1-1/4 NPS (1.660 inch OD) x 3.5 inch CLR
1-1/2 NPS (1.900 inch OD) x 3.9 inch CLR
2 NPS (2.375 inch OD) x 5.9 inch CLR
2-1/2 NPS (2.875 inch OD) x 11.8 inch CLR
3 NPS (3.500 inch OD) x 11.8 inch CLR

TUBEKIT1SR (6 piece kit)

3/4 inch OD x 2.6 inch CLR
7/8 inch OD x 2.2 inch CLR
1 inch OD x 2.6 inch CLR
1-1/4 inch OD x 3.2 inch CLR
1-1/2 inch OD x 3.9 inch CLR
2 inch OD x 5.9 inch CLR

TUBEKIT1 (7 piece kit)

3/4 inch OD x 2.6 inch CLR
7/8 inch OD x 2.6 inch CLR
1 inch OD x 3.2 inch CLR
1-1/4 inch OD x 4.4 inch CLR
1-1/2 inch OD x 5.9 inch CLR
1-3/4 inch OD x 6.7 inch CLR
2 inch OD x 7.5 inch CLR

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 5
•Round Dom Capacity (inches): 5
•Nominal PIPE Capacity: 4 inch Sch 40 (3 Sch 80 Stainless)
•Square Mild Steel Capacity (inches): 4 x .125
•Solid Bar Mild Steel Capacity (inches): 2-1/2
•Minimum OD (inches): 1/4
•Min Center Line Radius (inches): 2
•Max Center Line Radius (inches): 27-1/2
•Max Degree of Bend: 180
•Motor: 440v, 3 phase (220v, 3 phase by request)
•Control Method: programmable on board computer
•Maximum OD (inches): 5
•Weight (pounds): 1,330
•Dimensions (LxWxH): 34 x 34 x 37 inches
