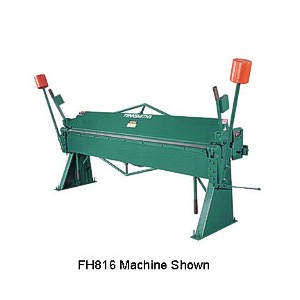

Tennsmith 8 foot Economy Straight Brake, 16 gauge

Part #: FH816
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,900.00

Easily adjusted
Replaceable nose bar and apron inserts
Fully adjustable counter weights
Greasable pivot points

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

Tennsmith FH series standard duty brakes are an economically-priced solution for your bending needs. These FH series brakes feature qualities such as: heavy duty steel clamp handles, heavy yokes, grease fittings and an apron stop rod. All Tennsmith hand brakes are proudly made in the U.S.A. and are built to exceed their 75 year reputation of quality workmanship.

Features:

Leveling screws and lock nuts on the pedestals
Jack screws and tensioner bolts on the apron, base, and upper leaf
Removable apron angle permits tight reverse bends
A replaceable nose bar and apron insert

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.6mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 96
•Max Lift Of Beam (inches): 2.25
•Front To Rear Adj (inches): 1-3/8
•Min Reverse Bend (inches): 0.25
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 97
•Weight (pounds): 1650
•Dimensions (LxWxH): 140 x 52 x 60
