Mittler Bros. 36 inch Bead Roller - Restoration Kit

Part #: 200-36NV-K
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,840.00
Sale Price: $2,700.00

BEST SELLER

36 inch throat depth
Fabricated steel construction
16 gauge mild steel, .063 aluminum capacity
Variable speed foot pedal control and max speed dial
Includes bead roller, 6 rolls, pedestal

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

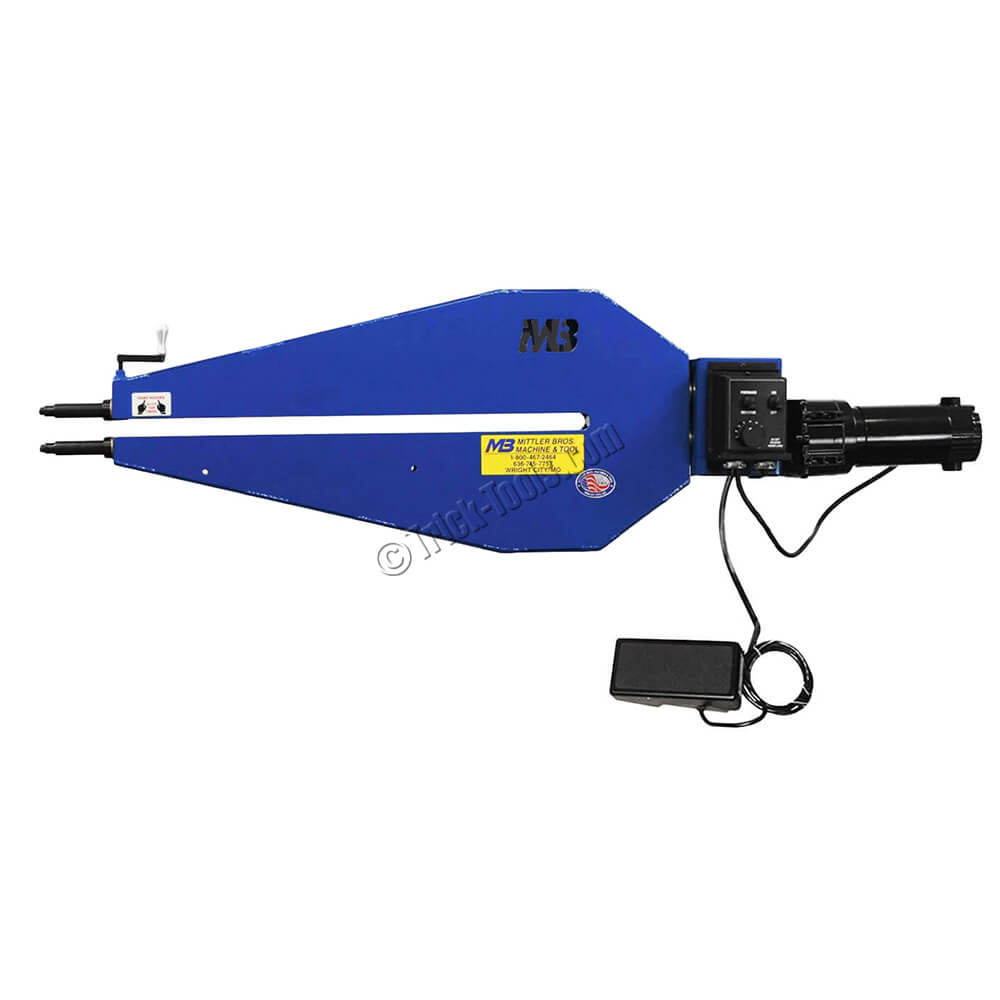

The Mittler Brothers 36 inch Industrial Bead Roller Pro Racer and Restoration Kit is perfect for rolling beads in large panels on hot rods or race car applications. The heavy duty frame built from plate steel is the strongest in the industry. Utilizing 3/4 inch heavy duty shafts, and hardened drive gears, this bead roller is built to handle the toughest jobs.

The machine features a variable speed foot pedal control with a reversible 110 volt motor. Capacity is rated at 16 gauge (.059) steel and .063 aluminum. The motor is also equipped with a speed range adjustment dial, which allows the operator to limit the maximum speed of the bead roller motor.

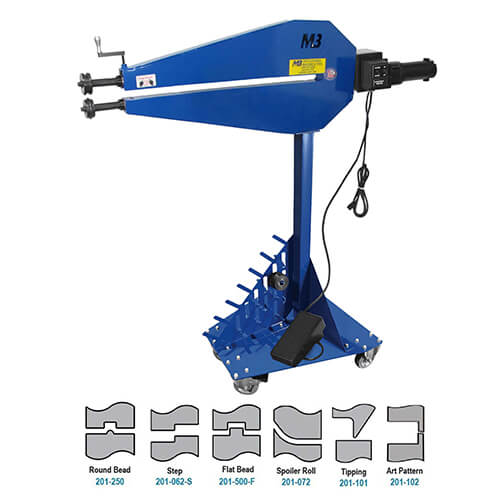

This bead roller deluxe kit includes: a 1/4 inch round bead roll, 1/16 inch step roll, 1/2 inch flat bead roll, a spoiler bead roll set, a tipping roll set, and an art pattern roll set. It also comes with a rolling pedestal with built in roll storage rack. Mittler Bros offers the largest selection of bead roll sets on the market today (see the Accessories tab).

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Steel Capacity (inches): .059 (16 gauge)
•Aluminum Capacity: .063
•Stainless Capacity (inches): .038 (20 gauge)
•Throat Depth (inches): 36
•Throat Height (inches): 1-1/8
•Motor: 1/8 hp 110 volt
•Construction: steel
•Dimensions (LxWxH): 59 x 9 x 54
