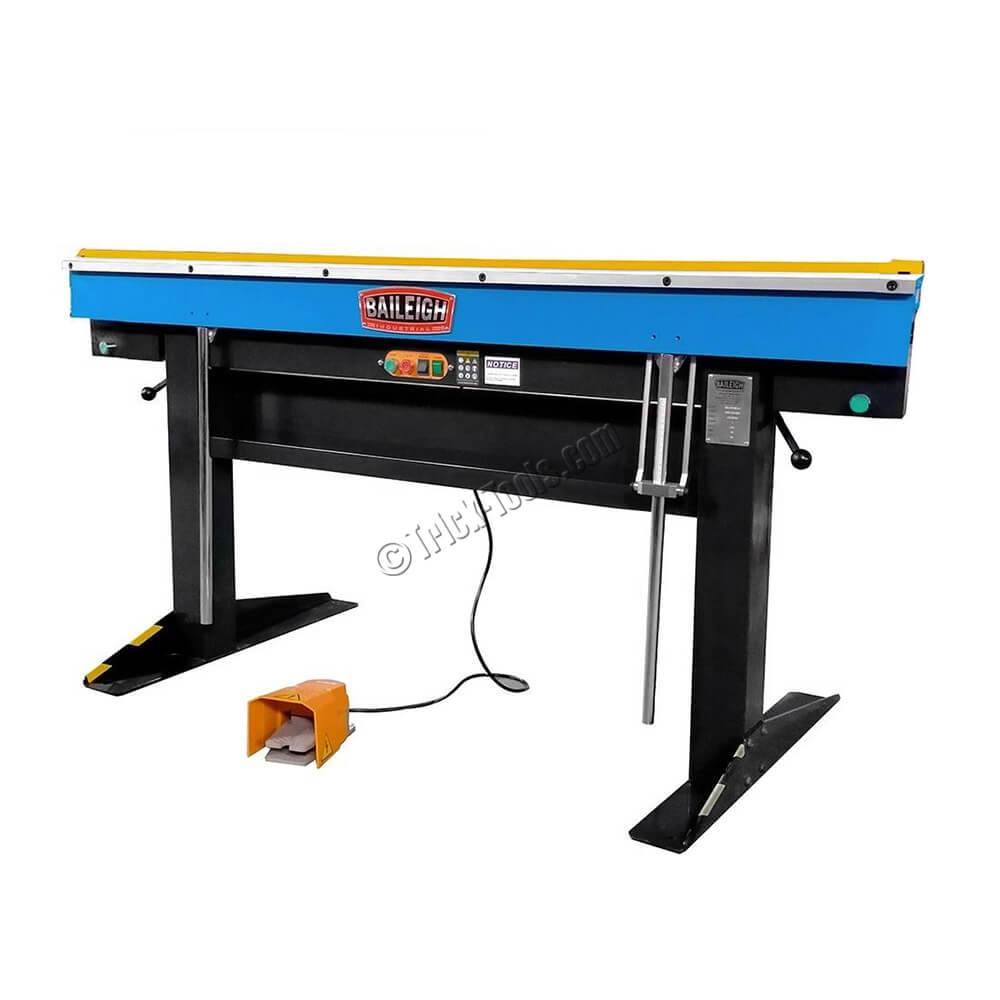

Baileigh 6 foot Magnetic Sheet Metal Brake, 16 gauge

Part #: BB-7216M-V2
Model: BA9-1231890
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $12,076.79
Sale Price: $9,829.99

FREE SHIPPING

6 tons of magnetic pull across entire beam
72 inch 16 gauge mild steel capacity
Back gauge for repeatability

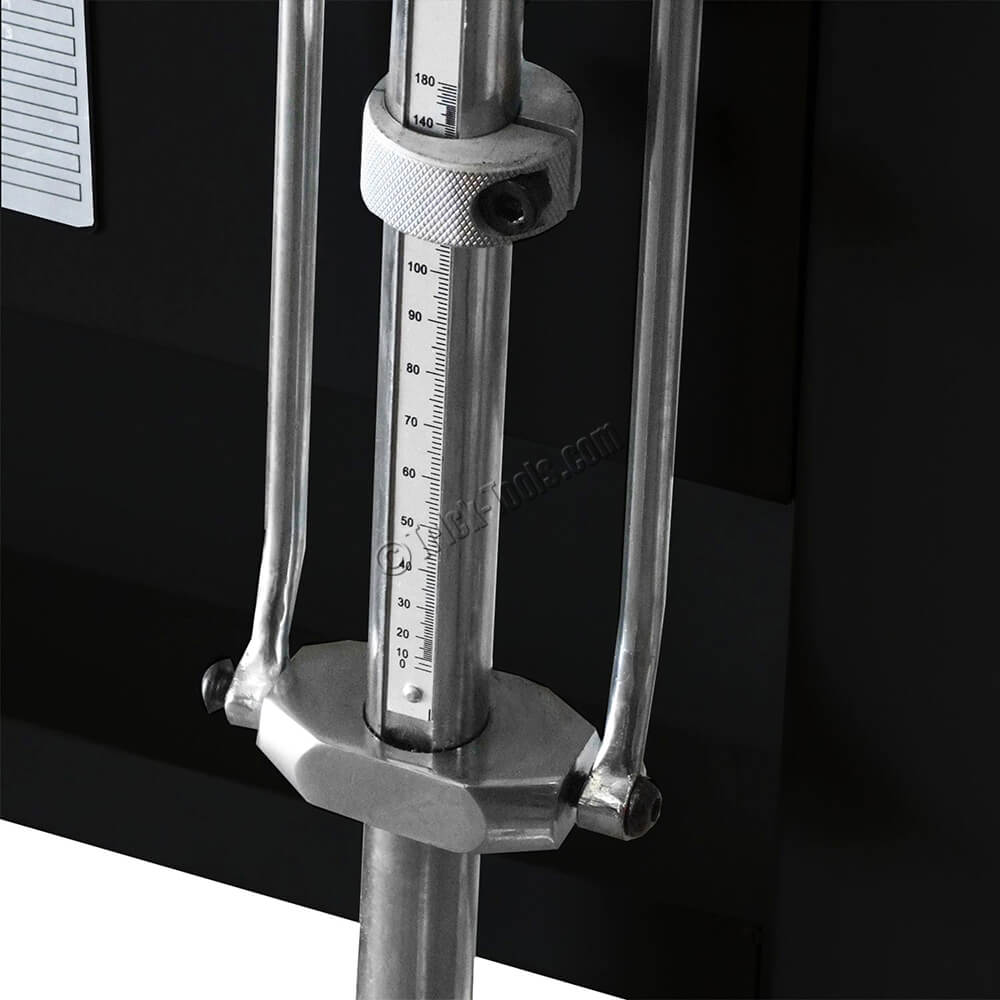

Bend angle gauge for precise bends

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The BB-7216M magnetic sheet metal brake is a unique box and pan brake that has nearly endless bending possibilities when compared to most conventional sheet metal brakes. Since it is not reliant on conventional finger depths, this brake can form boxes to almost any depth. A scaled stroke angle control can be set for repeatable bends time after time. It also includes a back gauge and a clamping bar with simple to use gap adjustments for different material thicknesses.

Features

6 tons of magnetic pull across entire beam
5/8 inch minimum reverse bend
72 inch 16 gauge mild steel capacity
220 volt 1 phase
Rugged, simple construction, requires little maintenance
Back gauge for repeatability
Bend angle gauge for precise bends

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: magnetic
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 72
•Max Depth Of Box (inches): unlimited
•Max Lift Of Beam (inches): unlimited
•Front To Rear Adj (inches): 1/8
•Min Reverse Bend (inches): 5/8
•Finger Nose Angle: 67.5
