Baileigh RDB-250 Programmable Tubing Bender Deluxe Kit

Part #: RDB-250-Deluxe
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $20,877.92
Sale Price: $17,046.99

FREE SHIPPING

2-1/2 inch OD capacity
Electric planetary gear drive
Includes indexing table
Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The RDB-250 tubing bender is a programmable machine that can bend up to 2-1/2 inch tubing and 2 inch schedule 40 pipe. The touch screen control allows up to 170 programs with as many as 10 bends per program. Save parts with your desired name or part number and recall at any time. All bend data, including bend angle, speed, and quantities, as well as length and rotational stops, can be stored in the memory.

The RDB-250 rotary draw tube bender can bend at speeds up to 9 seconds for a 180-degree bend with 6 speeds to choose from. Bend angles can be programmed up to 360 degrees with a universal bend plate attachment. A numerical readout on the counter bend die makes repositioning and repeatability a breeze when creating multi-bend parts while the quick counter-die release allows for easy removal of tubes. For one-off or prototype parts, choose manual mode for creating bends as simply as pressing the forward or reverse foot pedal.

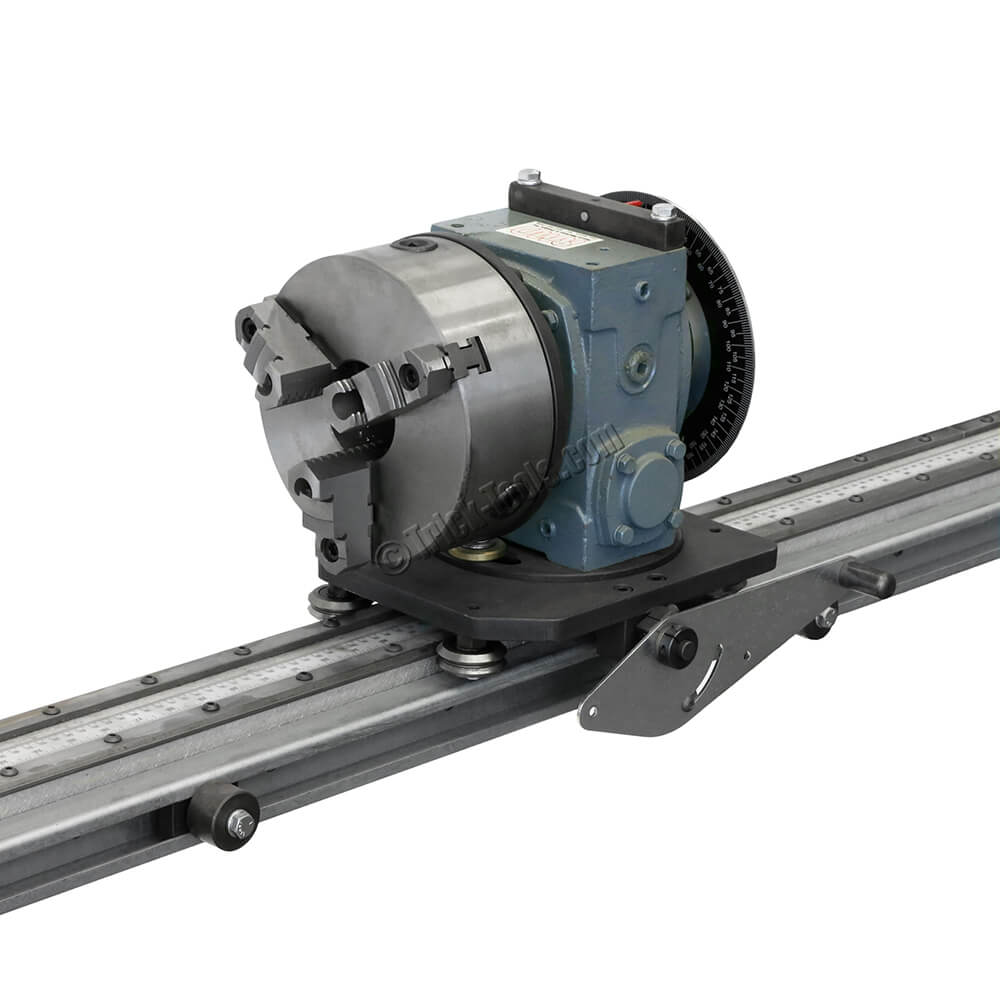

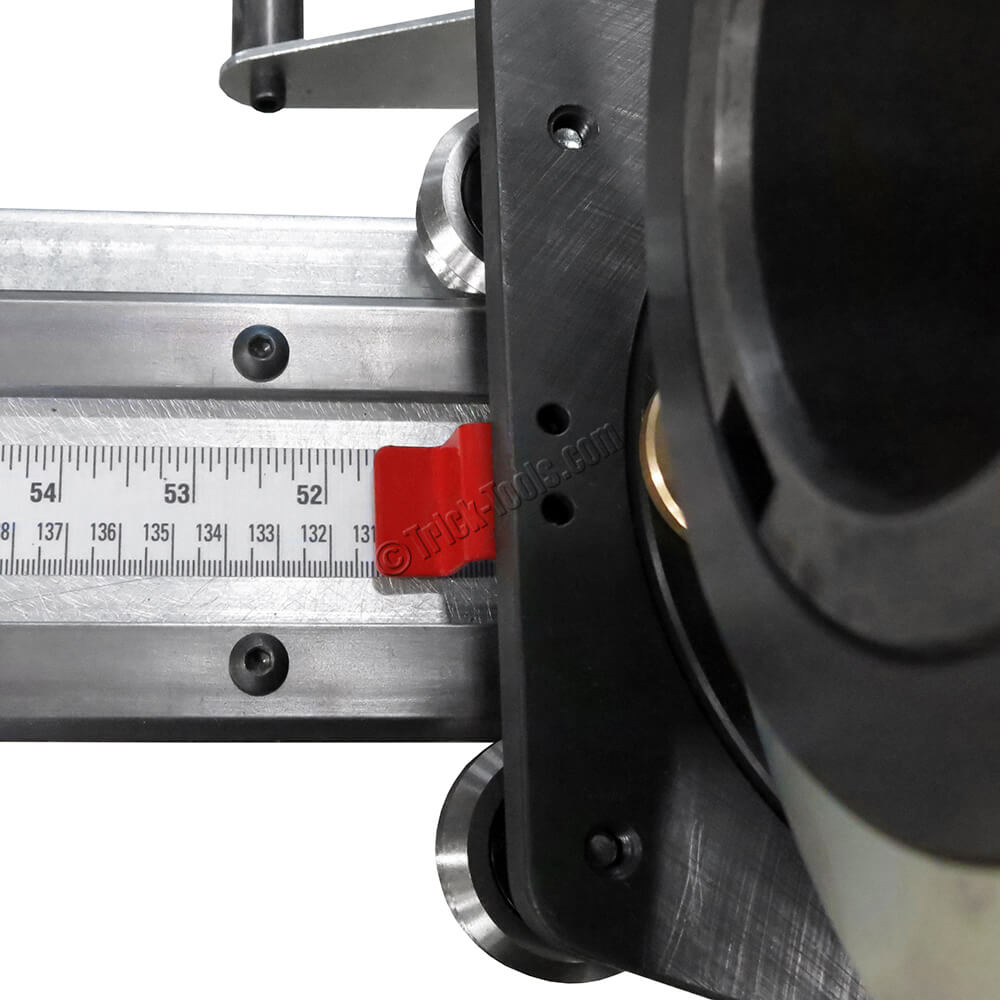

Included in this deluxe kit is the popular indexing table that is available in 5, 10, 15, and 20-foot lengths. The indexing table assists in producing accurate bends in varying planes, as well as consistent measurements between bends. The positioning carriage is available with a 3 jaw chuck for round material, or a 4 jaw chuck for square and round materials. The carriage rolls on a precision V-block rail and rides the rail using V-block bearings. The positioning carriage chuck can hold material from 1/4 inch to 4-1/2 inch OD and features a hand wheel for adjusting tube rotation. The table rail also features a linear indicator strip for setting accurate distances between each of the 4 included mechanical stops. The RDB-250 Deluxe kit is the ultimate tube bending package for chassis shops and production settings where part to part accuracy and cycle times are key for your job's bottom line.

Dies are sold separately

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Chrome Moly Capacity (inches): 2 x .120
•Round Aluminum Capacity (inches): 2-1/2 x .156
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•Minimum OD (inches): 1/4
•Max Bending Speed: 9 seconds to 180 degrees
•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 9
•Max Degree of Bend: 180
•Motor: 2 hp, 220 volt, 1 phase
•Control Method: programmable on board computer
•Maximum OD (inches): 2-1/2

INCLUDES

RDB-250 Programmable Tubing Bender
Indexing Table
3-Jaw Chuck
Tooling sold separately (see Accessories tab for tooling packages and a list of available dies)
