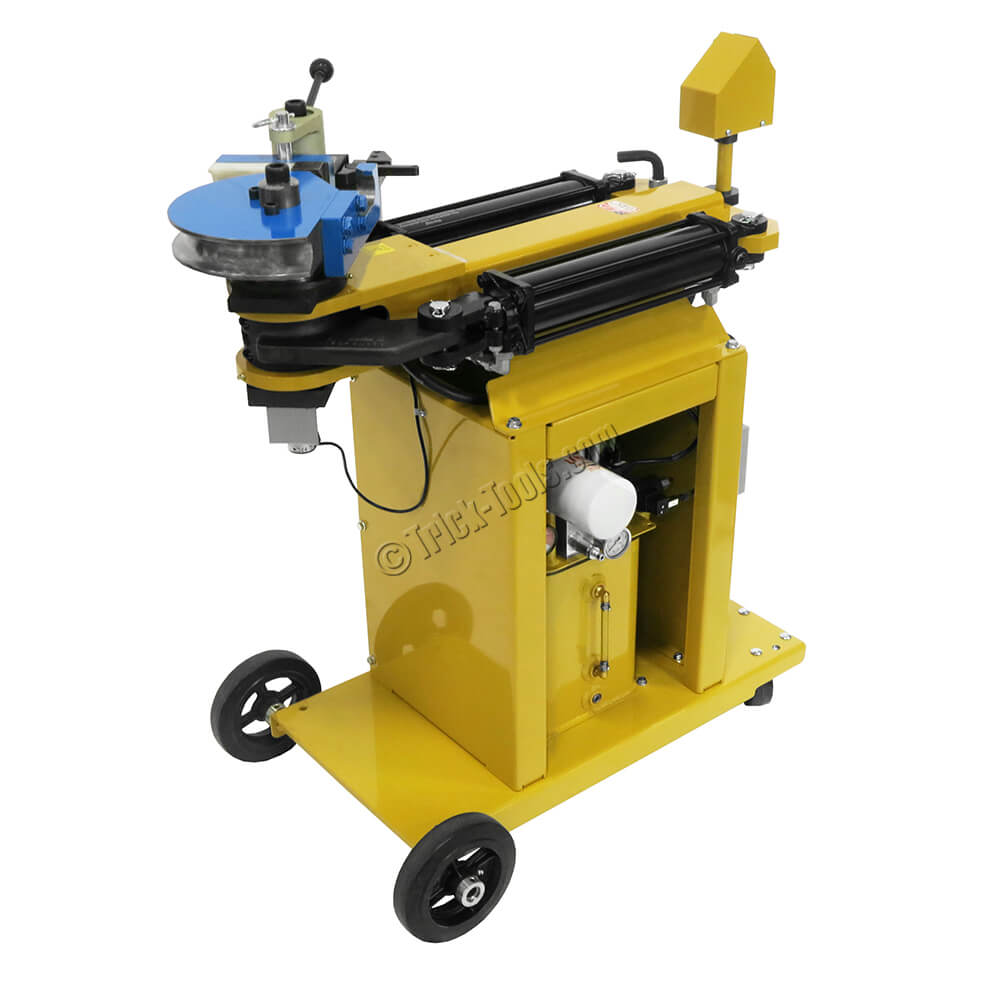

Baileigh RDB-175 Hydraulic Tubing Bender

Part #: RDB-175
Model: 1006785
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $11,032.59
Sale Price: $8,979.99

FREE SHIPPING

2-1/2 inch OD capacity

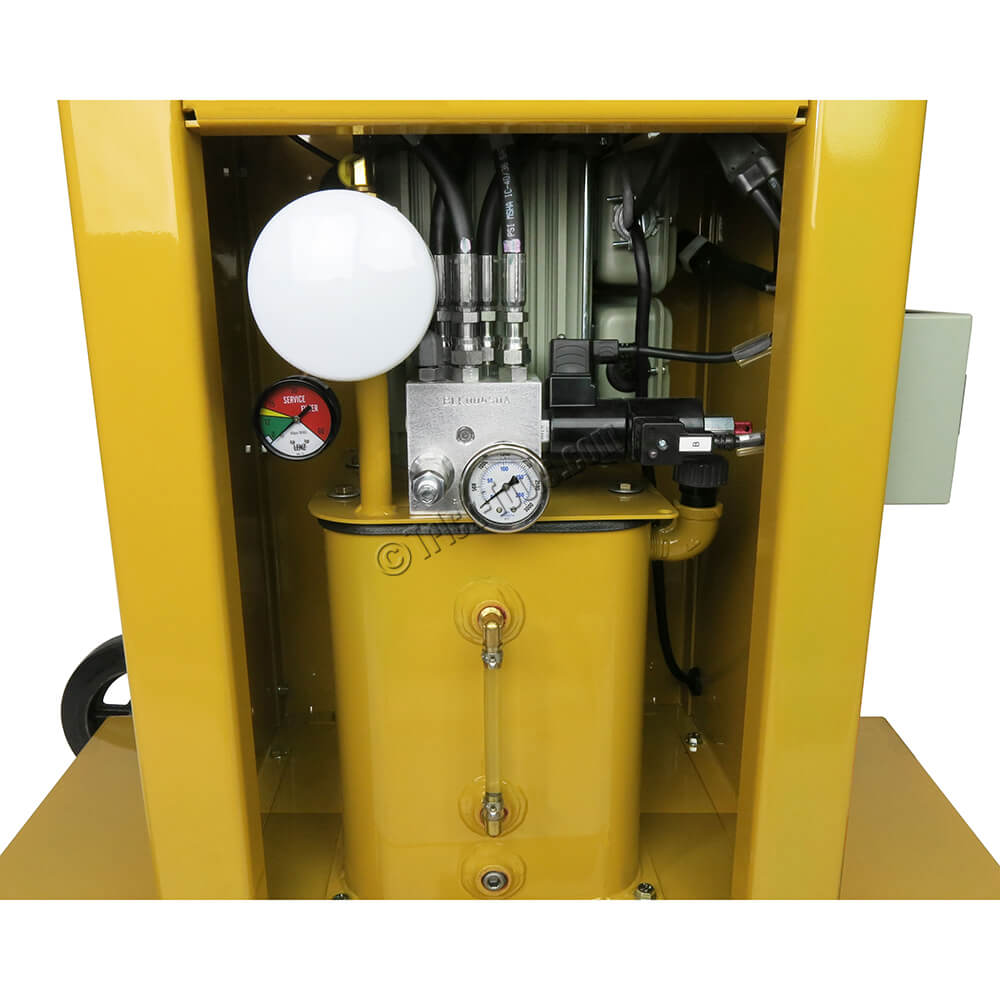

Electric/hydraulic power
Auto-stop
180 degree bends in one shot

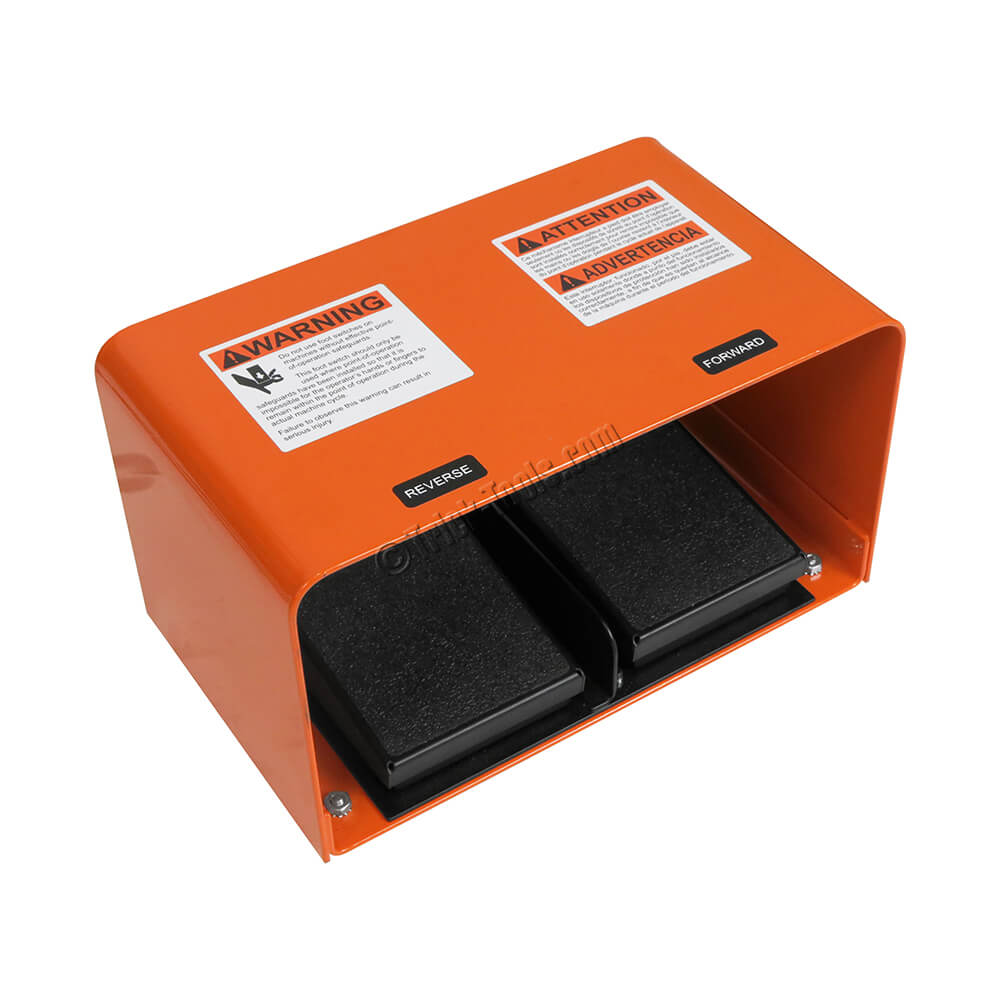

Foot pedal controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The RDB-175 tube and pipe bender features a new programmable bend interface, foot pedal controls, quick tooling changes and a large 2-1/2 inch OD bending capacity. The RDB-175 is very fast; with a unique dual hydraulic ram design it can make 180 degree bends in as little as 12 seconds.

With tooling available for round, pipe, and square materials the RDB-175 is one of the most flexible, fast, and repeatable benders on the market today.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Chrome Moly Capacity (inches): 2 x .120
•Round Aluminum Capacity (inches): 2-1/2 x .156
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•Minimum OD (inches): 1/4
•Degrees Per Stroke: 180
•Max Bending Speed: 12 seconds to 180 degrees

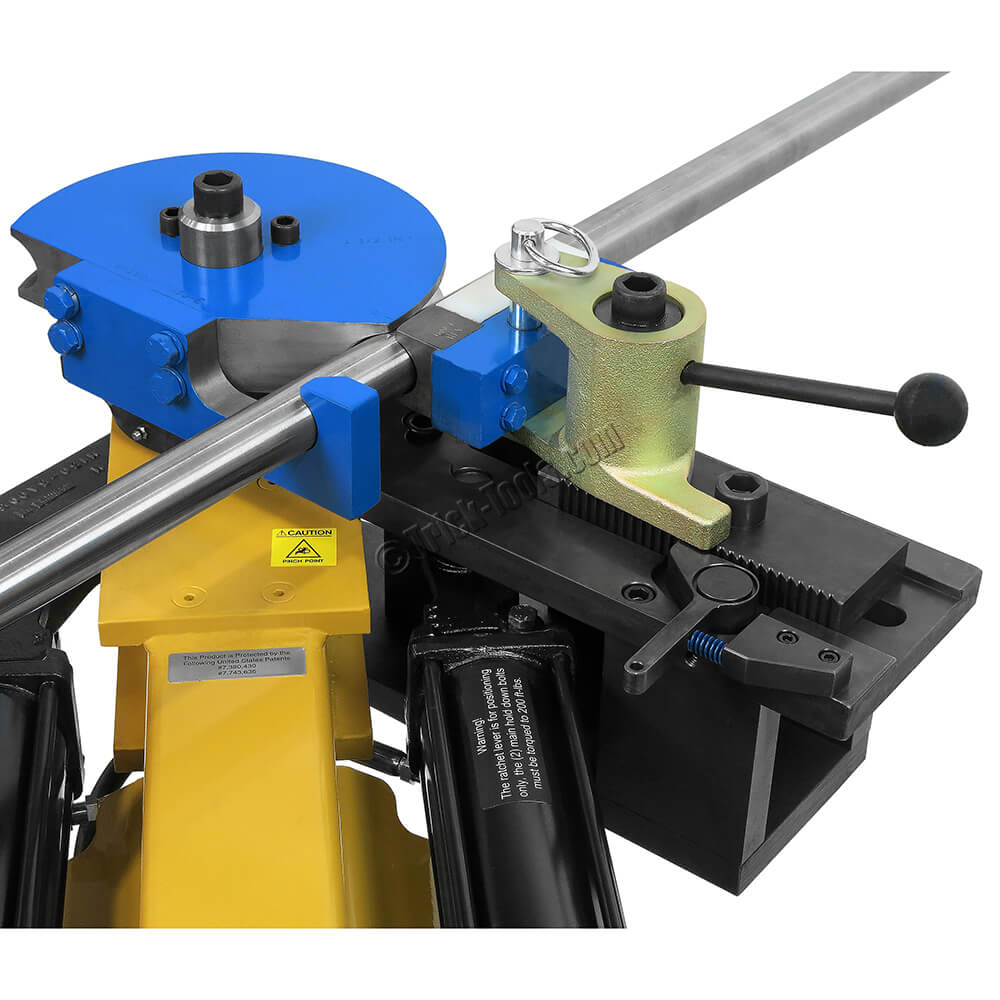

•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 9
•Max Degree of Bend: 180

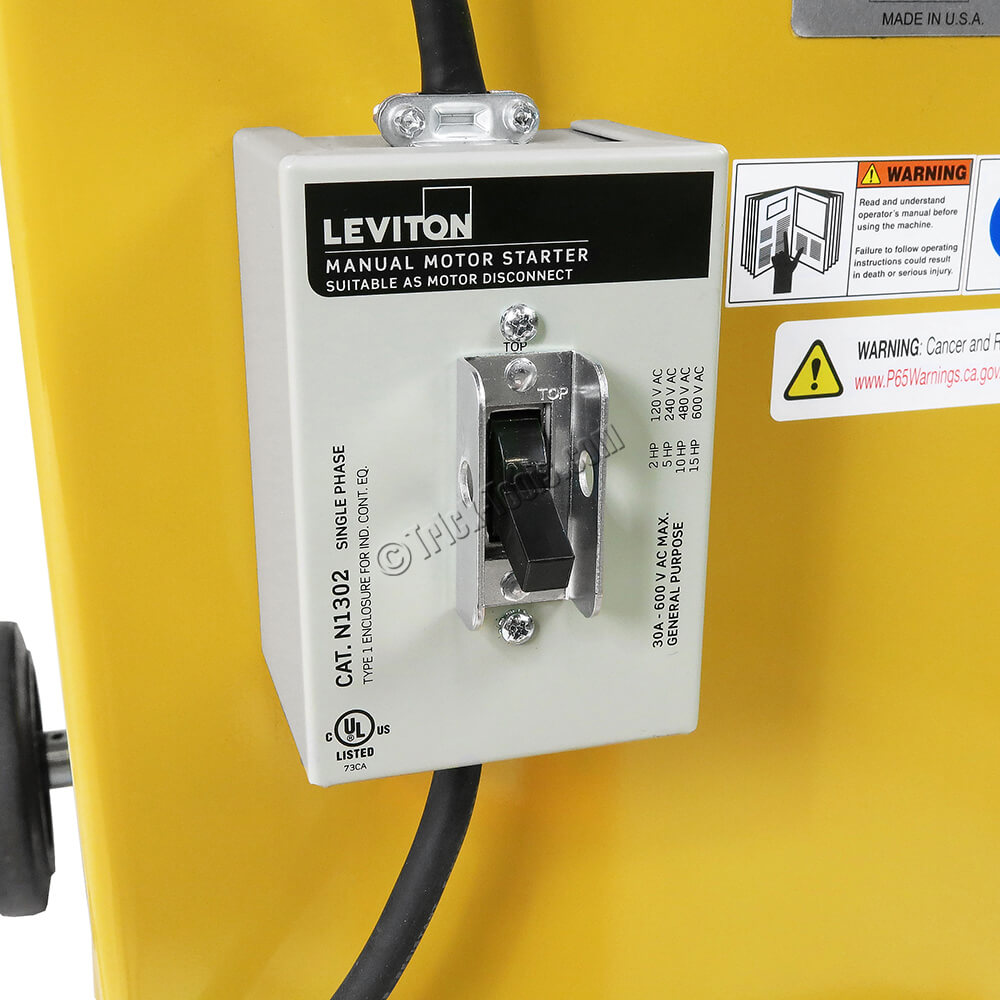

•Motor: 110 volt
•Control Method: foot controls

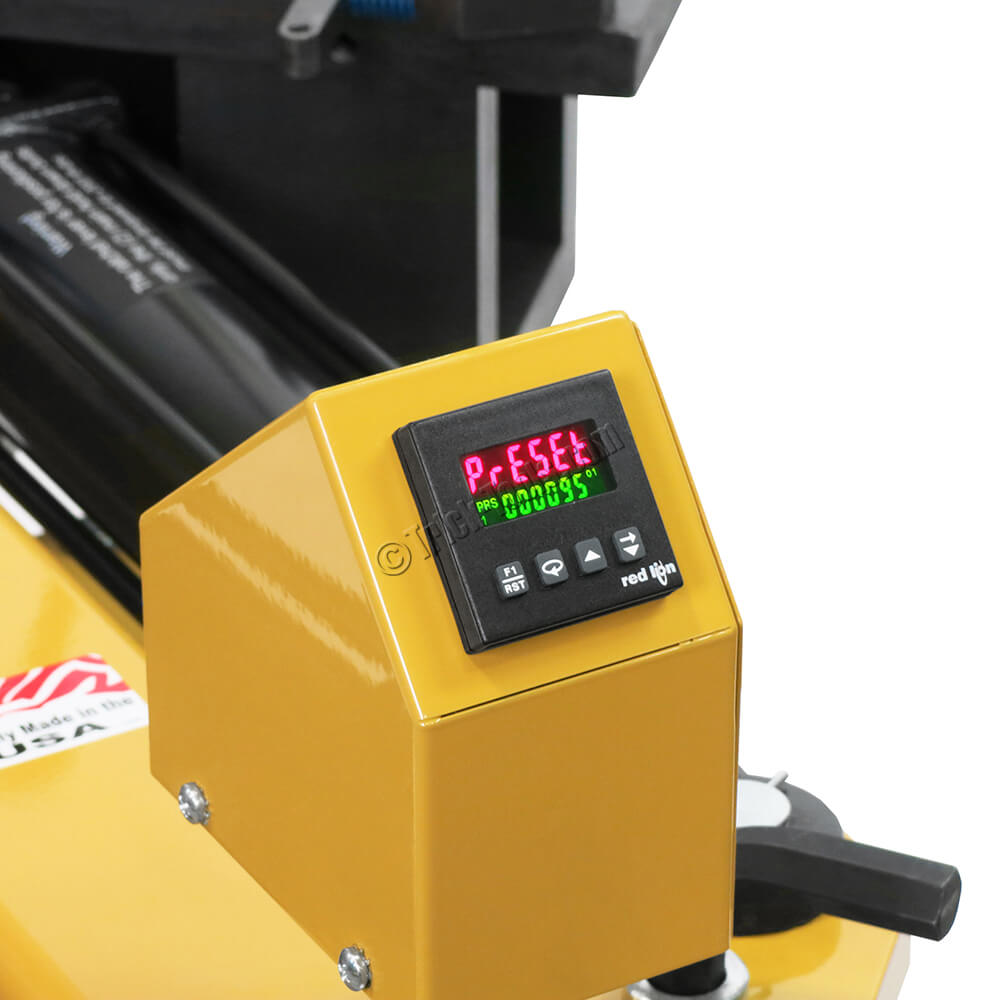

•Repeatability Control: programmable auto-stop
•Maximum OD (inches): 2-1/2
•Weight (pounds): 630
