Pro-Tools Industrial Hole Saw Tube Notcher

Part #: HSN-501i
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $249.95
  • Capacity of 3/4 to 2 inch OD
  • Angles up to 60 degrees
  • Rigid bearing block with ball bearings
  • Adjustable offset vise
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

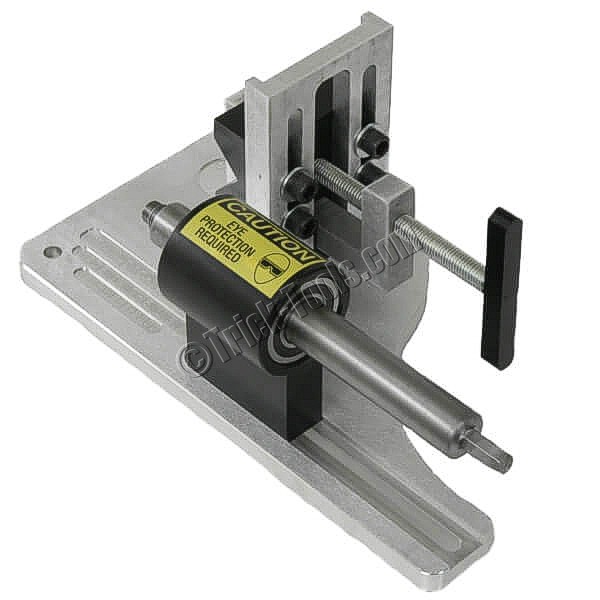

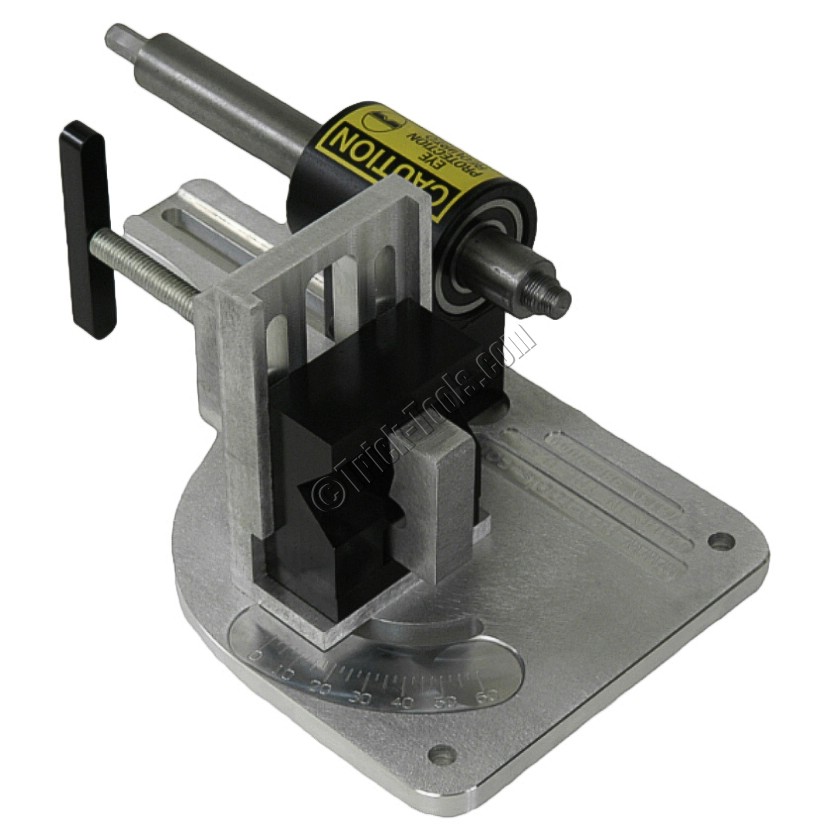

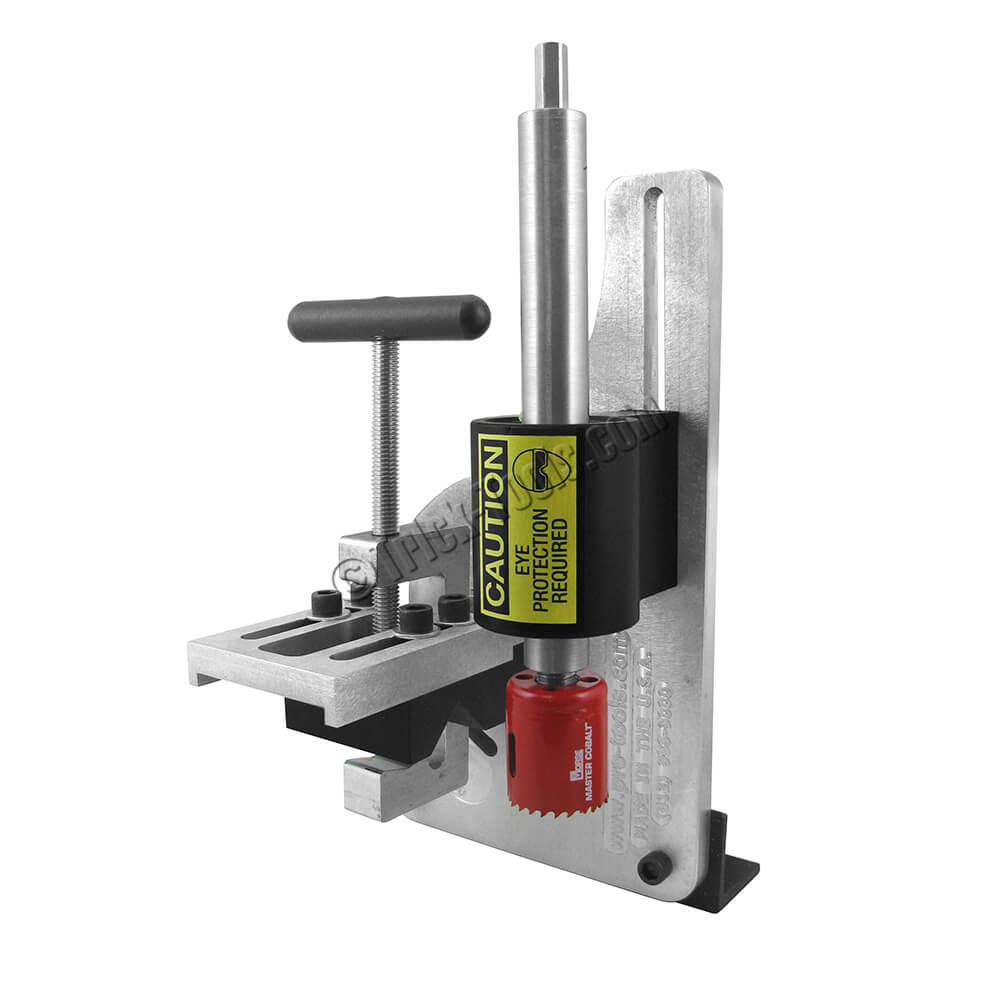

The Pro-Tools HSN-501i heavy duty hole saw notcher is an upgraded version of the standard HSN-501. Built around a heavy duty 1/2 inch thick aluminum base plate with a 1 inch diameter shaft supported on sealed ball bearings, this is one heavy-duty notcher! This Pro-Tools notcher will handle 3/4 through 2 inch diameter tubing at angles up to 60 degrees, and uses regular bi-metal hole saws.

The HS-501i can be used in a drill press or attached to a table and used with a standard 1/2 inch drive hand drill. This tube and pipe notcher also has an adjustable vise for offset notches - a feature not found on other drill press mounted notchers!

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Size(s): requires minimum 16 inches of chuck to table height on drill press
Max Notch Angle: 60 degrees
Max Diameter: 2 inch
Min Diameter: 3/4 inch
Weight (pounds): 19
Dimensions (LxWxH): 5.25 x 7.5 x 13

INCLUDES

  • Notcher
  • Drill press mounting bracket
  • Hole saws sold separately
