Huth 2806 Bender

Part #: HB2806
Model: 2806, HB2806
Ships From: Factory shipped

Lead Time: Usually ships within 6-8 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $13,124.50
Sale Price: $12,468.28

FREE SHIPPING

3 inch OD capacity
Built-in swager/expander
Auto-stop for repeatable bends
Hands-free controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

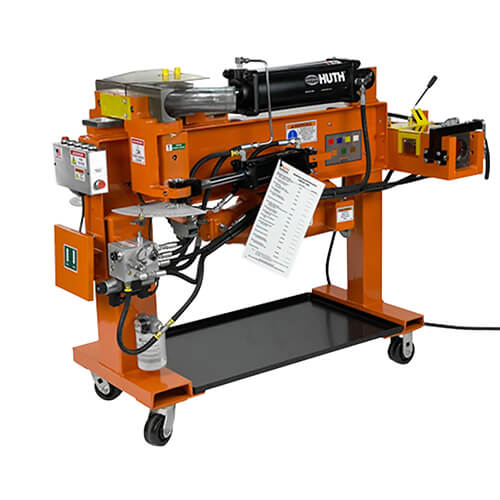

The Huth 2806 bender is designed for high volume shops that need quick, precise, bending and end forming. It offers the convenience of a knee pedal control and a compact control panel. This allows the operator to get closer to the work area for more precision and less fatigue. The 2806 bender includes agricultural grade hydraulics and a flat tooling tray at the base of the machine. The Smart Automatic Mode features an adjustable return-to–home position control. This unique, time saving feature increases efficiency by assuring fast and easy transitions between multiple bends. In the automatic mode, the automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth of bend plate.

The standard motor is a 5 hp unit that provides 58,000 lbs of bending force. An optional 7.5 hp motor is available for 25% faster bending. The heavy duty swager/expander gives you complete end finishing capabilities. The swager end accommodates 1 inch to 3 inch tubing. The expander end allows for expansions from 1 inch to 5.5 inch. With Huth’s Accu-Sizer bull’s-eye expanding system, you can dial in precise expansions every time. Optional equipment includes a rod and bracket bender, oil filter crusher, square bending tooling, and custom end-forming tooling.

Included with the optional 028 Tooling Package Kit:

5 inch Radius dies for 2, 2-1/4, 2-1/2 and 3 inch material
4 inch Radius dies for 2 and 2-1/4 inch material
3 inch Radius dies for 1-1/2 and 1-3/4 inch
Full back shoes for 1-1/2 through 3 inch material
Half shoes for 1-1/2 through 2-1/2 inch material
Clamping collets for 1-1/2 inch through 2-1/2 inch material
Flare Tool
1-3/4 to 2-1/2 inch Domer Die
2-5/8 to 2-3/4 inch Domer Die
1-3/4 to 2 inch Female ball Die
2-1/4 to 2-1/2 inch Female Ball Die
Male Ball Die 1-3/4 inch : Swage 2 inch
Male Ball Die 2 inch : Swage 2-1/4 inch
Male Ball Die 2-1/4 inch : Swage 2-1/2 inch
Male Ball Die 2-1/2 inch : Swage 2-3/4 inch
1-1/2 inch Swage die
1-3/4 inch Swage Die
Arbors, Tips, and Expanders for 1-3/8 to 3 inch material
Extra O-rings
Die Spring
Die Holder
Instructional Video

Tooling package sold separately

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 3 x .083
•Round Aluminum Capacity (inches): 3 x .083
•Nominal PIPE Capacity: 1-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 2-1/2 x 14 gauge
•Minimum OD (inches): 1/2
•Bending Style: ram-style
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 5
•Motor: 5 hp, 220 volt, 3 phase
•Control Method: knee control
•Repeatability Control: auto-stop
•Maximum OD (inches): 3
•Dimensions (LxWxH): 87 x 52 x 36
